Factory · Shenzhen, China

Six steps.
One roof.

SMT, reflow, assembly, functional test, burn-in and packing run in one Shenzhen building. The people who answer your RFQ are the people who make the board.

Serial on every unit Batch records on request FOB Shenzhen
Ask about the line Follow a board through six stages

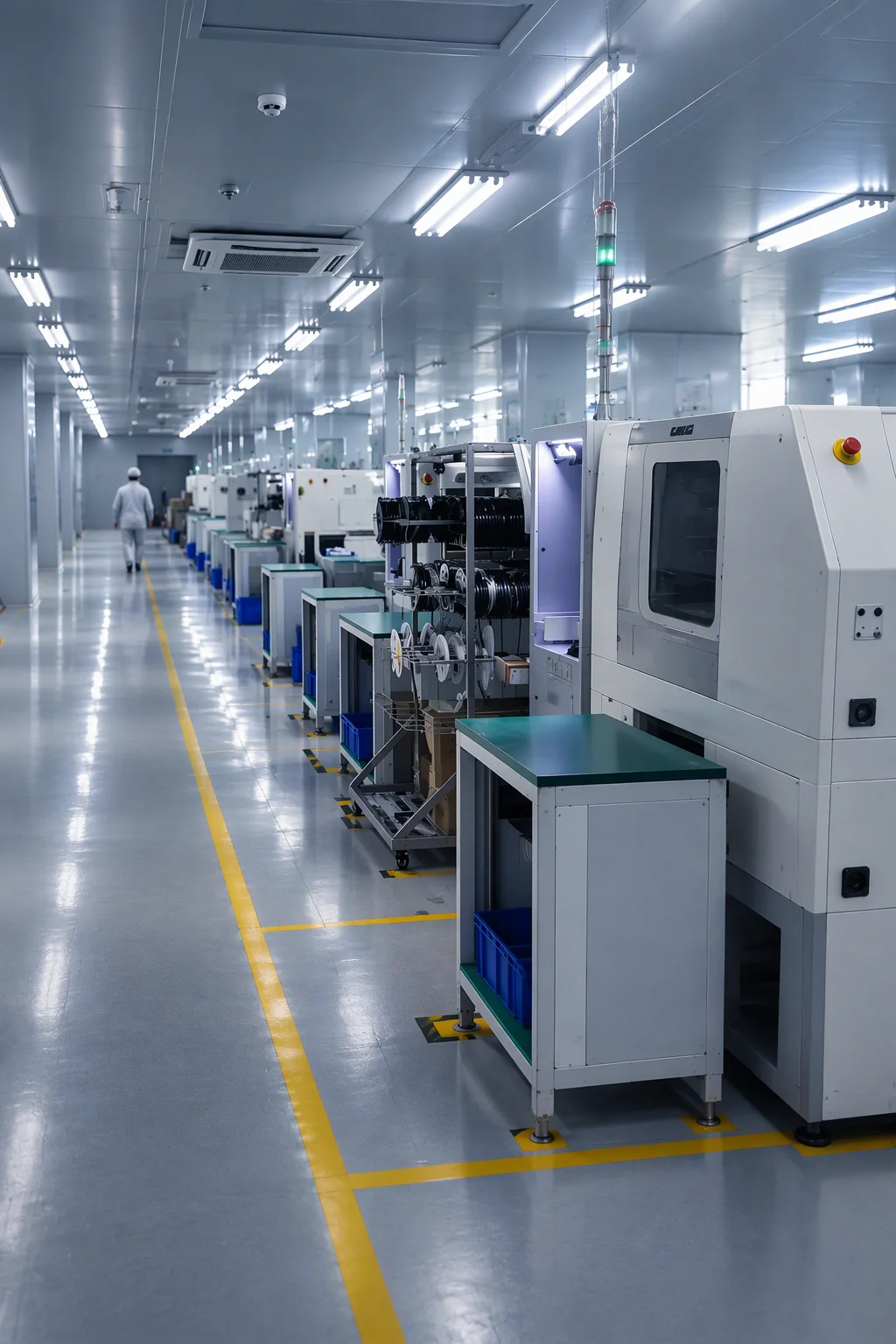

Production hall inside the GEOLiNK Shenzhen plant, with SMT lines and operator stations
Shenzhen plant One roof · six stages

01 · The flow

How a board moves through the line.

Six fixed stages, one per unit, every board serialized. There is no step between solder paste and the shipping carton that is not accountable.

Line control points

Stage 01 / first unit tested

SMT

Solder paste printing and placement on automated lines. The first unit of each build is tested before the line continues.

Stage 02 / curve per batch

Reflow

Temperature curves verified per batch against the paste and board specification.

Stage 03 / ESD stations

Assembly

Through-hole parts, heatsinks, connectors and mechanicals fitted at ESD-protected stations.

Stage 04 / every unit

Test

Model test plan: CPU, memory, displays, COM, LAN, USB, power rails and watchdog.

Stage 05 / every batch

Burn-in

Batches aged under load on 24/7 cycles, so early-life failures surface in our plant.

Stage 06 / every carton

Packing

Outgoing QC, ESD bag with desiccant, labels and batch documents for the carton.

02 · On the floor

Six stages, photographed where they happen.

Same Shenzhen hall, six rooms a board passes through, from solder paste to the ESD bag.

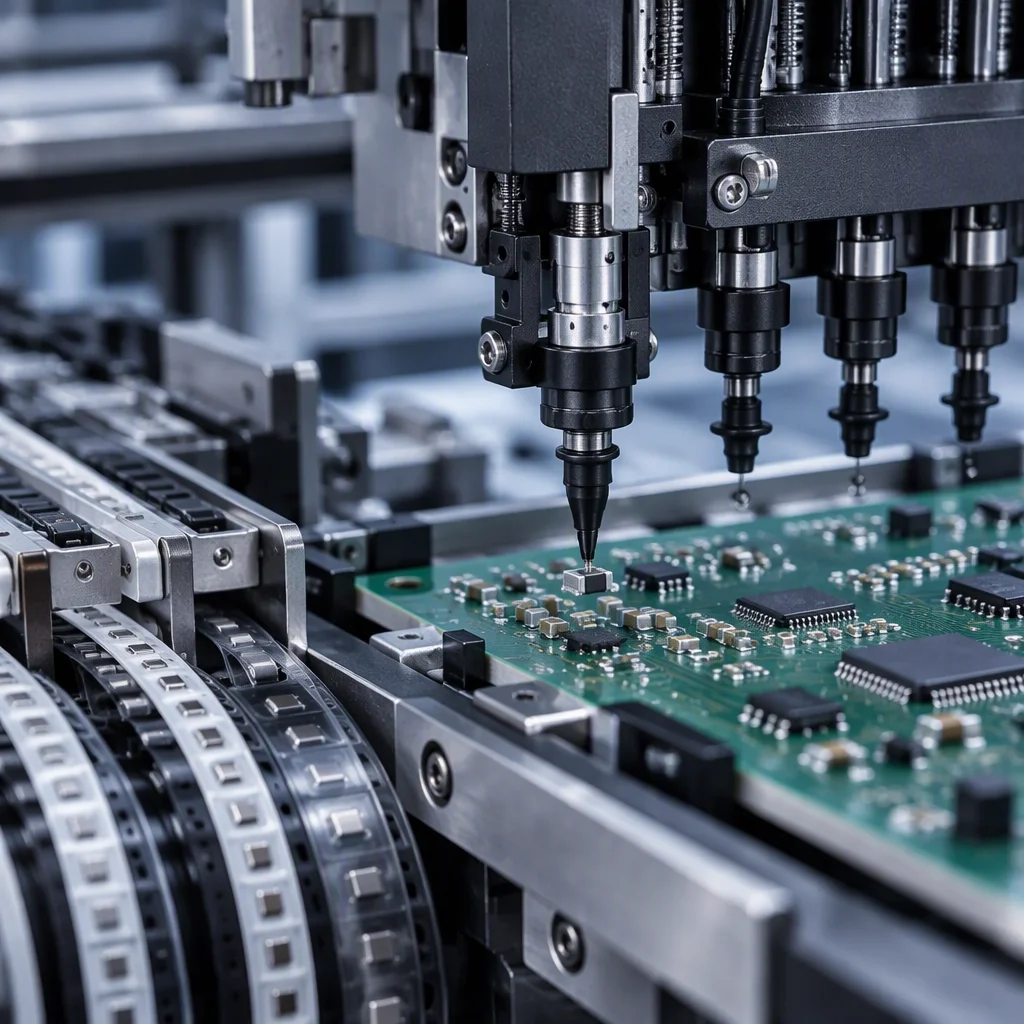

Automated SMT line with printer and placement machines
SMT

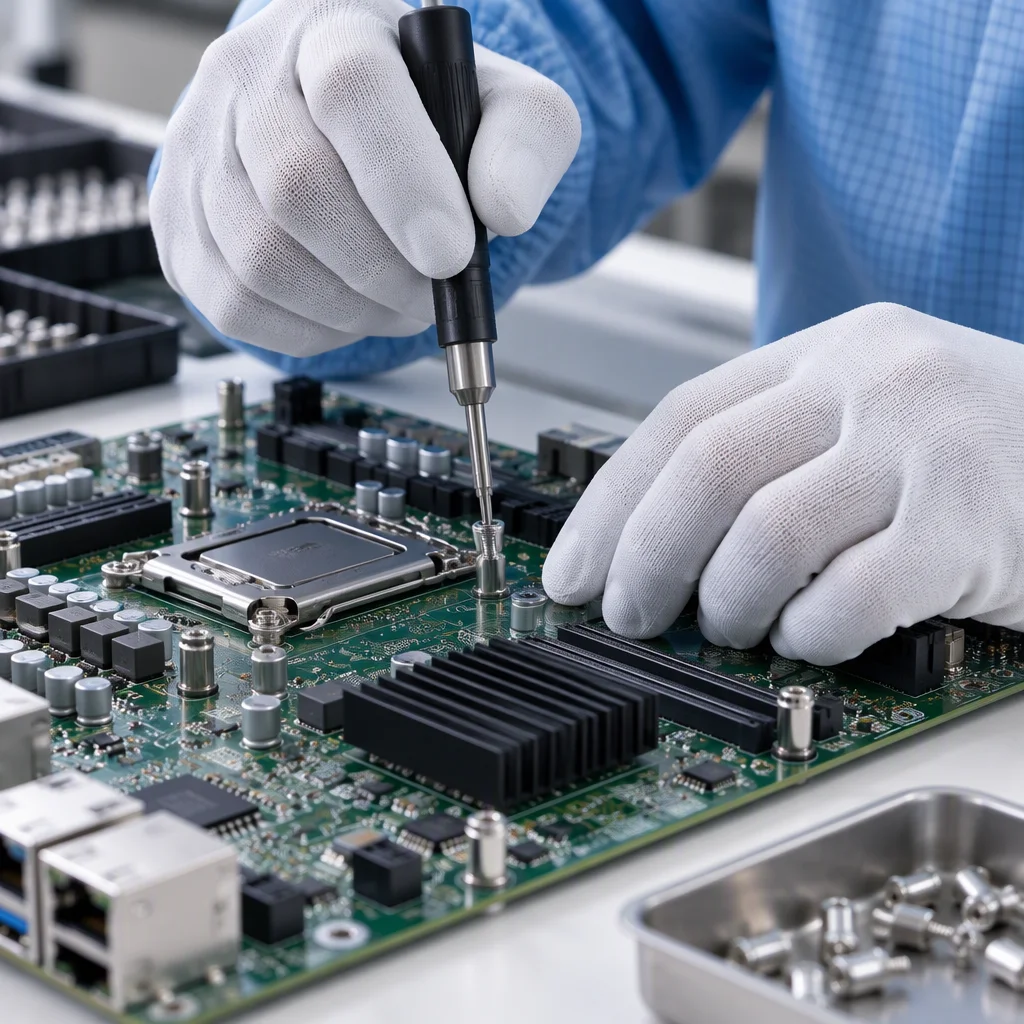

Through-hole assembly bench with ESD racks of boards
Assembly

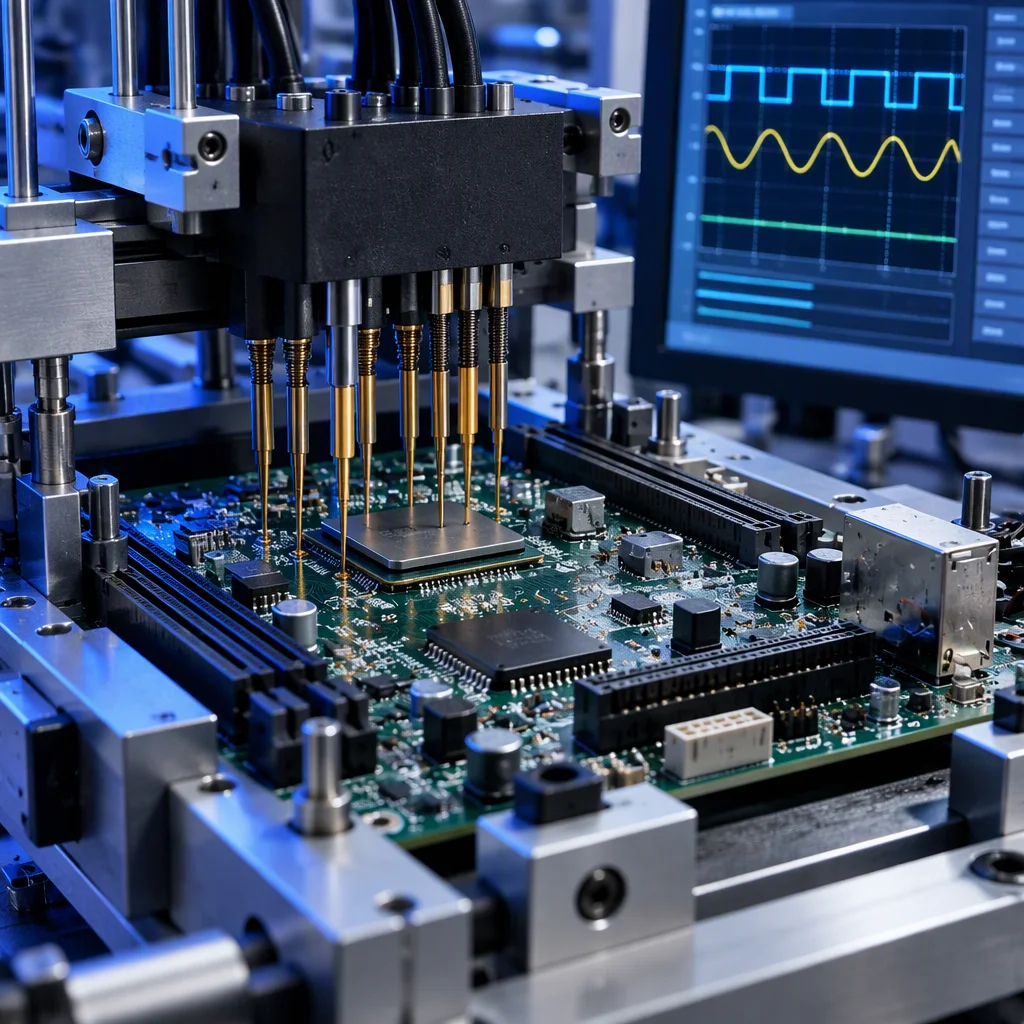

Functional test station with instruments and board stacks
Functional test

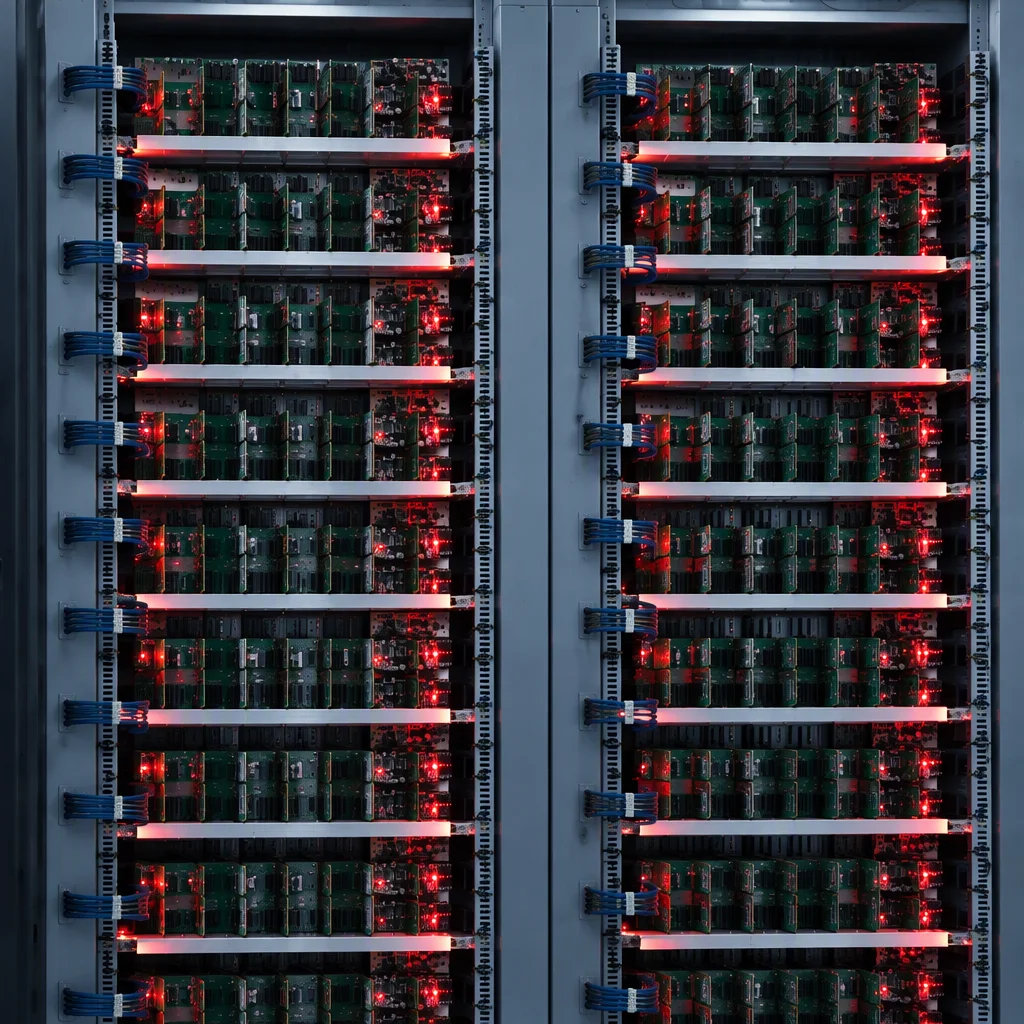

Burn-in racks with boards under load and LEDs lit
Burn-in

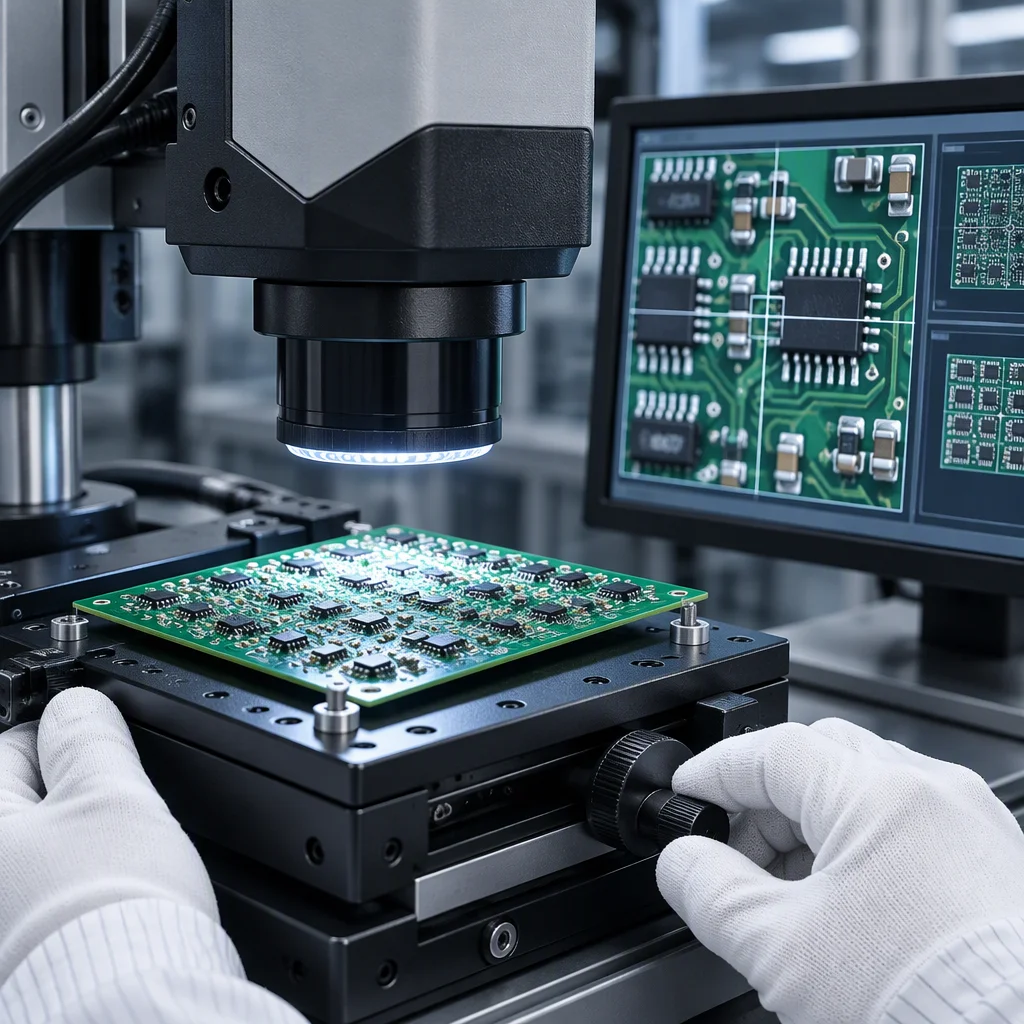

Gloved inspector checking a finished board
Outgoing QC

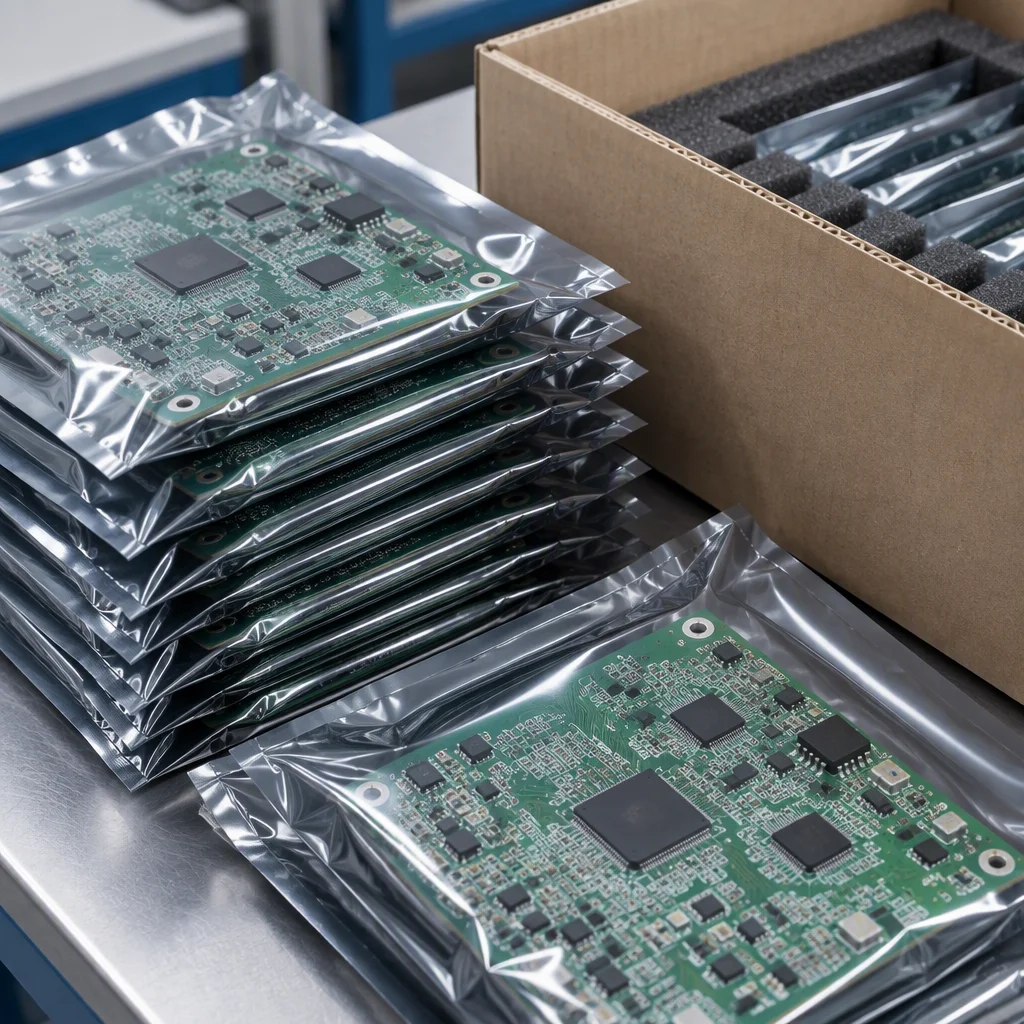

Boards in ESD trays staged for packaging
Packing

03 · Line control

What the line checks.

Equipment is described generically on purpose. The process is what we vouch for, not a brand name on a machine.

See the quality program

Six control points

Recorded per batch, per serial

Each serial links to its build batch, test results and packing date. Batch and serial records follow the board from the reel to the pallet.

Swipe to check →
Line control points at the GEOLiNK factory
Station What is checked Record
Incoming stores Component date codes, packaging integrity and BOM match Every delivery
SMT Paste print, placement and first-article functional test before the line continues First unit of each build
Reflow Profile verified against the paste and board specification Curve per batch
Assembly Through-hole parts, heatsinks, connectors and mechanicals at ESD stations Serial label per board
Burn-in Batch aged under load on 24/7 cycles Every production batch
Packing Outgoing QC: appearance, configuration against the order, BIOS settings and labels 100% of boards

Source: factory process records · serial and batch traceability

Ask for the batch record

05 · Warehouse and dispatch

Stock, kitting and export packing under the same roof.

Reels and finished boards move from the line into an ESD-safe store, then into kitted, labelled export cartons. The dispatch desk works from the same batch record as the line.

01ESD store

Reels and finished boards are held in antistatic shelving next to the line, date-coded and rotated oldest first.

02Kitting

Model, accessories and paperwork are kitted per order before the carton is sealed.

03Export packing

Boards ship in ESD bags and foam, with the packing list and batch record matched to the invoice.

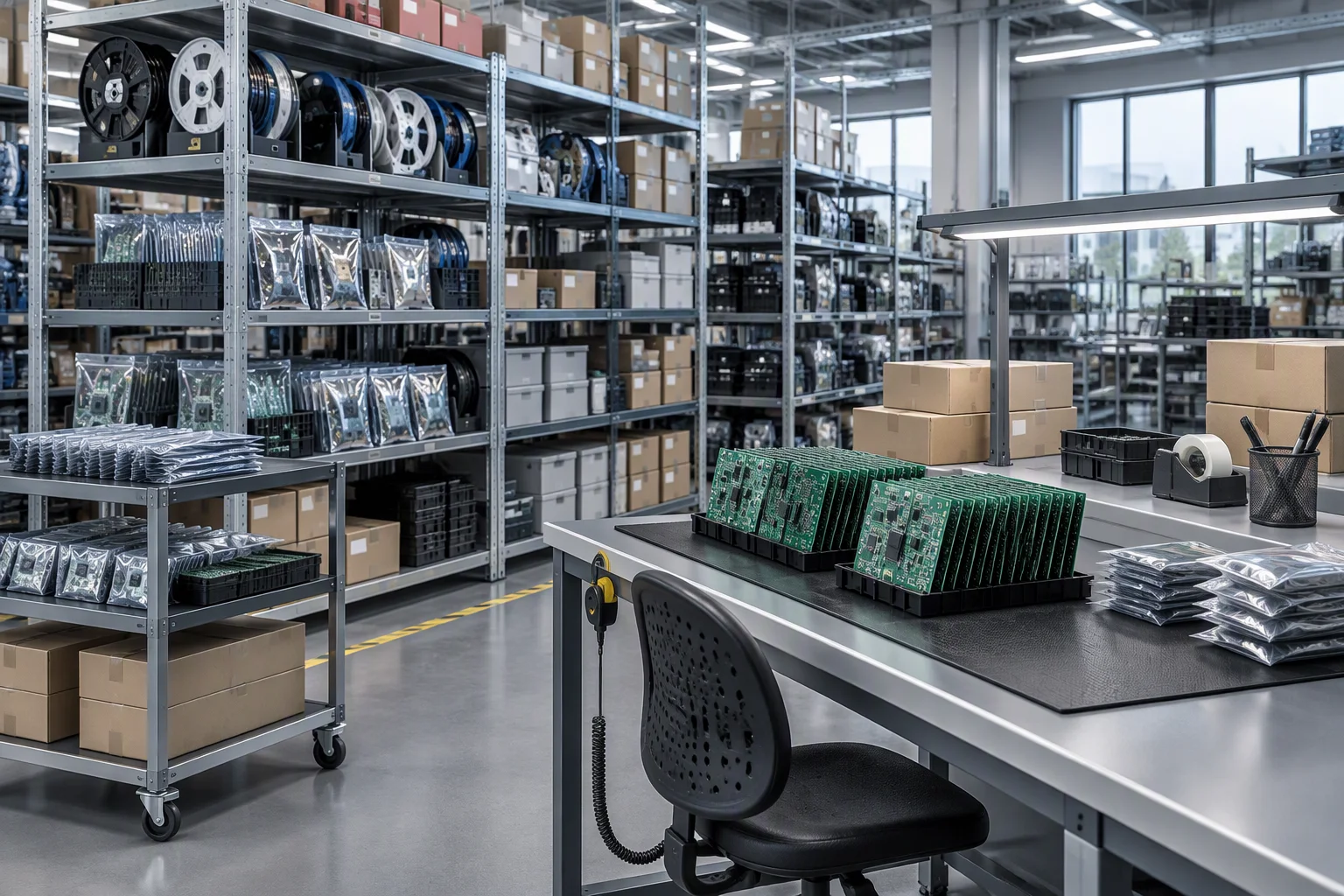

ESD-safe warehouse with reels and packed boards at the GEOLiNK factory

Start a project

Ask for the batch record with your order.

Specify your acceptance criteria in the RFQ. We build the test plan around them, from a single sample to a full production run.

Request a quote Read the quality program
Sample MOQ 1 pc Serial and batch records FOB Shenzhen
