170 × 170 mm · 7 models · 2026 catalog
Mini-ITX industrial motherboards
The full-width industrial workhorse. Seven models span desktop-class LGA1700 Core, 28W Core Ultra and AMD Phoenix Ryzen, with up to 96 GB DDR5 and dual 2.5G Intel LAN on one board.
01 · Why 170 × 170 mm
What the extra 50 mm buys you.
A 3.5-inch board fits a box. A 170 × 170 mm board fits a chassis, an add-in card and the spares shelf the line already stocks.
Values per the English specification sheets · standard configuration shown where a board offers a jumper or SKU choice
02 · The lineup
Seven boards, one standard.
All seven 170 × 170 mm models. The difference is the silicon at the centre and the panel path it feeds.
Compare the familyITX660B
LGA1700 12-14th Gen · 65W LGA1700 65W DDR5 64GB PCIe 4.0 x16 Desktop-class Core, PCIe 4.0 x16 and a quad display with dual DP 8K.
02

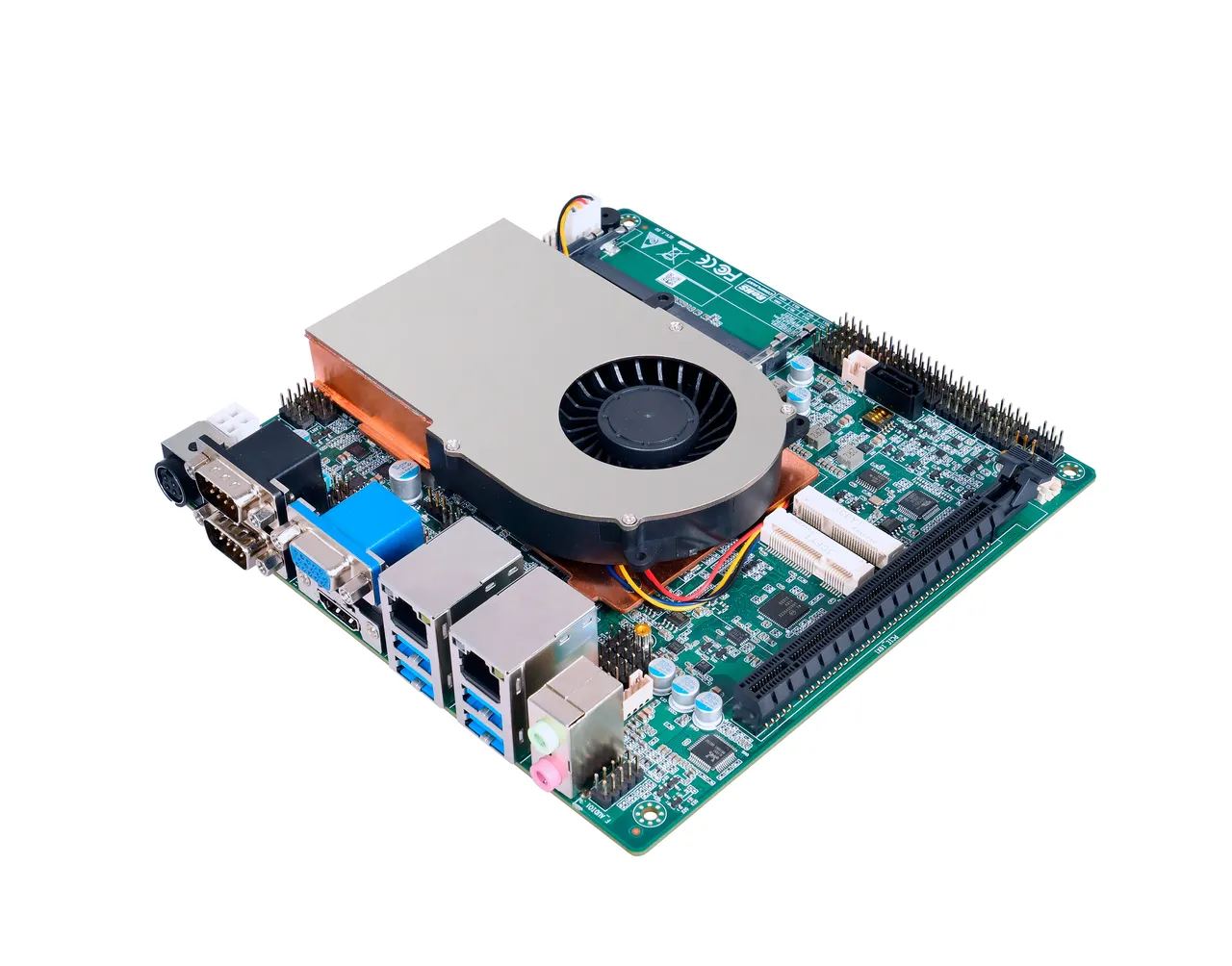

ITXD20B
Phytium D2000/8 · 40W 8-core 2.3GHz DDR4 64GB 2× CAN Domestic 8-core SoC with six COM, RS232/485 and two CAN channels.
03

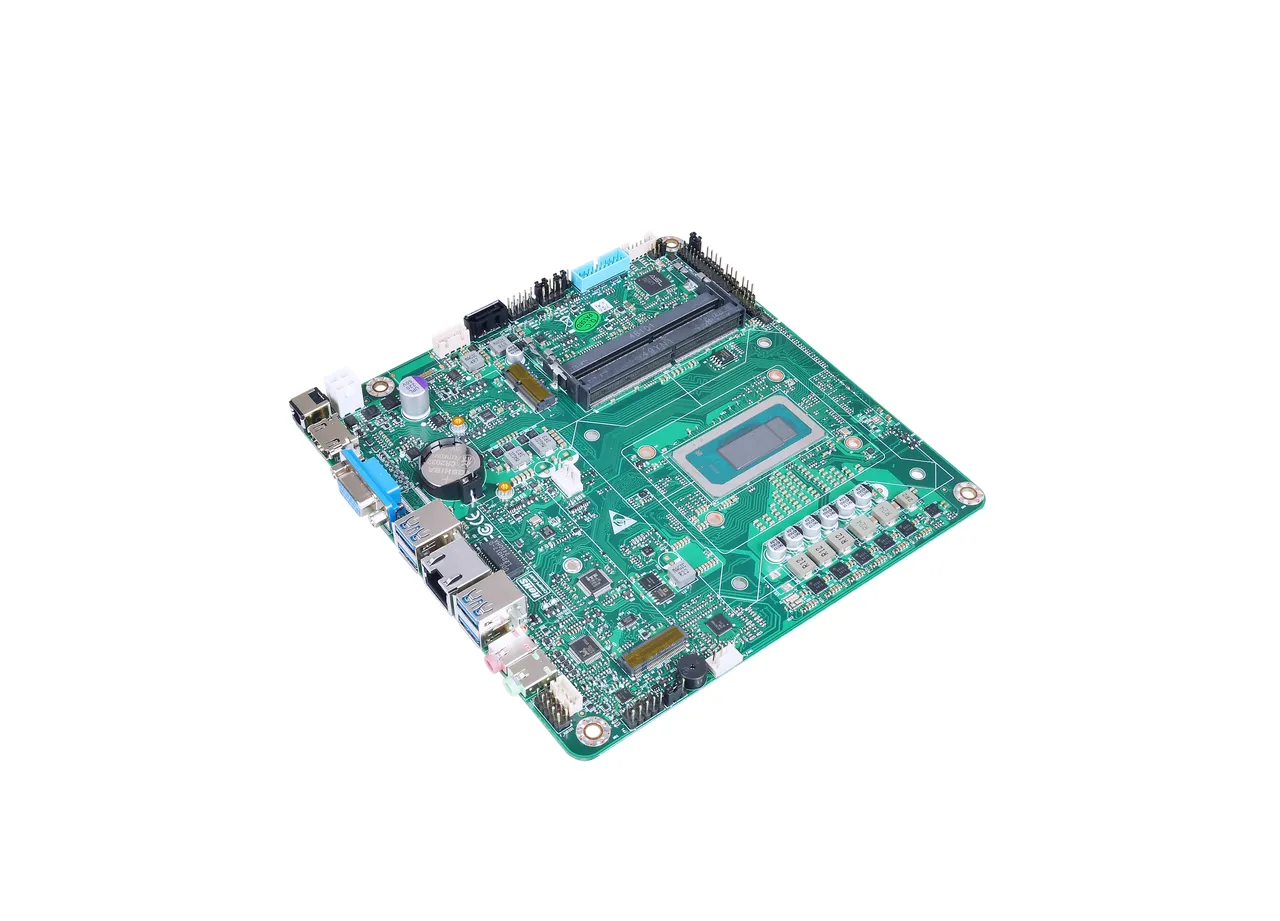

TIM600B
Alder Lake · 45W Alder Lake DDR4 64GB LVDS 120Hz LVDS at 120Hz with backlight control headers for industrial panels.
04

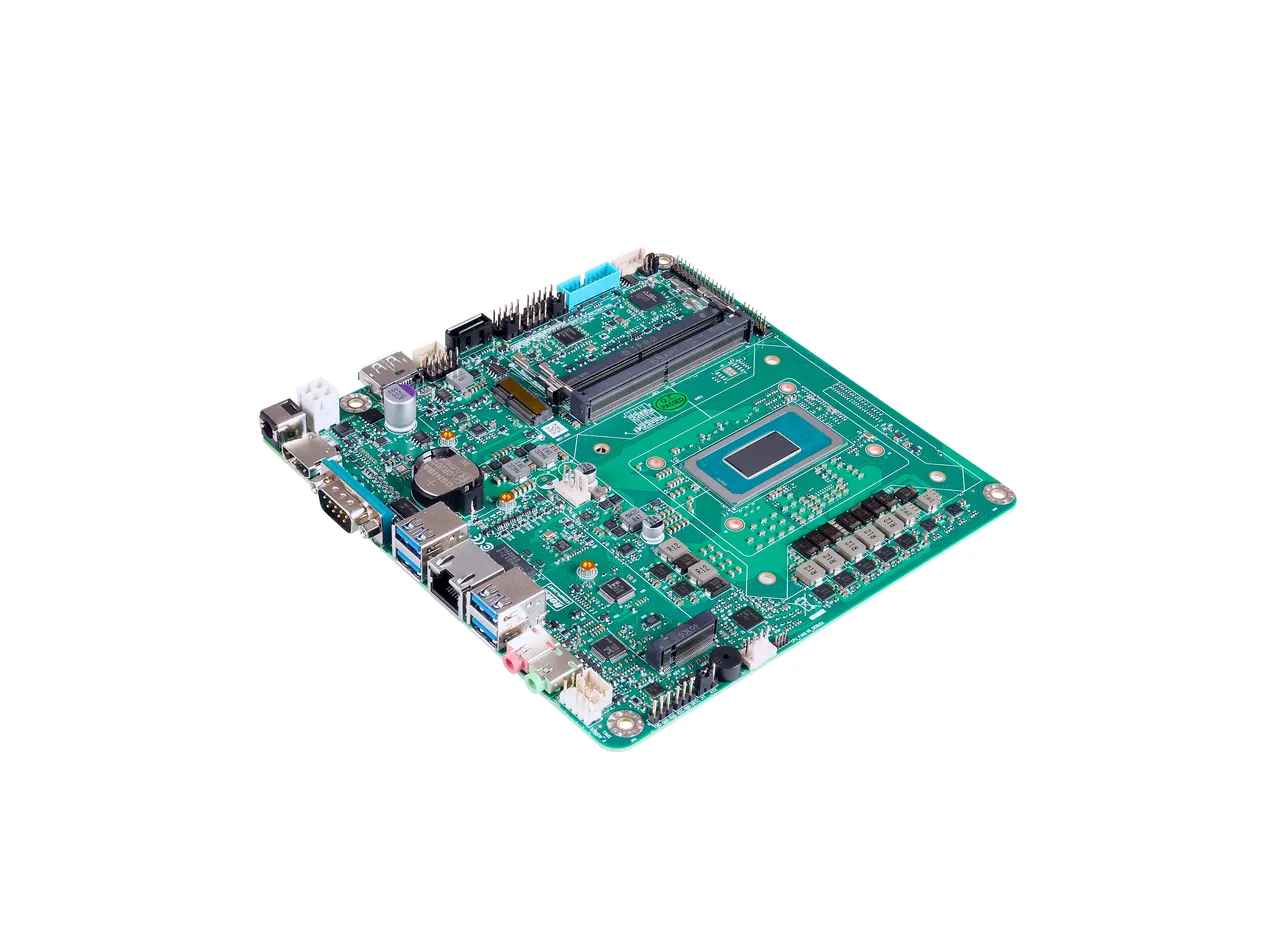

TIM800B
Core Ultra 125H-255H Core Ultra DDR5 96GB LVDS 120Hz DDR5-5600 to 96GB and LVDS at 120Hz for industrial panels.
05

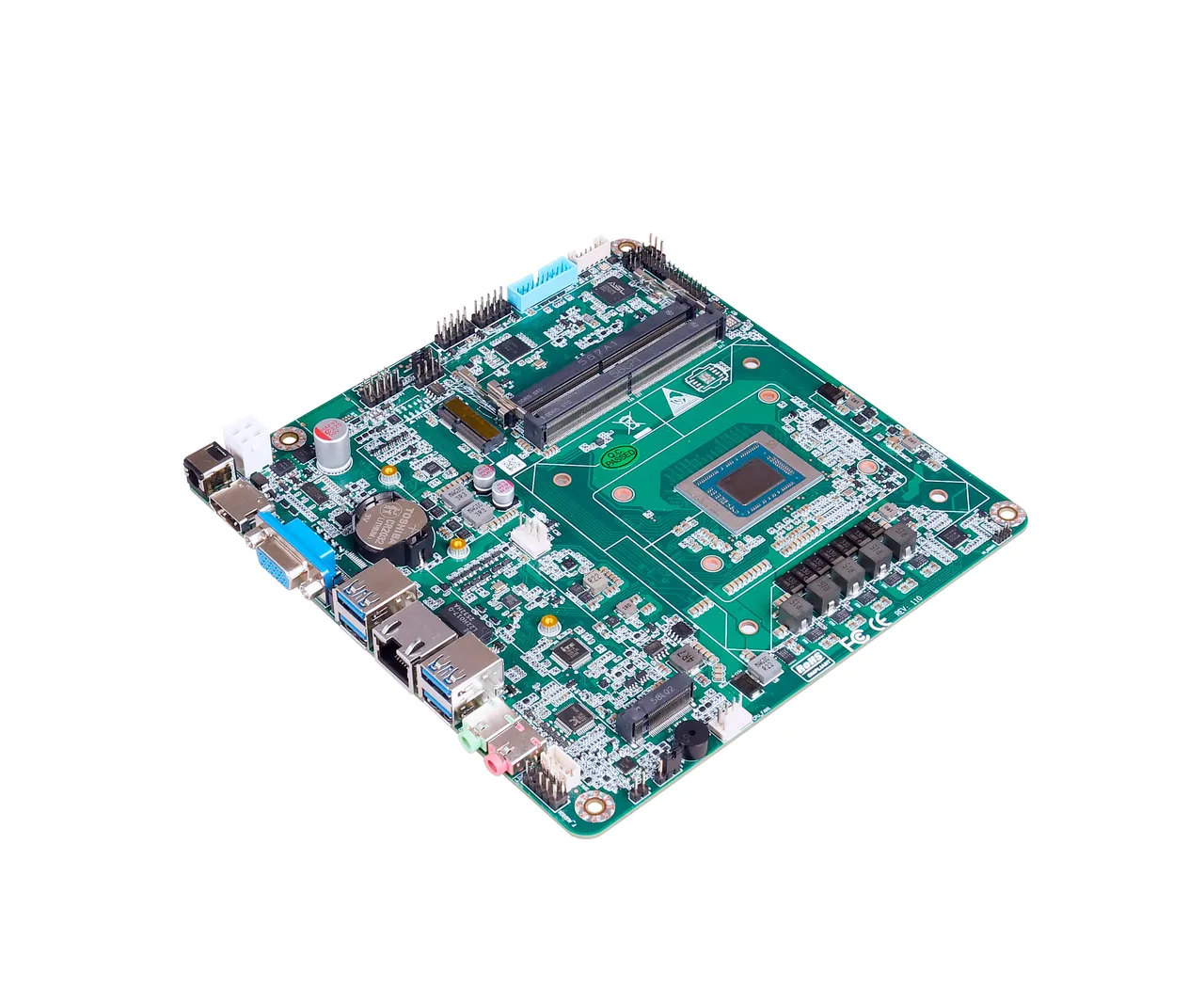

TMIA70B
AMD Ryzen Phoenix · 45W Ryzen 5/7 DDR5 96GB TPM 2.0 Ryzen 5 or 7 from 7640HS to 8845HS, with TPM 2.0 standard.
06
TOP600B
Alder/Raptor U-P · 28W 2× 2.5G 4G/5G B-Key 28W Dual 2.5G i226, 4G/5G B-Key with Micro-SIM, and a watchdog.
07

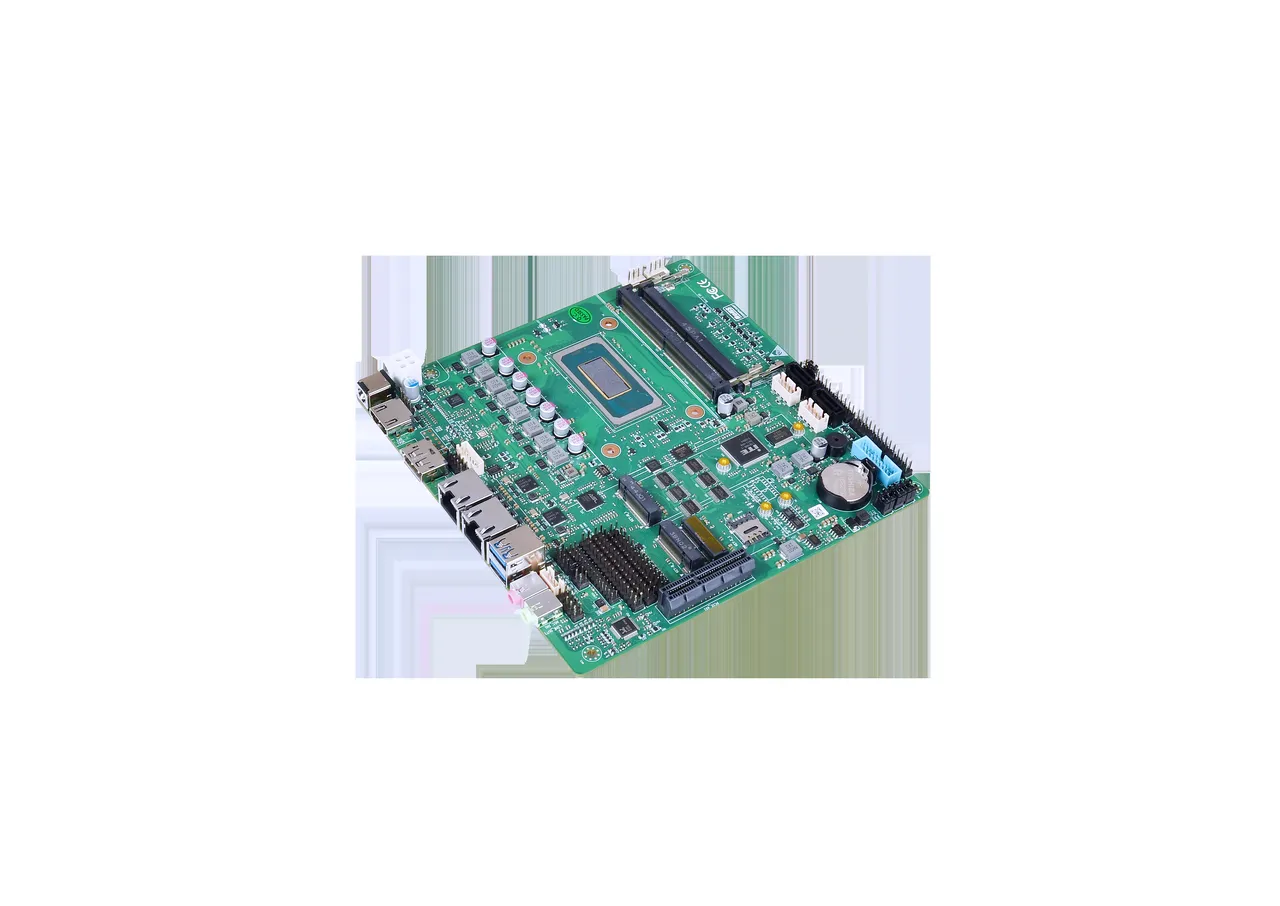

TOP800B
Core Ultra 5/7 · 28W HDMI 2.1 8K DDR5 96GB 2× 2.5G HDMI 2.1 at 8K, dual 2.5G i226-V and DDR5 to 96GB.
03 · Model matrix
Mini-ITX line at a glance
Seven boards, one standard. CPU, memory, panel output, LAN and power per the English datasheets.
Swipe to compare →| Model | CPU | Memory | Display | LAN | Power | Operating temp |
|---|---|---|---|---|---|---|
| ITX660B | LGA1700 Core 12th–14th Gen, 65W | 2× DDR5 SO-DIMM, 64GB | 2× HDMI 2.1 + 2× DP 1.4 (8K) | i219-LM + i226-V | DC 12–24V, 120W+ | −20/+60°C |
| ITXD20B | Phytium D2000/8, 2.3GHz, 40W | 2× DDR4 SO-DIMM, 64GB | HDMI 2.0 + VGA + LVDS | 2× RTL8111H | DC 12V, 100–200W | −20/+60°C |
| TIM600B | Onboard Alder Lake, 45W | 2× DDR4 SO-DIMM, 64GB | HDMI 2.0 + VGA/DP + LVDS 120Hz | 1× RTL8111H | DC 12–19V, 90W+ | −20/+60°C |
| TIM800B | Onboard Core Ultra 125H–255H | 2× DDR5-5600, 96GB | HDMI + DP + LVDS 120Hz | 1× RTL8111H | DC 12–19V, 120W | −10/+60°C |
| TMIA70B | Onboard AMD Ryzen 5/7 Phoenix, 45W | 2× DDR5-5600, 96GB | HDMI 2.0 + LVDS 120Hz | 1× RTL8111H | DC 12–19V + ATX | −20/+60°C |
| TOP600B | Onboard Alder/Raptor Lake U-P, 28W | 2× DDR5 SO-DIMM, 64GB | HDMI 2.0 + VGA/DP + LVDS | 2× Intel i226 (2.5G) | DC 12–19V, 90W+ | −20/+60°C |
| TOP800B | Onboard Core Ultra 5/7, 28W | 2× DDR5-5600, 96GB | HDMI 2.1 8K + HDMI 2.0 + LVDS | 2× Intel i226-V (2.5G) | DC 12–19V, 90W+ | −20/+60°C |
Source: published English specification sheets · 7 boards
Back to the lineup04 · Where it fits
One chassis, four kinds of work.
Vision cells, camera cabinets, signage players and utility gateways. Four routes through the industry pages.
All industry routes05 · Other form factors
The same line, five smaller footprints.
When 170 mm will not fit, the platform range continues downward. These are the families below Mini-ITX.
All 28 boards
2.5-inch SBC
Soldered LPDDR4/5 to 16GB, 2.5G LAN and a 12–24V input option on the smallest footprint.
3.5-inch SBC
Core Ultra, 12th/13th Gen U-P or Tiger Lake with DDR5 to 96GB and up to three 2.5G ports.
3.5-inch Wide
LPT, PS/2, SPDIF, six COM and AMT for machines that still run legacy peripherals.
NANO-ITX
6W fanless to 28W Core Ultra, up to four LAN with PoE, on a 120 mm square.

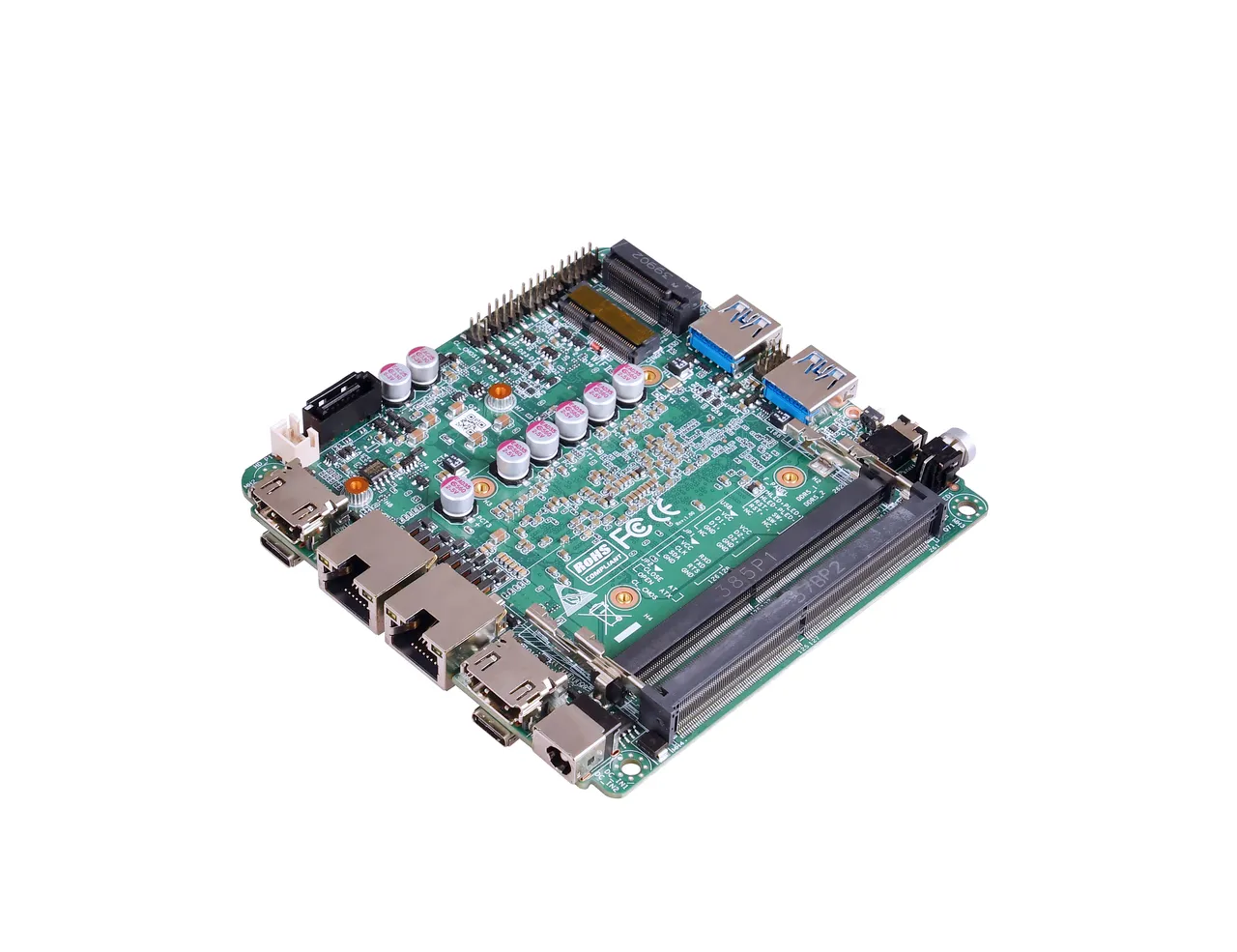

NUC
Tiger Lake to Ryzen AI, quad display and dual 2.5G in a 100 mm square.
