ITXD20B Industrial Motherboard

A compact 170 × 170 mm board built around the domestic Phytium D2000/8, eight cores at 2.3 GHz with X100 graphics, six serial ports, dual LAN and two CAN buses, shipping with Kylin OS (KOS) support for sovereignty-track deployments.

CPU: Phytium D2000/8, 2.3GHz, 40W
Memory: 2× DDR4 SO-DIMM, 64GB
Display: HDMI 2.0 + VGA + LVDS/eDP
Network: 2× RTL8111H
Power: DC 12V, 100–200W
Temperature: −20/+60°C operating

Quote ITXD20B Full specifications

Sample MOQ 1 pc · reply within 24–48 h · FOB Shenzhen

Why ITXD20B

Four things to know about this board

Platform

Domestic Phytium silicon

Onboard Phytium D2000/8 (Standard Edition) at 2.3GHz with paired X100 graphics, an 8-core architecture for supply-chain independent projects.

Field Bus

Six COM plus 2× CAN

COM1/2 as rear DB9 RS232, COM3/4 RS232/422/485 selectable, COM5/6 RS232, with 2× CAN and I2C for vehicle- and plant-style buses.

Software

Kylin OS (KOS)

Supported and shipped for the Kylin operating system, specify KOS for the board, BIOS and integration path as one package.

Connectivity

Dual LAN, wireless ready

Two RTL8111H gigabit ports with WiFi, 4G/5G and Bluetooth expansion on top, plus mSATA and SATA 3.0 storage options.

Full specifications

Technical data

Per the ITXD20B English specification sheet, R101. Values can be verified against the datasheet on request.

ITXD20B technical specifications
CPU	Onboard Phytium D2000/8 (Standard Edition) · 2.3GHz · TDP 40W · paired X100 graphics · EFI BIOS
Memory	2× DDR4 SO-DIMM · 2666 MHz · up to 64 GB
Storage	1× mSATA · 1× SATA 3.0 (2-pin 5V power)
Display	1× HDMI 2.0 · 1× VGA (max 1280×1024@60Hz) · 1× LVDS/eDP (LVDS solution: single 1920×1080 panel)
Rear I/O	DC JACK · 2× DB9 COM · HDMI · VGA · 2× LAN · 4× USB 3.0 · line out + mic in
Serial	COM1/2 as DB9 RS232 (Pin 9 selectable RI / 5V / 12V) · COM3/4 RS232/422/485 · COM5/6 RS232
Internal I/O	3× JUSB 2.0 headers · 1× JUSB 3.0 header · F_Audio · speaker 8Ω 3W ×2 · 3× 4-pin PWM fan (12V)
Bus & Control	2× CAN · 1× I2C · 8-bit GPIO
Expansion	1× PCIe x16 · 1× MiniPCIe · WiFi / 4G / 5G / Bluetooth expansion
Network	2× RTL8111H
Power	Standard input DC 12V · power range 100–200W
Dimensions / Weight	170 × 170 mm · approx. 150 g without heatsink / 250 g with heatsink
Environment	−20°C to +60°C operating · 0–90% RH non-condensing · −40°C to +85°C storage
Software	Kylin OS (KOS)

Need a port count that is not listed? Ask the engineer who owns the datasheet.

Ask about ITXD20B

Configuration

Ordering options

Options are configured at order time against the standard base board.

ITXD20B ordering options
Option	Standard	Optional
Panel output	LVDS (single 1920×1080 panel)	eDP output
Serial COM3/4	RS232	RS422 / RS485
COM1/2 Pin 9	RI (ring indicator)	5V or 12V supply on Pin 9

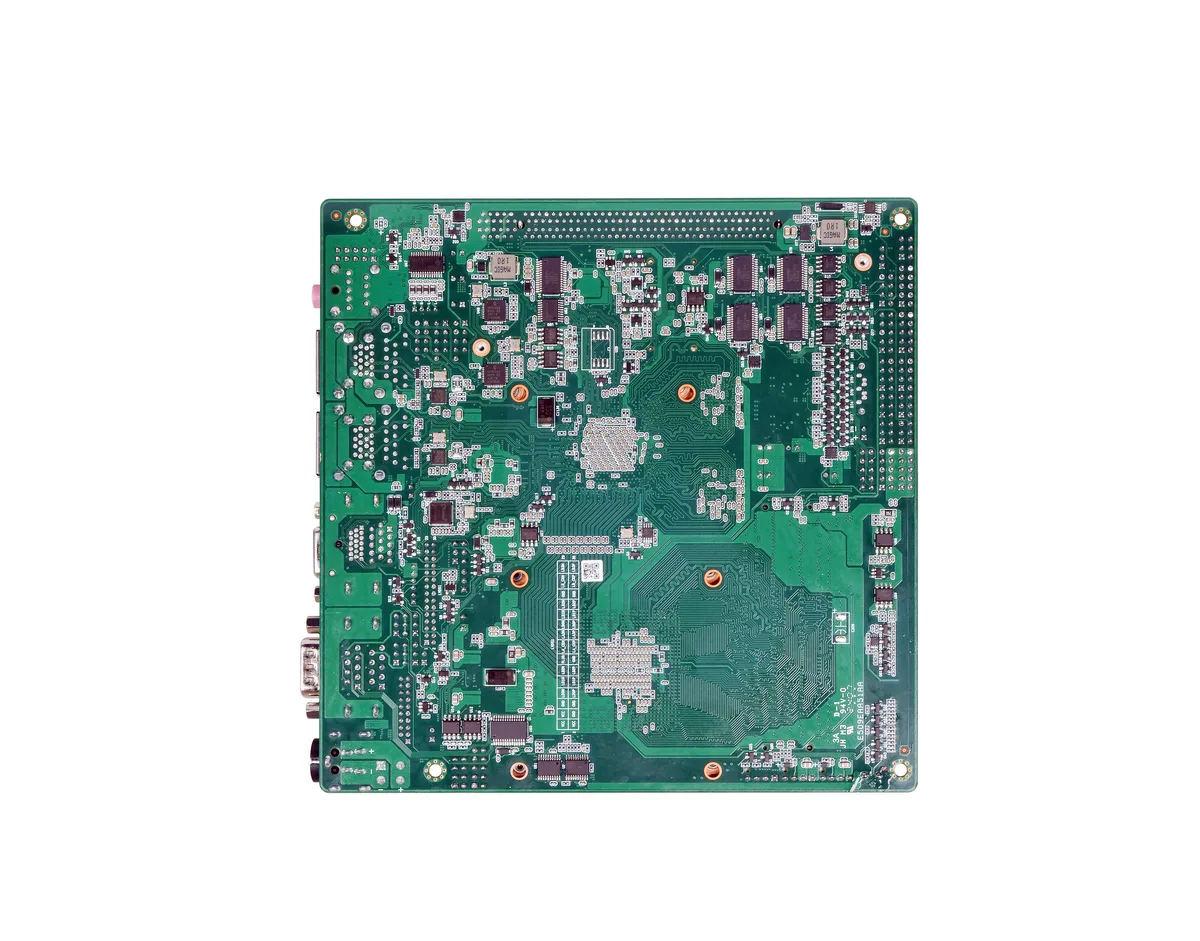

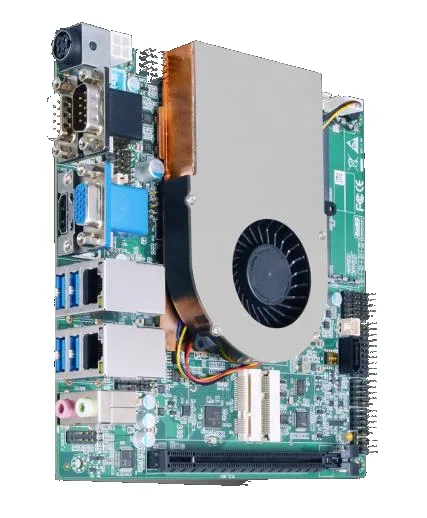

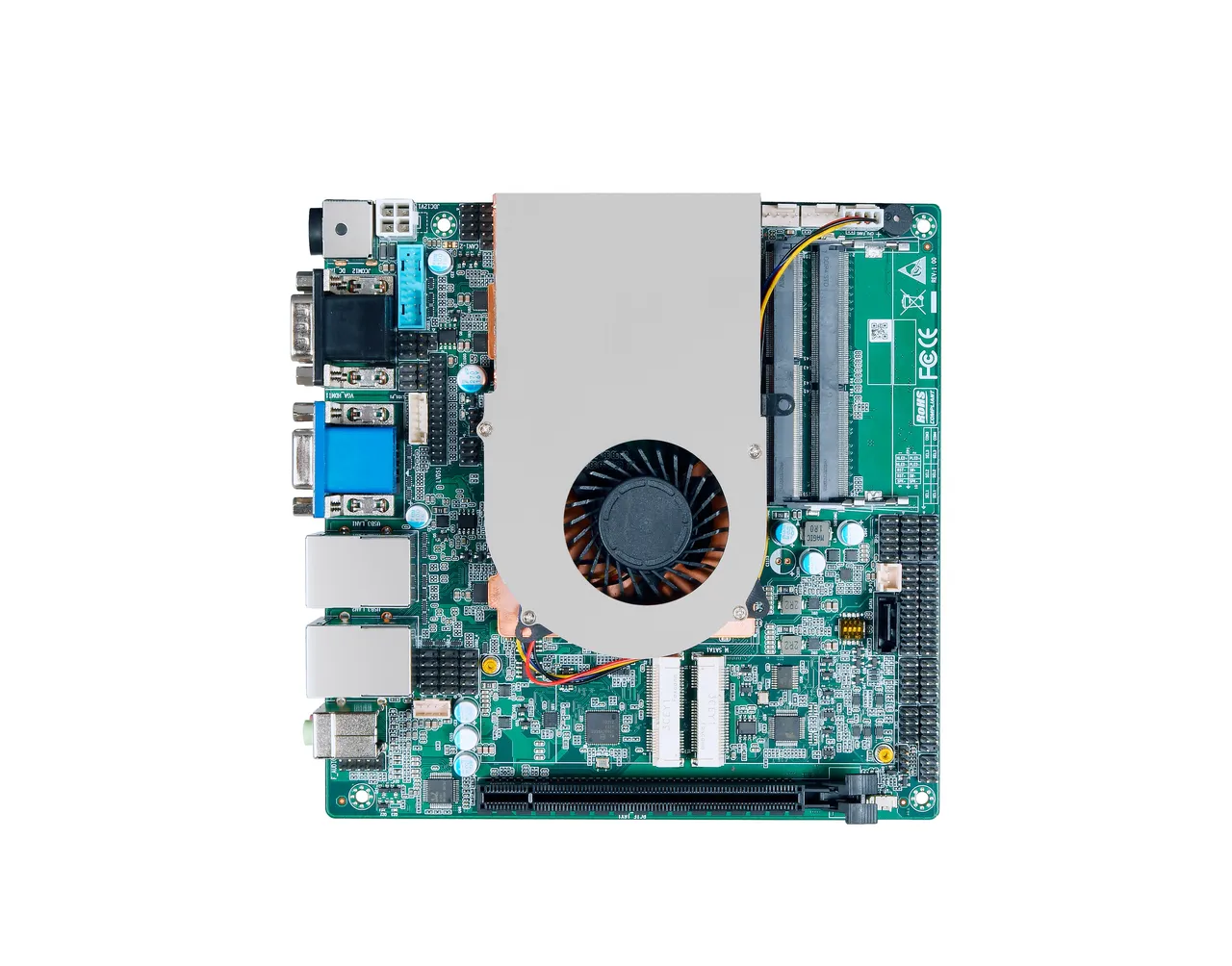

Product photos

ITXD20B, every angle

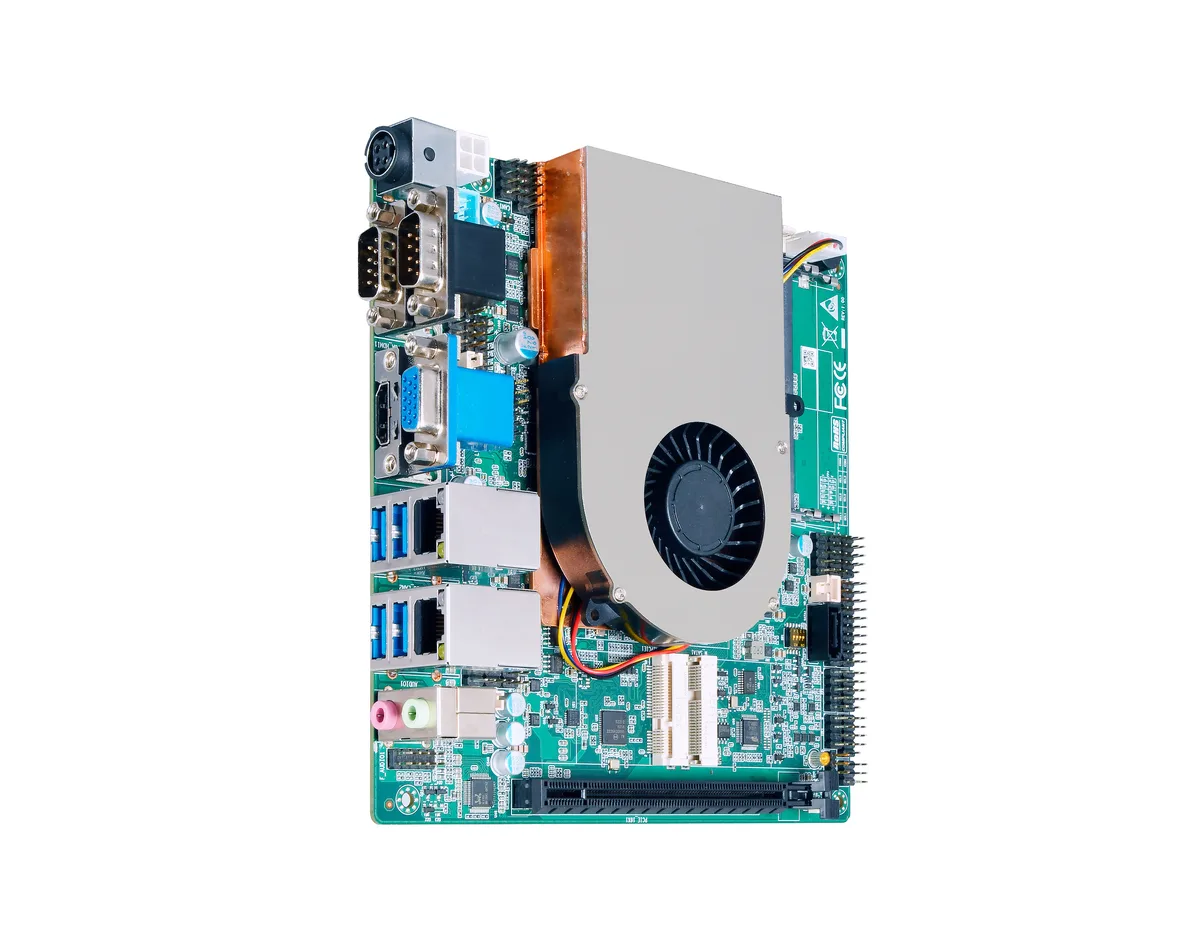

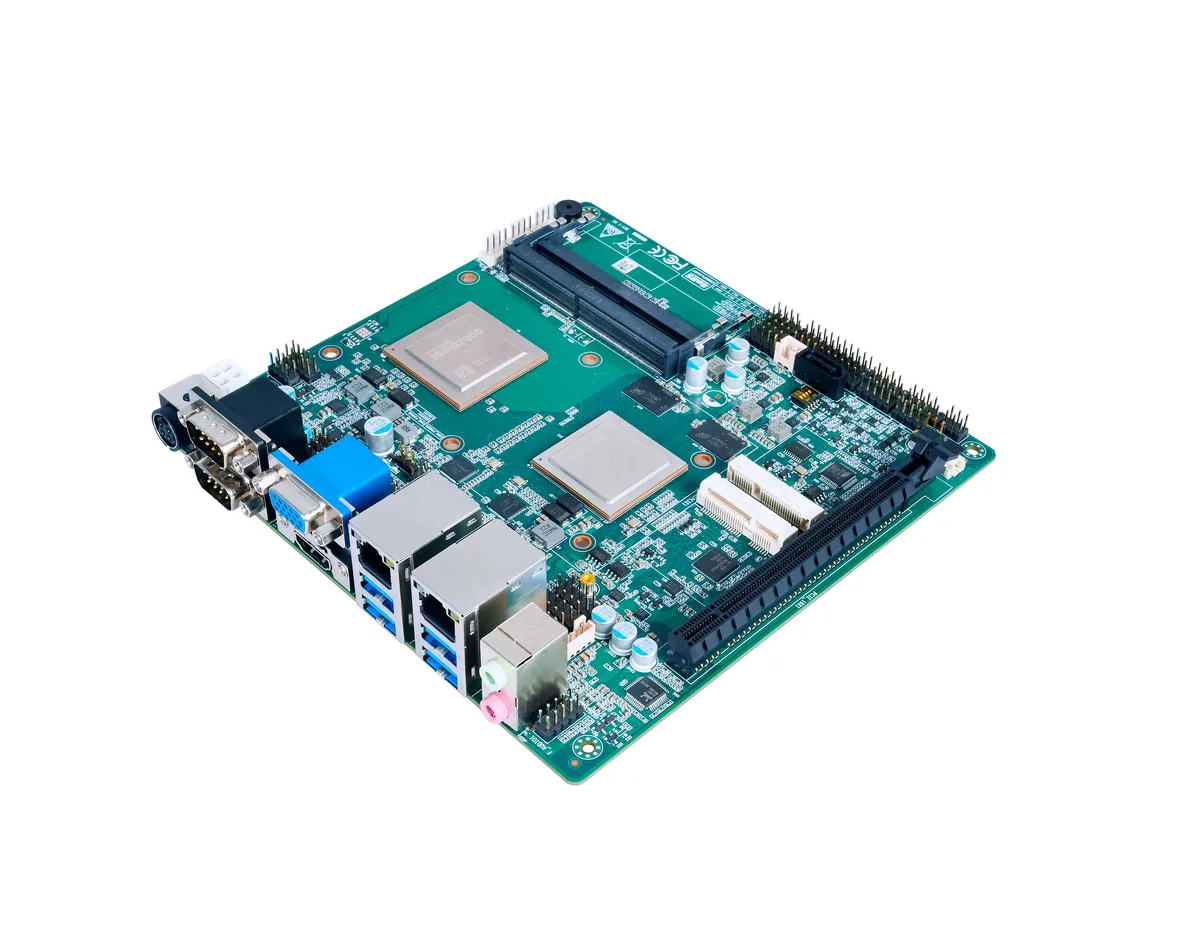

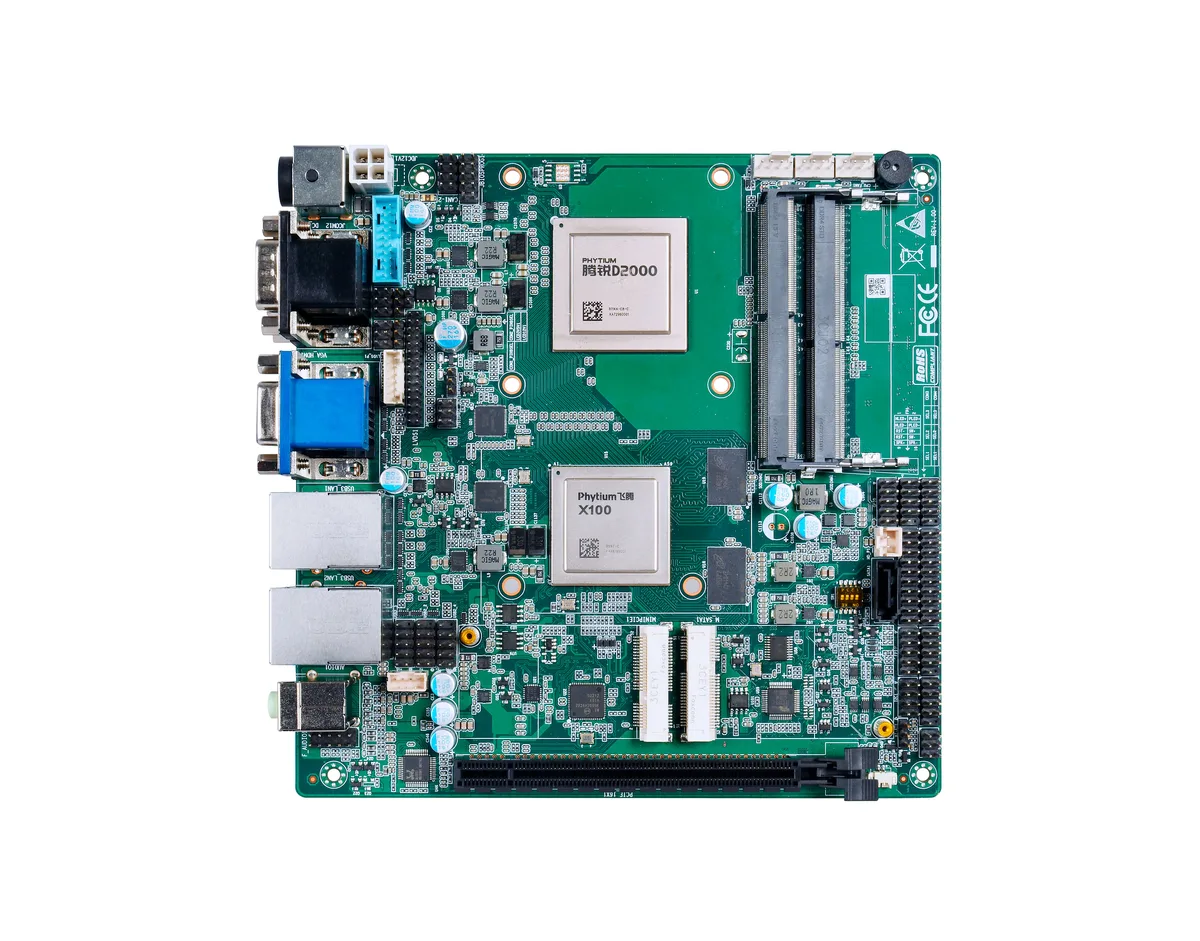

ITXD20B industrial motherboard, detail view

Where It Fits

Compact integrated systems, quietly

The ITXD20B targets compact, highly integrated mini computer systems where the whole unit has to sit close to the user. The card’s own application list says it plainly: industrial control, TV cabinets, home theater computers and smart home devices.

01TV cabinet & home theater boxes

low power draw and small footprint suit media consoles where fan noise and space are both limited.

02Smart home hubs

6× COM plus 2× CAN for KNX-style and serial building controls, dual LAN to separate home and uplink traffic.

03Kylin-based control points

for projects that must run KOS, the board ships with the OS support baked into the spec.
