TOP600B Industrial Motherboard

Onboard Alder Lake-U/-P and Raptor Lake-U/-P at 28 W with the gateway toolkit: dual Intel i226 2.5G ports, a 4G/5G B-Key slot with Micro-SIM, six serial ports and a code-ready watchdog, fanless, wide-temp, and at home in a remote cabinet.

CPU: Onboard Alder/Raptor Lake U-P, 28W
Memory: 2× DDR5 SO-DIMM, 64GB
Display: HDMI 2.0 + VGA/DP + LVDS
Network: 2× Intel i226 2.5G
Power: DC 12–19V, 90W+
Temperature: −20/+60°C operating

Quote TOP600B Full specifications

Sample MOQ 1 pc · reply within 24–48 h · FOB Shenzhen

Why TOP600B

Four reasons the field techs like it

Networking

Dual 2.5G plus cellular

Two Intel i226 2.5G ports with single/dual selection, and a B-Key 4G/5G slot with Micro-SIM, primary plus failover without a USB modem.

Supervision

Watchdog with sample code

A 0–255 second watchdog that ships with sample code, implement auto-recovery in your firmware instead of re-inventing the timer.

Thermals

28W, fanless by design

Alder/Raptor Lake-U/P at 28W across six i3/i5/i7 SKUs, passive cooling and wide-temp operation for sealed enclosures.

Legacy

Six COM, LPT or GPIO

COM1/2 RS232/485 with COM3–6 RS232, plus LPT or 16-bit GPIO and PS/2, industrial protocols without adapters.

Full specifications

Technical data

Per the TOP600B English specification sheet, R100. Values can be verified against the datasheet on request.

TOP600B technical specifications
CPU	Onboard Intel 12th Gen Alder Lake-U/-P · 13th Gen Raptor Lake-U/-P · 28W TDP · i3-1215U / i5-1235U / i7-1255U · i3-1220P / i5-1240P / i7-1260P · UEFI BIOS
Memory	2× DDR5 SO-DIMM · up to 64 GB
Storage	2× SATA 3.0 (2× large 4-pin SATA power) · 1× M.2 2280 (PCIe 4.0 x4 default)
Display	1× HDMI 2.0 (4K@60Hz) · VGA / DP 1.4 (4K@60Hz), selectable · JVGA pin header · 24-bit dual-channel LVDS 1920×1200 · eDP 4K@60Hz (LVDS or eDP, selectable)
Network	2× Intel i226 LAN (single or dual, selectable) · M.2 E-Key (PCIe + USB 2.0, WiFi/BT) · M.2 B-Key (USB 2.0 default, USB 3.0 reserved · 4G/5G) · Micro-SIM slot
Serial	COM1/2 RS232/485 (selectable) · COM3/4/5/6 RS232
USB Headers	1× 2×10-pin (2× USB 3.0; 4G/5G occupies one) · 1× 2×5-pin (2× USB 2.0) · 1× 2×5-pin (1× USB 2.0) · shared USB 2.0 as pin header in dual-LAN configuration
Other I/O	LPT 2×13-pin · 8-bit GPIO · LPT / 16-bit GPIO selectable (default LPT) · PS/2 2×4-pin · F_Audio · speaker 3W ×2 · watchdog 0–255 s with sample code
Expansion	1× PCIe 4.0 x4 · TPM 2.0 (optional)
Power	DC 12–19V · 90W and above (per application environment)
Dimensions / Weight	170 × 170 mm · 230 g (excluding heatsink)
Environment	−20°C to +60°C operating · 0–90% RH non-condensing · −40°C to +85°C storage
Software	Windows 11 · Windows 10 · Linux

Need a port count that is not listed? Ask the engineer who owns the datasheet.

Ask about TOP600B

Configuration

Ordering options

Options are configured at order time against the standard base board.

TOP600B ordering options
Option	Standard	Optional
CPU SKU	i5-1235U (28W U-series)	i3-1215U · i7-1255U · i3-1220P · i5-1240P · i7-1260P (P-series)
LAN	Dual Intel i226 2.5G	Single LAN
Video out	VGA	DP 1.4 (4K@60Hz), selectable
Panel out	24-bit dual-channel LVDS (1920×1200)	eDP 4K@60Hz, selectable
Utility port	LPT	16-bit GPIO, selectable
Security	TPM 2.0 off	TPM 2.0 module
Serial COM1/2	RS232	RS485 (selectable)

Product photos

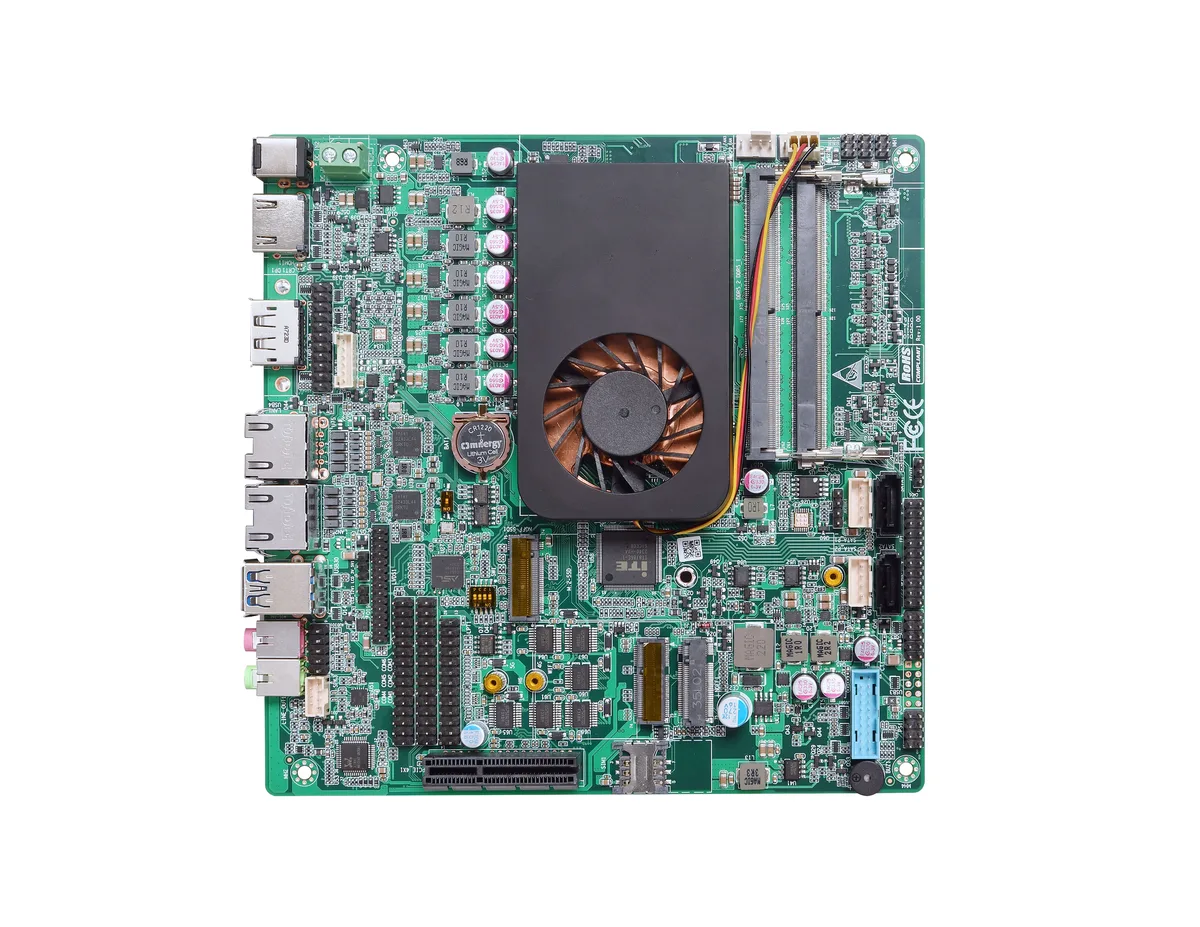

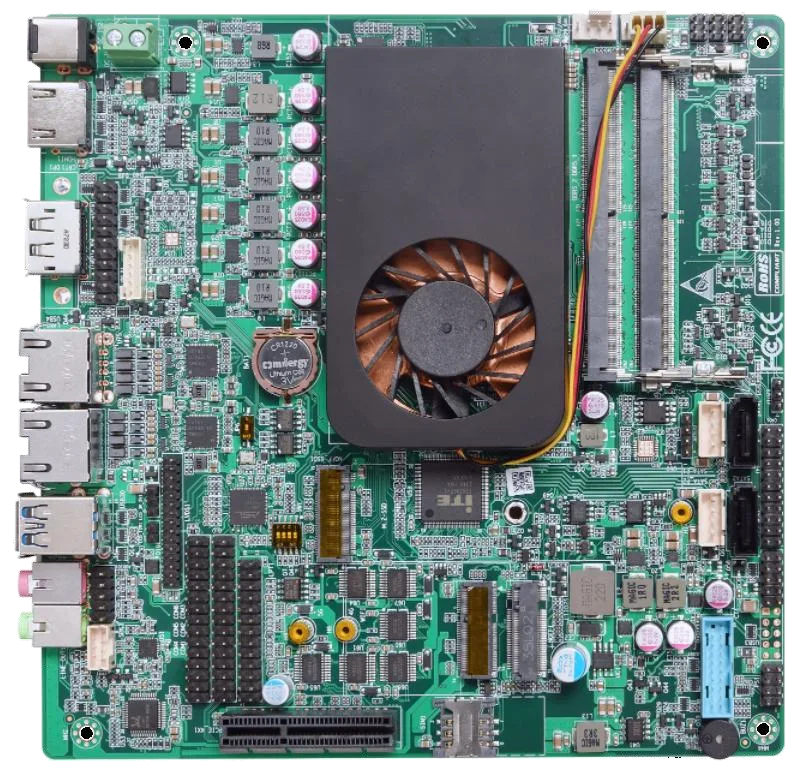

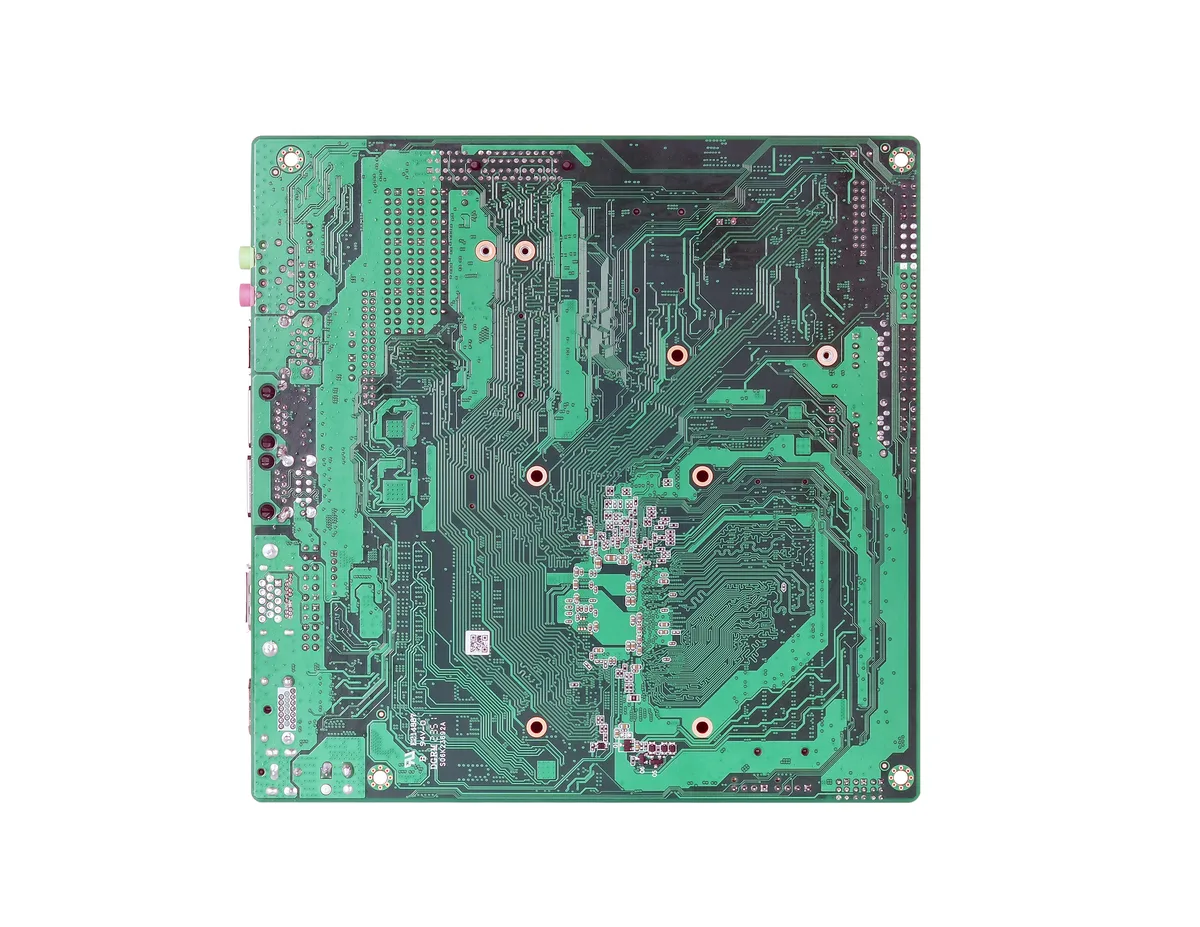

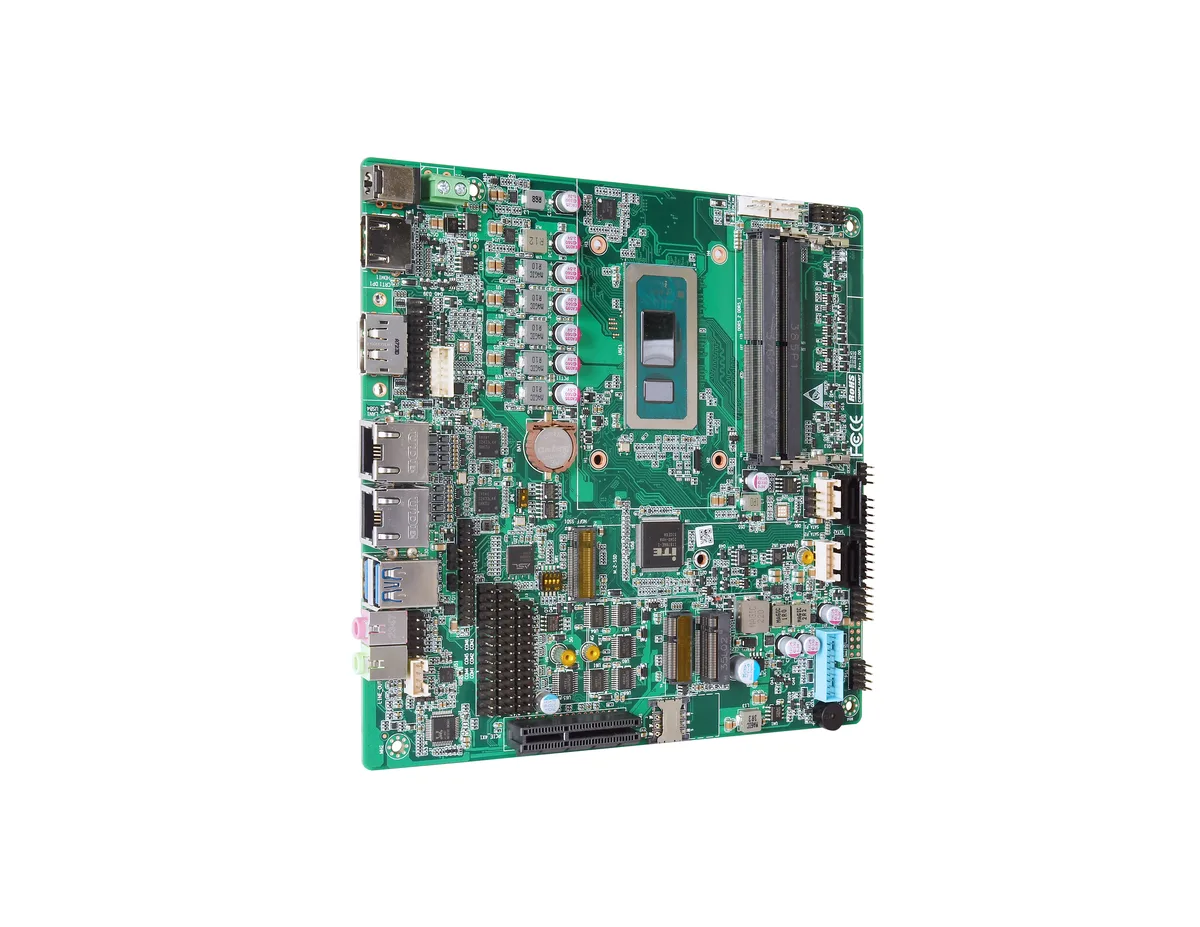

TOP600B, every angle

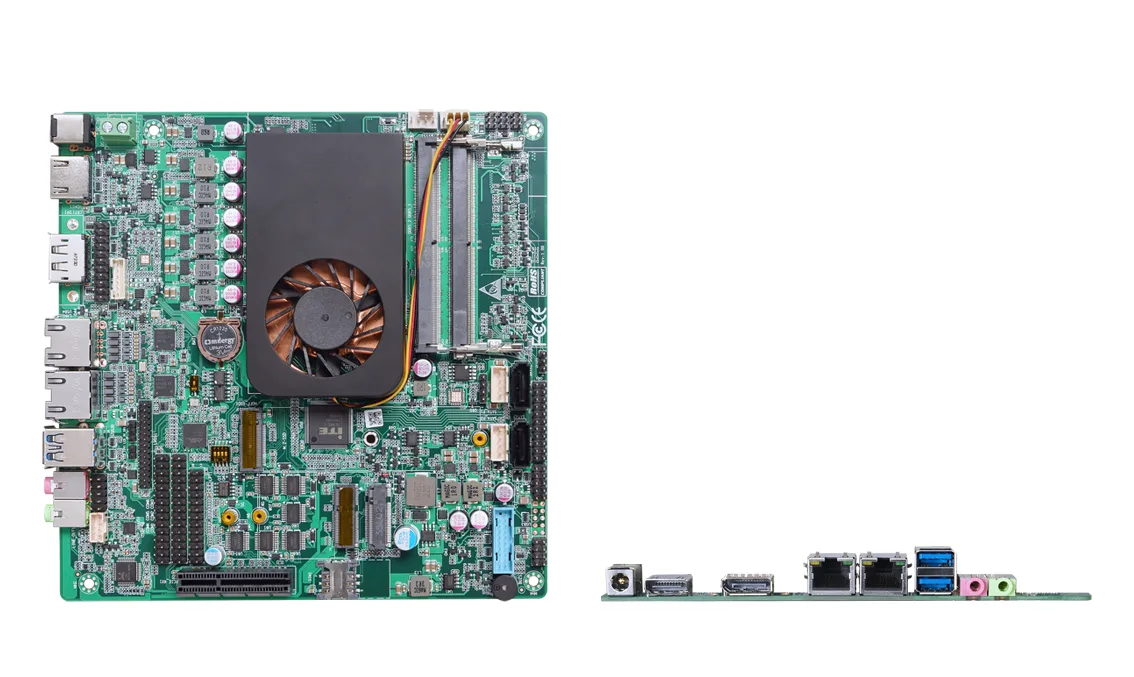

TOP600B industrial motherboard, detail view

Where It Fits

Gateways and unattended sites

The TOP600B is built for machines that stay on and stay reachable: dual wired ports, a cellular slot and a watchdog that pulls the system back from a hang. Typical deployments:

01Communications gateways

dual 2.5G for field and management VLANs, 4G/5G B-Key as the uplink when the site has no wired backbone.

02Remote automation

wide-temperature DC 12–19V operation in enclosures with marginal cooling, watchdog guarding unattended restarts.

03Data collection points

6× COM with RS232/485 and LPT or GPIO for legacy instrument strings and local control lines.

Discuss the application
