Communication density
Two segments, powered devices

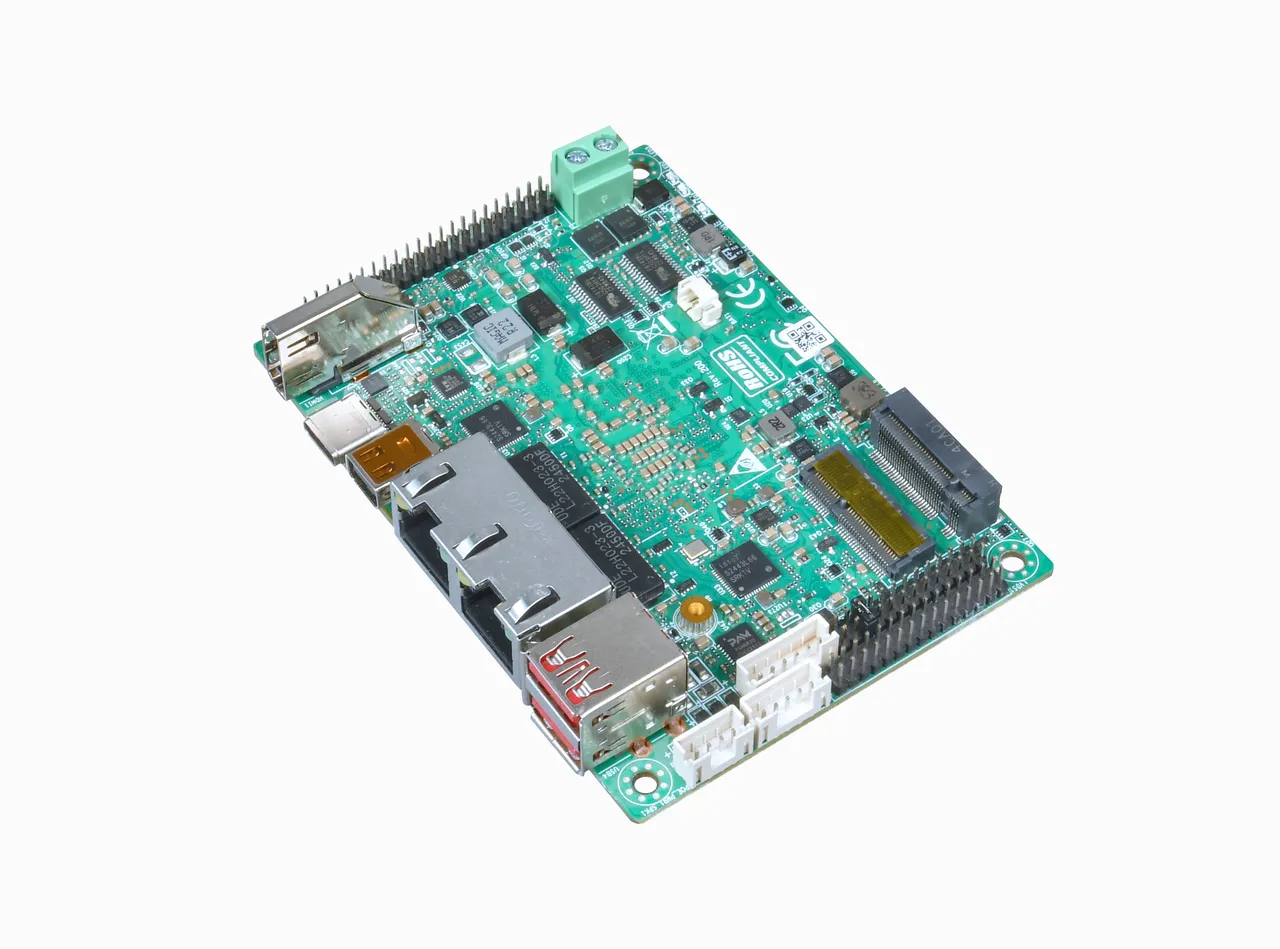

PDM-5110 carries two Intel i226-V 2.5G ports and a PoE PSE header, so one gateway can serve multiple segments and powered devices.
Industry route · Energy & communication
Gateways that keep talking

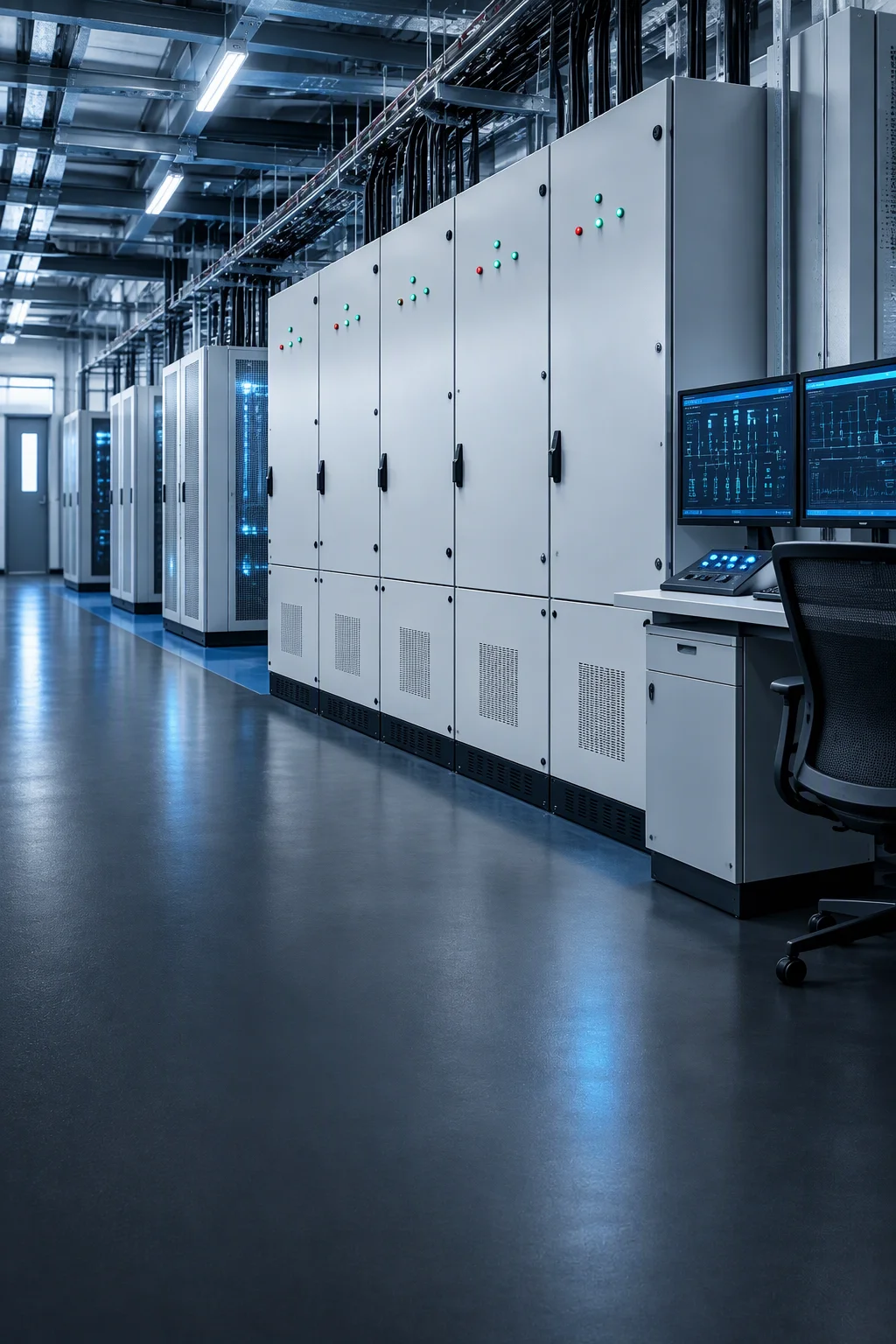

In public-power and grid-tied setups, the board is the data processing and communication layer: protocol gateways, telemetry nodes, cabinet controllers. Across the three: 2.5G LAN, PoE options, DC input from 12V to 36V depending on the model, and −20/+60°C operation.
Dual 2.5G
PoE PSE
DC 9–36V
What the cabinet asks for
What the application demands
Three requirements for the communication layer, each tied to a field on the model datasheet.
Node compute
Processing at the cabinet
Alder Lake-N and Twin Lake-N platforms with onboard LPDDR5 up to 16GB on PDM-5110 and AD742A run protocol conversion and telemetry on site.
Remote service
Wide input, AMT
TL500Z3AW accepts DC 9–36V and adds AMT plus a 0–255 s watchdog for cabinets that are rarely visited.
Recommended boards
Three gateways for the comm layer.
Fields are quoted from the model pages. These boards do data processing and communication, not power conversion; no utility certification is claimed.
Alder / Twin Lake-N
PDM-5110
Why: dual 2.5G plus a PoE PSE header suit gateway duty; DC 12–24V and LPDDR5 16GB.
2× 2.5GPoE PSELPDDR5 16GB
View board
Alder Lake-N
AD742A
Why: a low-power 60W node with optional PoE, sized for compact communication cabinets.
1× 2.5GPoE optionDC 12V
View board
Tiger Lake-U
TL500Z3AW
Why: 9–36V input and AMT keep cabinet gateways talking through sagging rails.
DC 9–36VAMT6× COM
View board
OEM / ODM
Need a different I/O map?
Once the sample is approved, BIOS defaults, pinout, heatsink and labels can change on the same qualified board.
How OEM / ODM worksFit matrix
Match the cabinet, then the gateway.
Typical requirements for the data processing and communication layer against the three recommended models.
3 models · 2 requirements
Energy and communication fit
Values from the current model datasheets. Confirm revision and configuration before design freeze.
Swipe to compare →| Model | Cabinet power | Network & service | Why it fits |
|---|---|---|---|
| PDM-5110 | DC 12–24V | 2× 2.5G · PoE PSE | Dual 2.5G and a PSE header suit gateway duty. |
| AD742A | DC 12V | 1× 2.5G · PoE option | Low-power 60W node for compact cabinets. |
| TL500Z3AW | DC 9–36V | 2.5G · AMT · watchdog | Wide input and AMT carry gateways through sagging rails. |
Source: PDM-5110, AD742A and TL500Z3AW datasheets
Compare the full lineupQuestions
Energy and communication, answered.
Two questions that come up before the sample request.
They handle the data processing and communication layer in public-power and grid-tied setups: protocol conversion, gateway routing and telemetry. They are not power-conversion hardware, and no utility certification is claimed.
Start a project
Tell us the cabinet.
Bus voltage, segment count and cabinet temperature. We confirm the gateway board and its power range within 24 to 48 hours.
