Application index · Seven industries

Seven industries. One board family.

Every route starts from the same discipline: wide temperature where the model states it, wide DC input where the rail is dirty, and 24/7 duty. The environment then narrows the shortlist.

28 models 6 form factors −20/+60°C DC 9–36V
Factory line with machine vision stations in a Shenzhen plant

Application routes

Where the boards actually run.

Each route lists the requirements that decide the model and the boards that meet them. Three model names per route, no category filler.

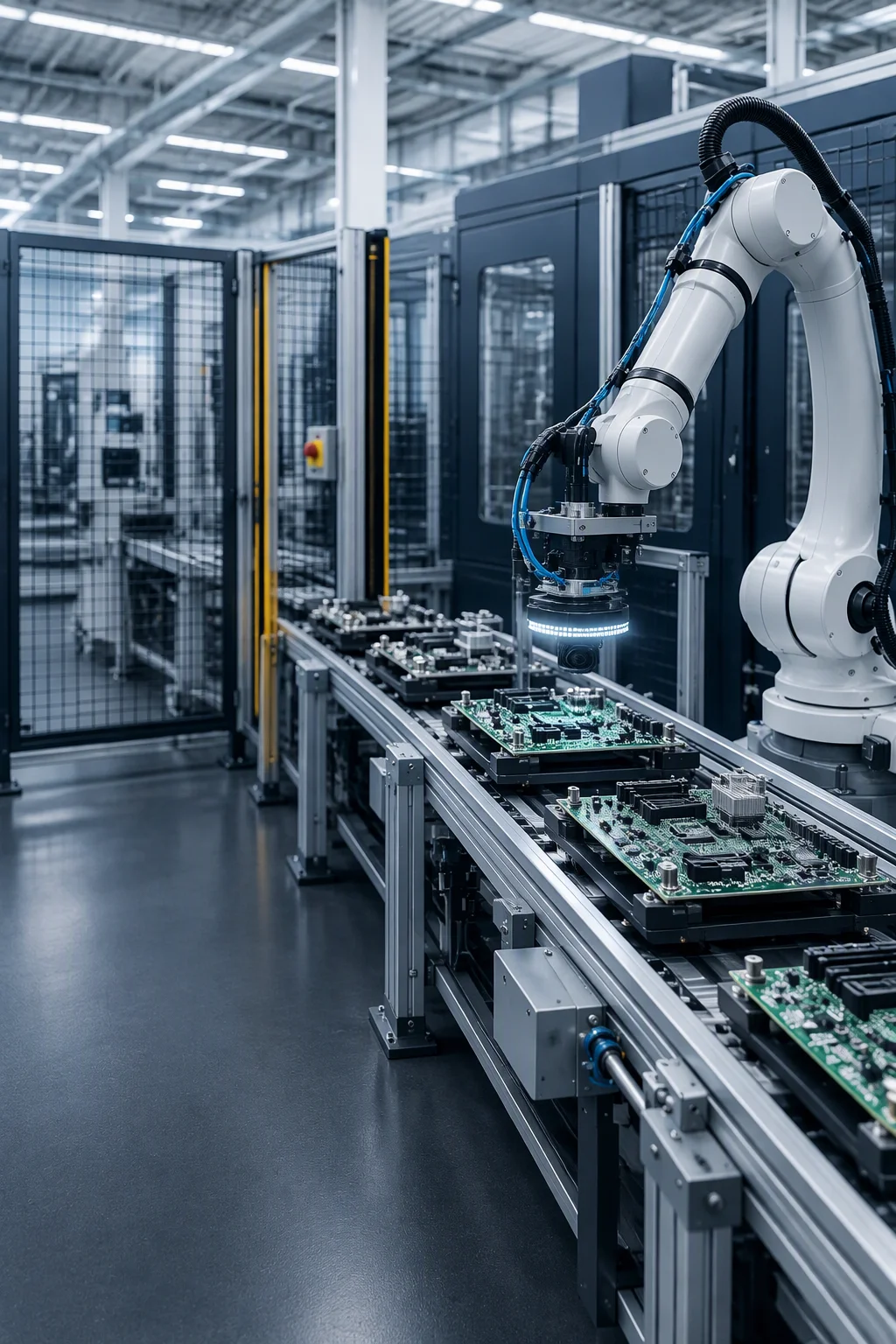

Machine vision station above a conveyor in a factory hall 01 / Application

Factory Automation

Vision, motion and MES nodes with the serial ports the line still uses.

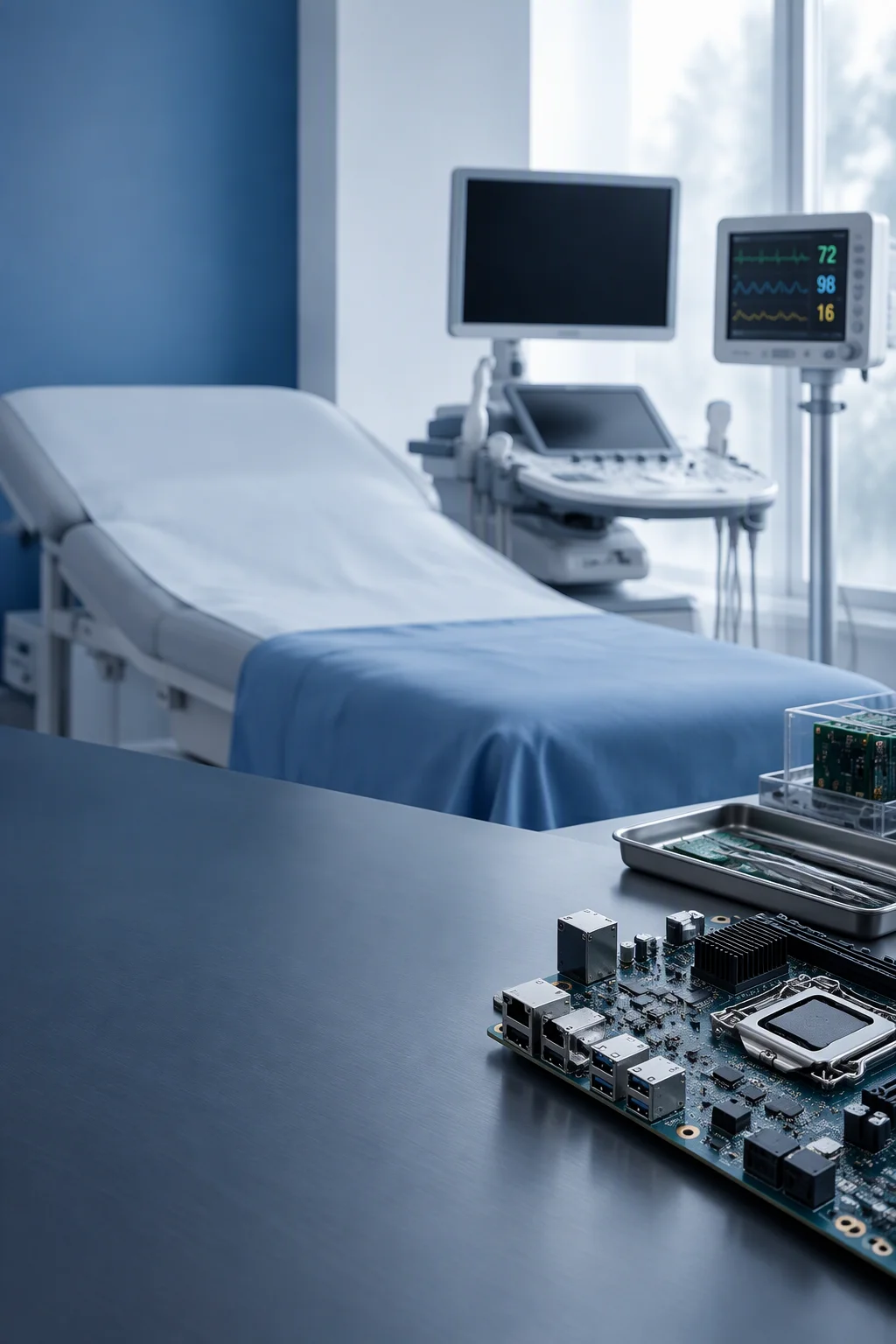

AD743AW TOP600B RP7003AW Mini-ITX · 3.5-inch Quiet medical examination room with patient monitoring equipment 02 / Application

Medical Devices

Quiet, fanless platforms sized for long device programs.

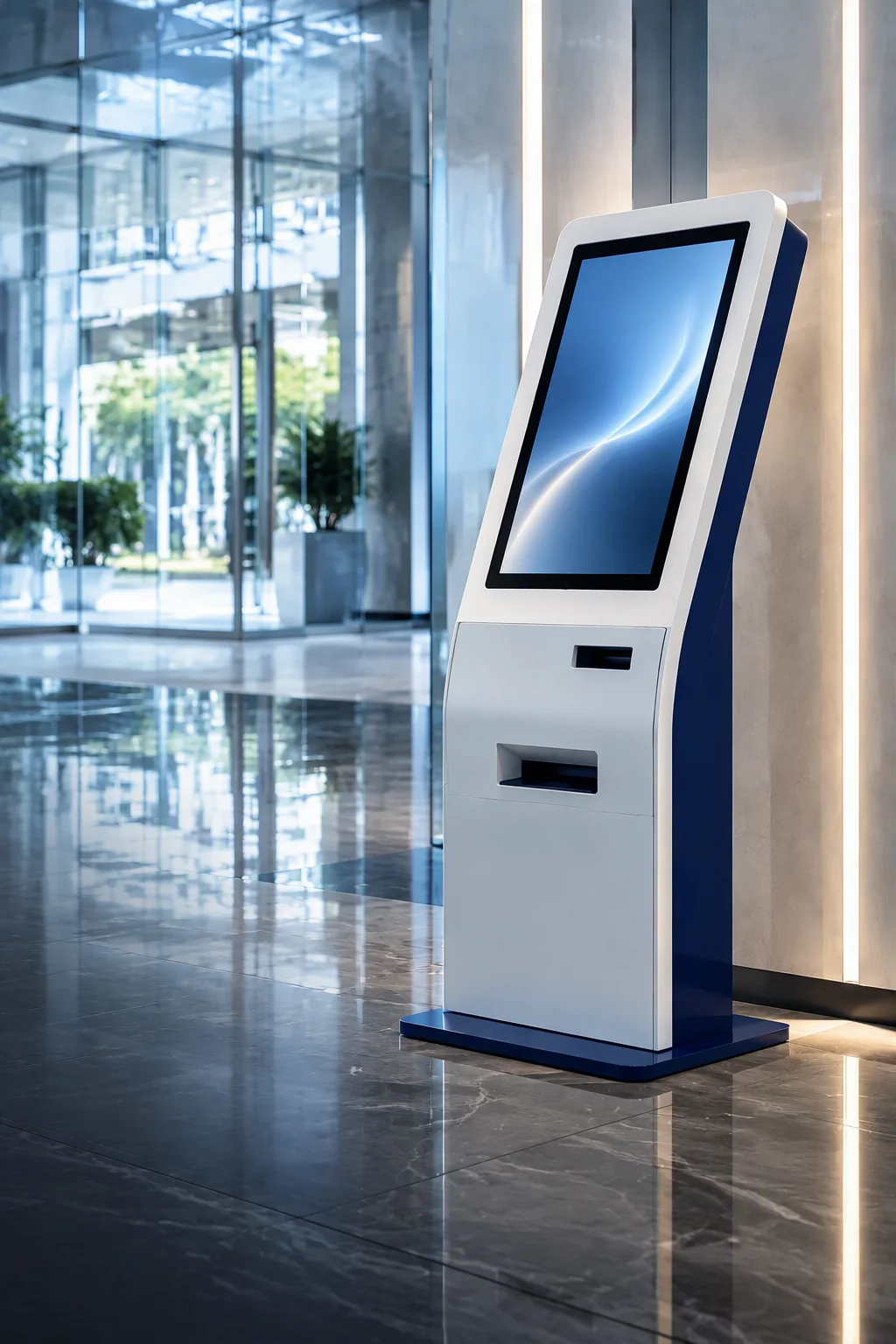

MSK-TL5003AW UT1003AW TIM600B 3.5-inch · Mini-ITX Self-service kiosk terminal in a retail lobby 03 / Application

Kiosk & POS

Peripheral-heavy terminals that recover without a field visit.

TOP600B ITX660B AD600NA NUC · NANO-ITX Vehicle equipment bay with railway electronics racks 04 / Application

Transportation

On-board computers that ride 12V and 24V and stay online.

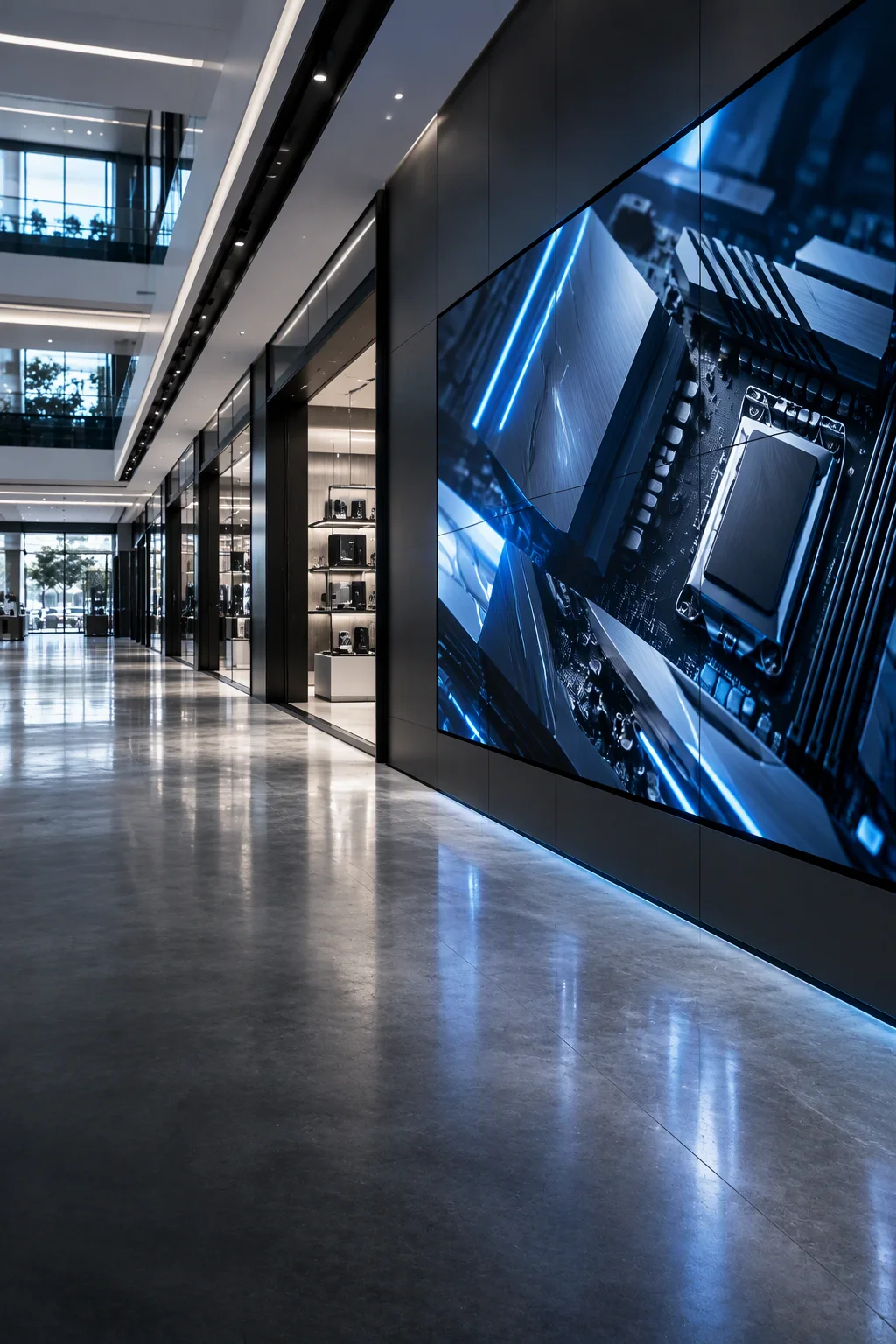

AD600Z3AW TL500Z3AW PX700CA 3.5-inch Wide · NUC Digital signage display wall in a commercial atrium 05 / Application

Digital Signage

Dual and quad 4K players for unattended screen walls.

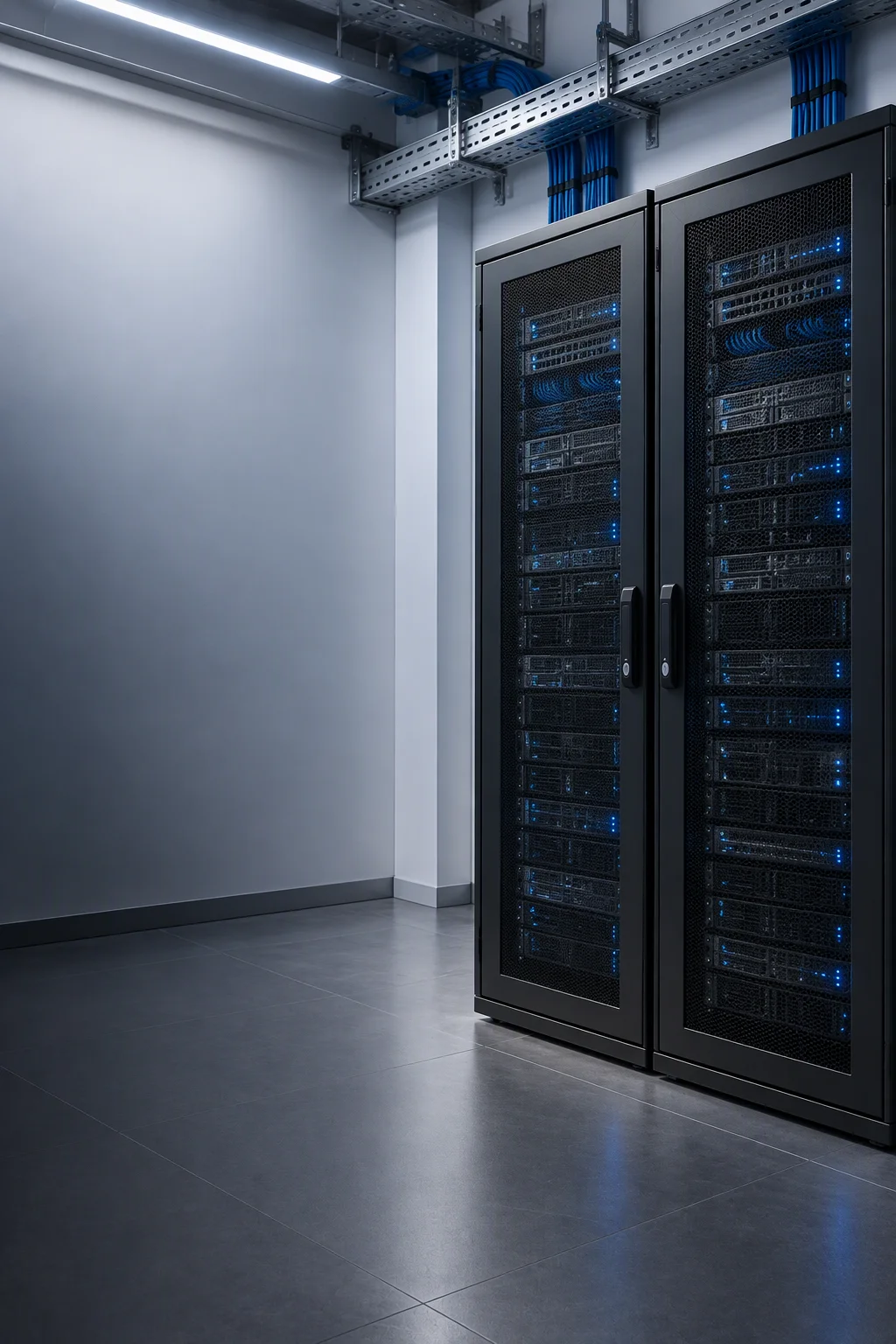

HK800CA AR200CA TL500CA NUC · 100 × 100 mm Edge AI cabinet with cameras and inference units 06 / Application

Edge AI & Security

Inference and NVR nodes with NVMe storage and 4G backhaul.

HK800CA TOP800B RP7003AW Mini-ITX · 3.5-inch · NUC Utility corridor lined with power and communication cabinets 07 / Application

Energy & Communication

Utility and telecom gateways for hot cabinets and sagging rails.

PDM-5110 AD742A TL500Z3AW 2.5-inch · 3.5-inch Wide

How we match a board

Environment first. Silicon last.

Three checks narrow 28 models to a shortlist before price enters the conversation.

Temperature Power Interfaces
Talk through the application
01 Environment −20/+60°C Cabinet, vehicle bay or outdoor yard. The operating range is checked per model, not assumed from the family.
02 Power DC 9–36V Wide-input models take 12V and 24V directly. Others specify 12–19V or 12–24V, so the rail is checked first.
03 Interfaces COM · LAN · CAN Serial devices, camera ports and fieldbus decide the board more often than the processor class.

Shortlist in 24 to 48 hours · datasheet values only

Start a project

Tell us the environment. We’ll name the board.

One paragraph is enough: temperature, power source, interfaces and volume. An engineer replies within 24 to 48 hours with a model, a lead time and a price.

Request a quote Contact the sales desk
Sample MOQ 1 pc Seven application routes FOB Shenzhen
