100 × 100 mm · 6 models · 2026 catalog

NUC industrial motherboards

The smallest square in the lineup and the workhorse of signage players and mini PCs. Six boards run Tiger Lake i5/i7, Alder and Raptor U-P, Core Ultra, Arrow Lake and Ryzen AI, with DDR5 to 96 GB and, on most models, quad-display output from two HDMI plus two Type-C.

Size · 100 × 100 mm 6 models Tiger Lake to Ryzen AI

UT100CA NUC industrial motherboard, angled top view — **Fig. 01** · UT100CA, 100 × 100 mm DC 12–19V · 90W

01 · Why 100 × 100 mm

The square that powers the screen wall.

100 × 100 mm is bought for the space behind a panel and for the number of displays the workload has to drive.

Quad display Dual 2.5G 12–19V

See the six boards

01 Display 4 outputs Two HDMI plus two Type-C with DisplayPort on most models, so a four-panel wall runs from a board smaller than a postcard.

02 Mounting 100 × 100 Slides into signage players and kiosk boxes. Dual LAN keeps content and office traffic on separate segments.

03 Compute 6 platforms Tiger Lake, Alder and Raptor U-P, Core Ultra, Arrow Lake, Ryzen 6000/7000 and Ryzen AI 9 365, picked to the workload and the fleet budget.

04 Power DC 12–19V Every NUC model runs 12–19V at 90–150W, so one brick class can be stocked for the whole deployment.

Values per the English specification sheets · single or dual LAN and CPU options noted where they change the rear panel

02 · The lineup

Six squares, from Tiger Lake to Ryzen AI.

03 · Model matrix

NUC line at a glance

Six squares, one 100 mm standard. CPU, memory, panel output, LAN and power per the English datasheets.

Swipe to compare →

NUC comparison: CPU, memory, display, LAN, power and operating temperature
Model	CPU	Memory	Display	LAN	Power	Operating temp

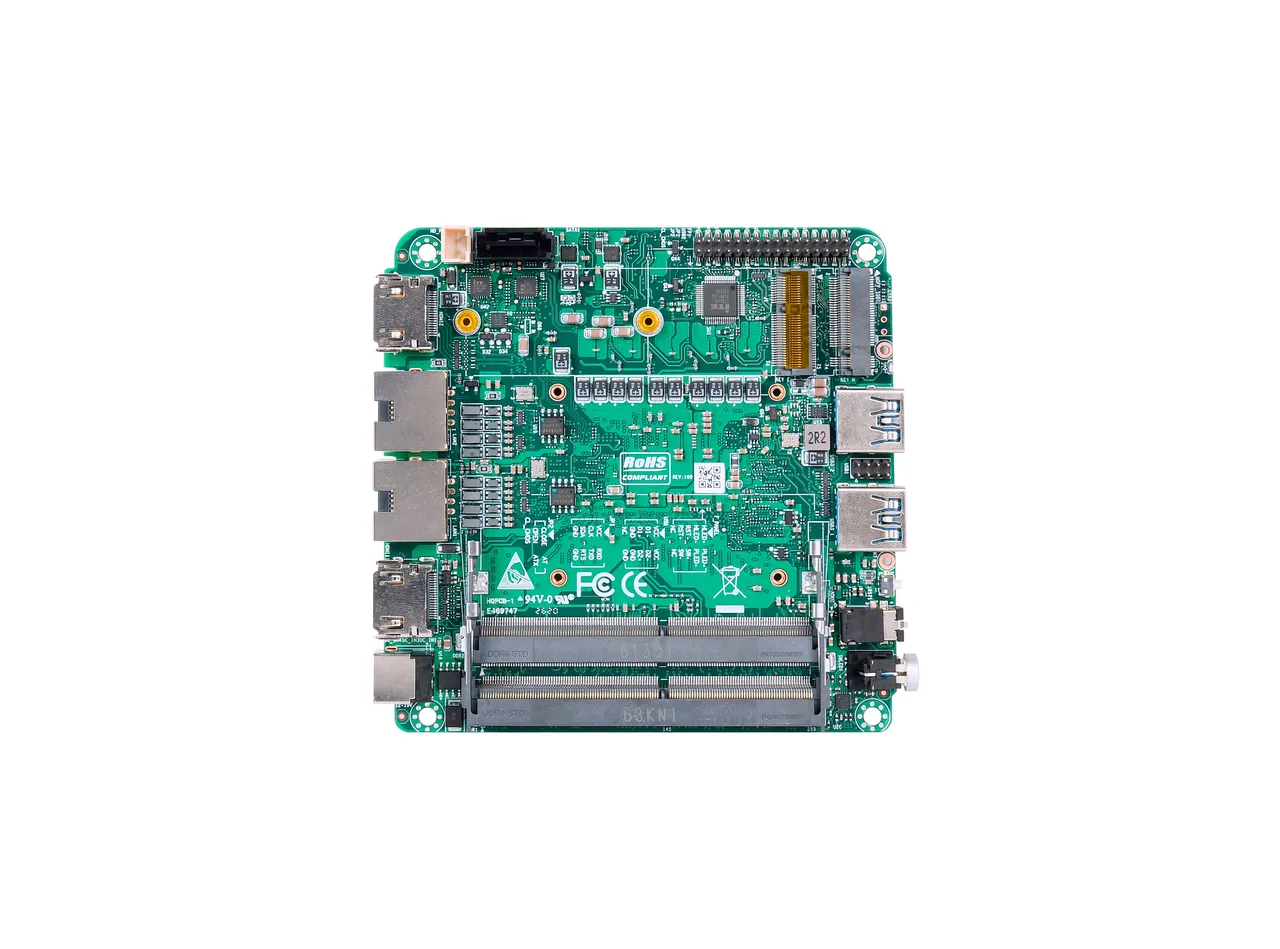

AD600CA	Alder / Raptor Lake U-P, 28W	2× DDR5 SO-DIMM, 64GB	2× HDMI 4K + 2× Type-C (DP 8K)	1× Intel 2.5G	DC 12–19V, 150W	−20/+60°C

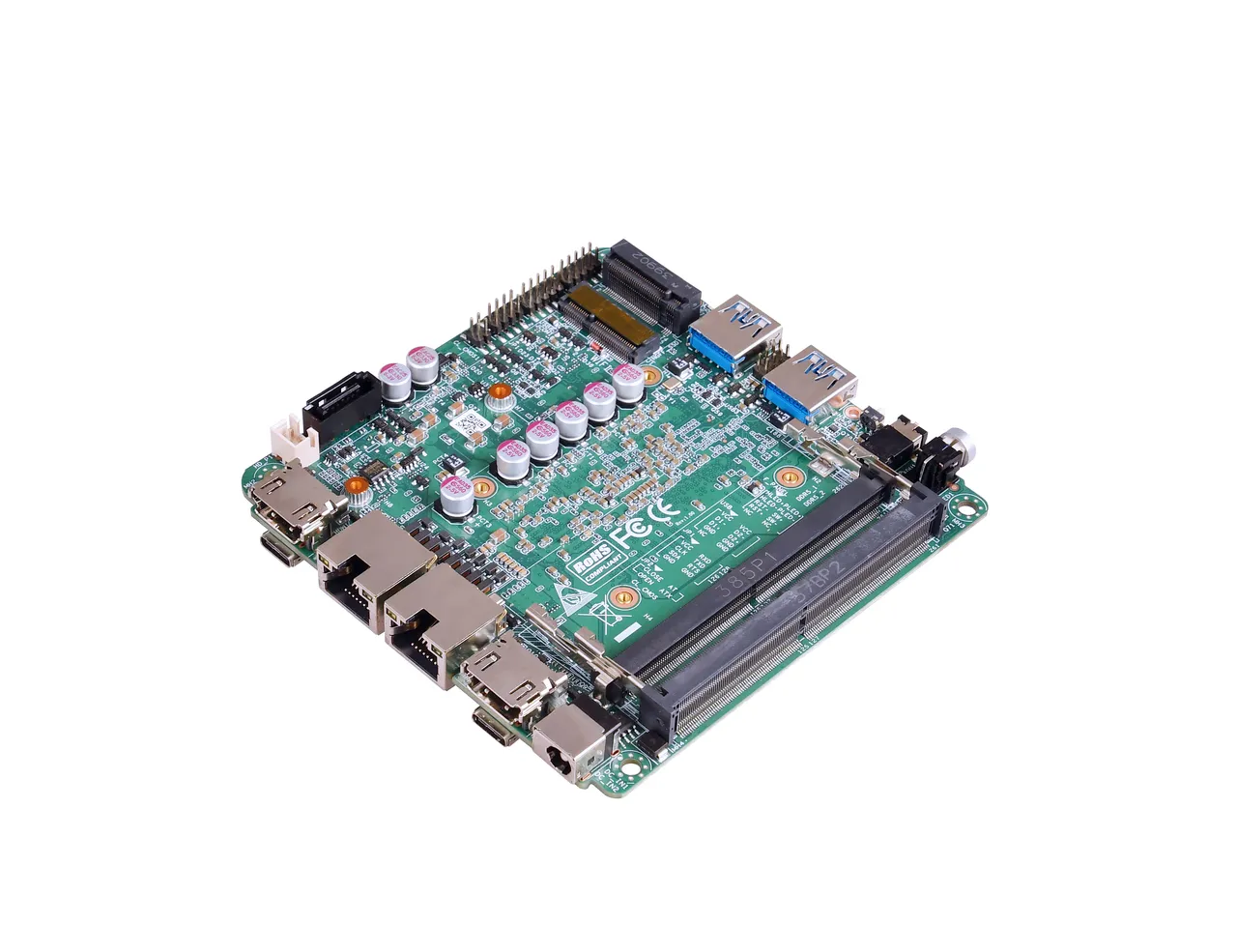

AR200CA	Core Ultra Arrow Lake, 28W	2× DDR5 SO-DIMM, 96GB	2× HDMI 2.1 4K + 2× Type-C (DP 4K)	2× Intel i226	DC 12–19V, 90W	−20/+60°C
HK800CA	AMD Ryzen AI 9 365	2× DDR5 SO-DIMM, 64GB	2× HDMI 2.0 4K + Type-C 4K	2× Intel i226-V	DC 12–19V, 90W	−20/+60°C

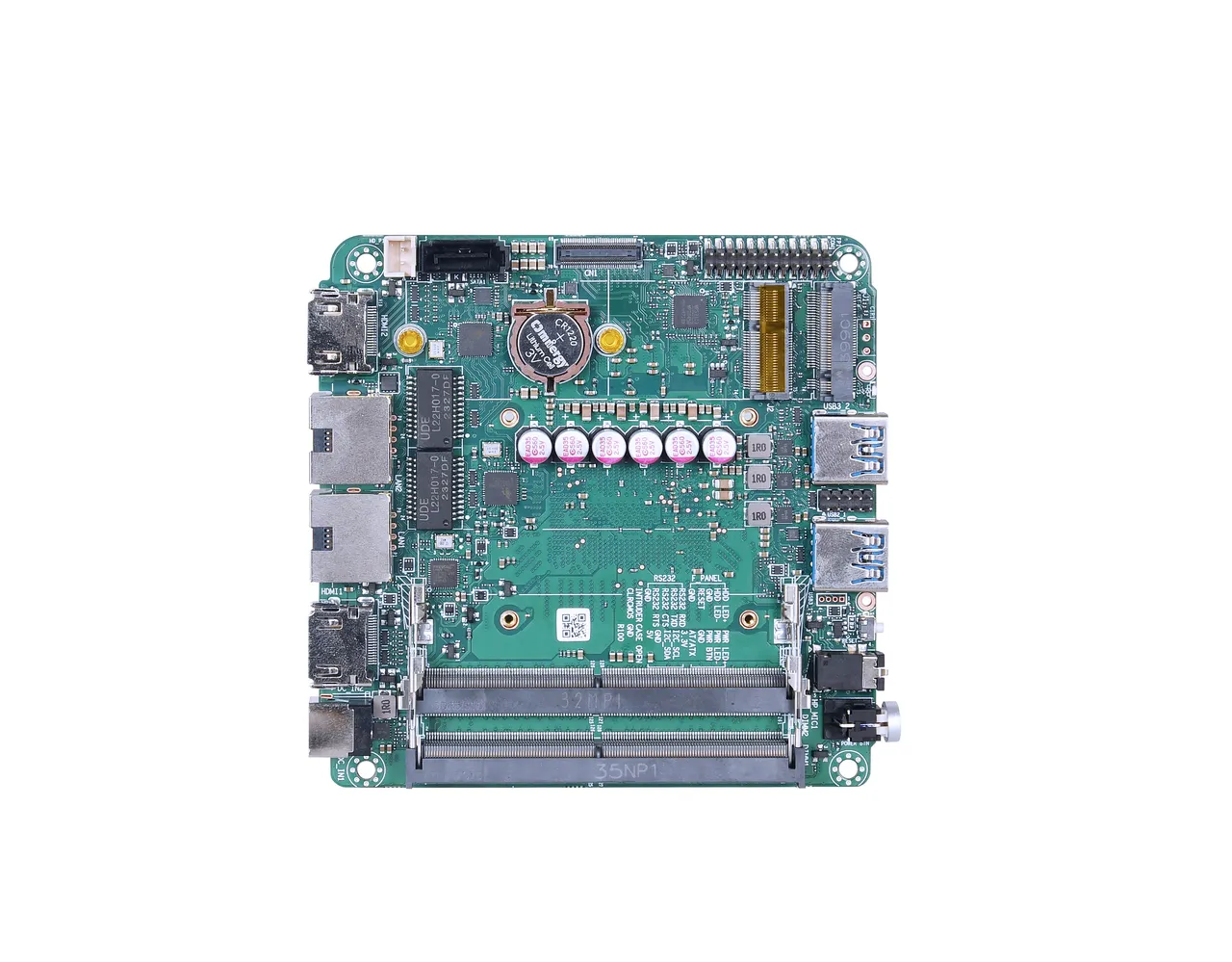

PX700CA	AMD Ryzen 6000/7000, 35W	2× DDR5 SO-DIMM, 64GB	2× HDMI 4K + 2× Type-C (DP 8K)	2× RTL8125B (2.5G)	DC 12–19V, 90W	−20/+60°C

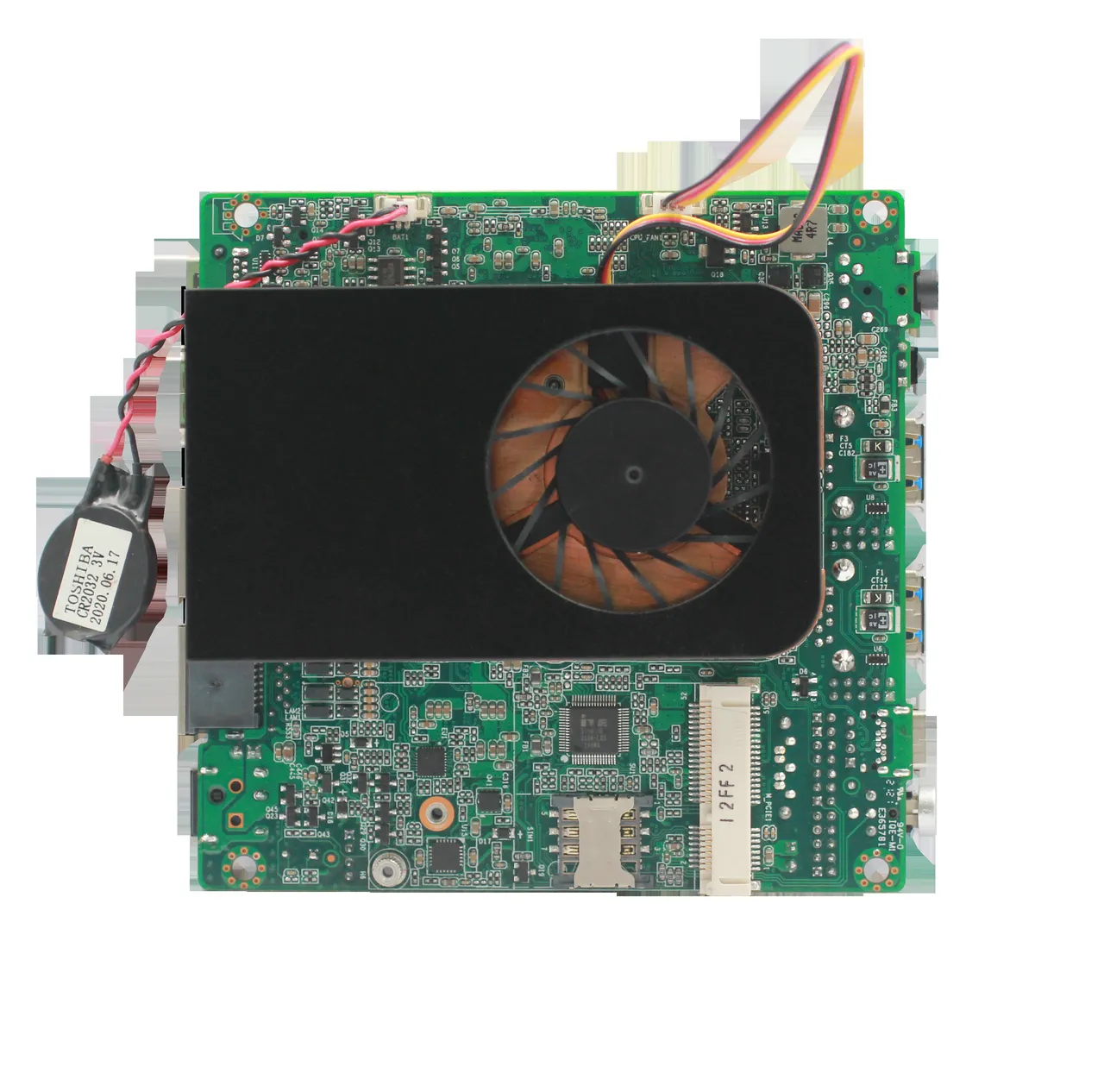

TL500CA	Tiger Lake-U, i5/i7, 28W	2× DDR4-3200, 64GB	HDMI 2.0 4K + MiniDP 4K	2× Intel 2.5G	DC 12–19V, 90W	−20/+60°C
UT100CA	Core Ultra U/H, 28W	2× DDR5 SO-DIMM, 96GB	2× HDMI 2.1 4K + 2× Type-C (DP 4K)	2× Intel i226	DC 12–19V, 90W	−20/+60°C
