NUC · 100×100 MM · R100
AD600CA Industrial Motherboard
Onboard 28W Intel Alder Lake / Raptor Lake with dual HDMI 2.0 4K outputs, two Type-C ports carrying DisplayPort 8K@60Hz alongside USB 3.2 Gen2, and an Intel 2.5G LAN, the AD600CA packs four video paths and up to 64 GB of DDR5 into the 100 × 100 mm NUC footprint. Thermal design stays simple, a 28W part with a 4-pin Smart CPU FAN header leaves heatsink and enclosure choices to your mechanical team.
- CPU
- Onboard Alder/Raptor Lake, 28W
- Memory
- 2× DDR5 SO-DIMM, 64GB
- Display
- 2× HDMI 2.0 4K · 2× Type-C DP 8K
- Network
- 1× Intel 2.5G LAN
- Power
- DC 12–19V, 150W+
- Temperature
- −20/+60°C operating
Sample MOQ 1 pc · reply within 24–48 h · FOB Shenzhen
Why AD600CA
Four reasons the AD600CA keeps showing up
The details below are the ones buyers check before a sample order.
Multi-Display
HDMI pair plus 8K Type-C
Two HDMI 2.0 ports for 4K panels and two Type-C ports carrying DisplayPort 8K@60Hz with USB 3.2 Gen2, four screens out of a 100 mm square.
LAN Choice
Single or dual 2.5G
One Intel 2.5G port by default; add a second for failover or traffic segmentation. Single-LAN builds trade it for an extra rear USB 3.2 Gen2.
Storage
NVMe or SATA on one slot
The M.2 2280 M-Key takes PCIe 4.0 x4 NVMe or SATA 3.0 drives, protocol marked on the order, with a second SATA 3.0 port alongside.
Security
TPM 2.0 without the add-on
CPU-integrated TPM 2.0 ships by default, so BitLocker-class deployments need no extra module; an external TPM 2.0 stays available as an option.
Full specifications
Technical data
Per the AD600CA English specification sheet, R100. Values can be verified against the datasheet on request.
| CPU | Onboard Intel Alder Lake / Raptor Lake · 28W TDP · I3-1215U / I5-1340P / I5-12450H / I5-1240P / I7-1360P · I3-1220P / I3-1315U / I5-1240P / I7-1260P / I9-12900H · EFI BIOS |
|---|---|
| Memory | 2× DDR5 SO-DIMM · up to 64 GB · up to 4800 MHz (12th Gen) / up to 5200 MHz (13th Gen) |
| Storage | 1× M.2 M-Key 2280 (PCIe 4.0 x4 or SATA 3.0 protocol, to be noted on order) · 1× SATA 3.0, 2-pin 5V power |
| Display | 2× HDMI 2.0 (4K@60Hz) · 2× Type-C (DP 8K@60Hz + USB 3.2 Gen2) |
| Network | 1× Intel 2.5G LAN |
| USB & Type-C | 2× USB 3.2 Gen2 side I/O · 1× rear USB 3.2 Gen2 · 1× USB 2.0 pin header (2×5-pin, 2.0 mm) · combo audio jack |
| Serial | 1× RS232 pin header, 2.0 mm pitch |
| Expansion | 1× M.2 E-Key (PCIe + USB 2.0, Wi-Fi/BT) · TPM 2.0 CPU-integrated by default, external TPM 2.0 optional · 1× 4-pin Smart CPU FAN · CIR reserved (software debug) |
| Power | DC 12–19V input · 150W and above |
| Dimensions | 100 × 100 mm · approx. 120 g without heatsink · approx. 220 g with heatsink |
| Environment | −20°C to +60°C operating · 5–90% RH · −40°C to +85°C storage · 5–90% RH |
| Software | Windows 10 · Windows 11 · Linux |
Need a port count that is not listed? Ask the engineer who owns the datasheet.
Ask about AD600CAConfiguration
Ordering options
Options are configured at order time against the standard base board.
| Option | Standard | Optional |
|---|---|---|
| CPU SKU | Selectable at order | I3-1215U · I5-1340P · I5-12450H · I5-1240P · I7-1360P · I3-1220P · I3-1315U · I7-1260P · I9-12900H (Alder Lake / Raptor Lake) |
| LAN | 1× Intel 2.5G | , |
| M.2 2280 protocol | To be noted on order | NVMe PCIe 4.0 x4 · SATA 3.0 |
| Security | CPU-integrated TPM 2.0 | External TPM 2.0 module |
Product photos
AD600CA, every angle

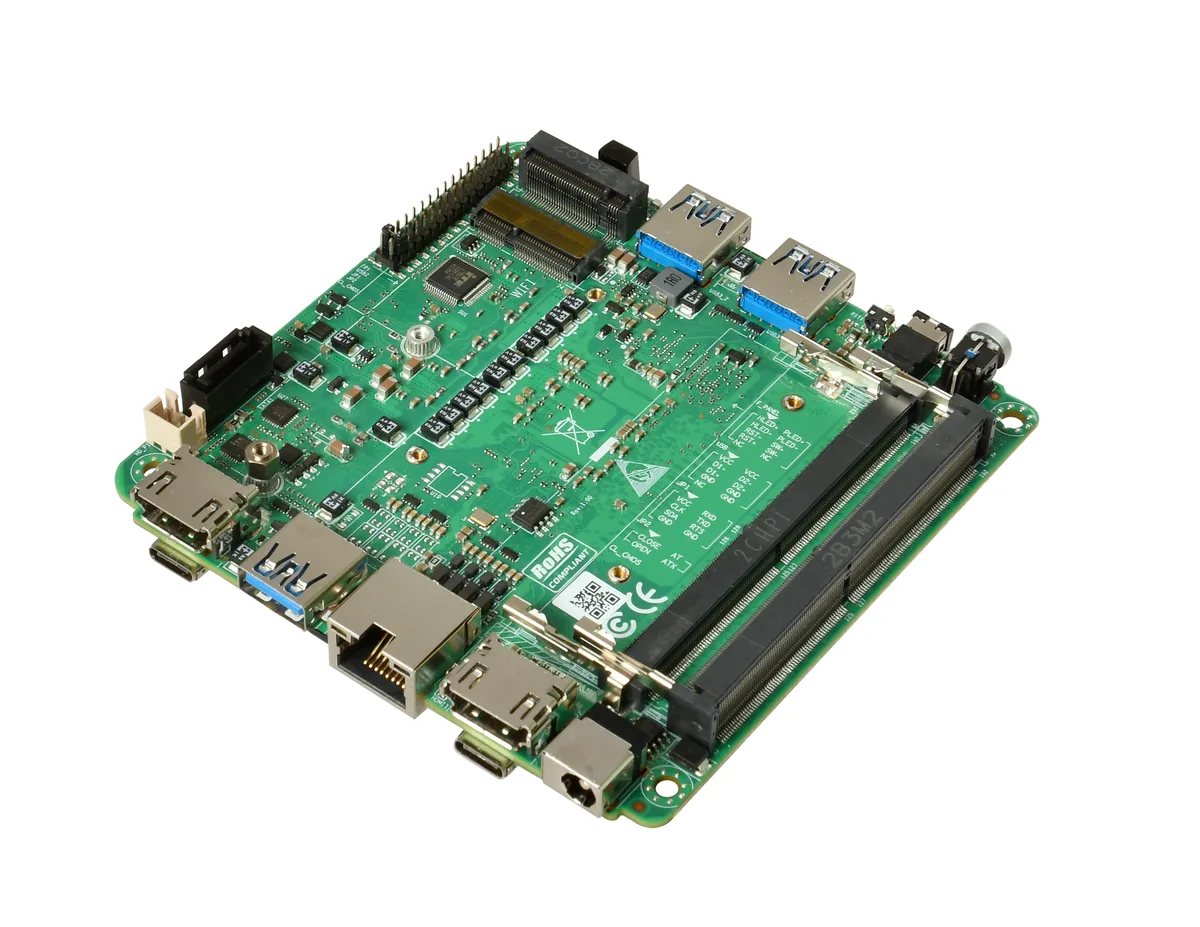

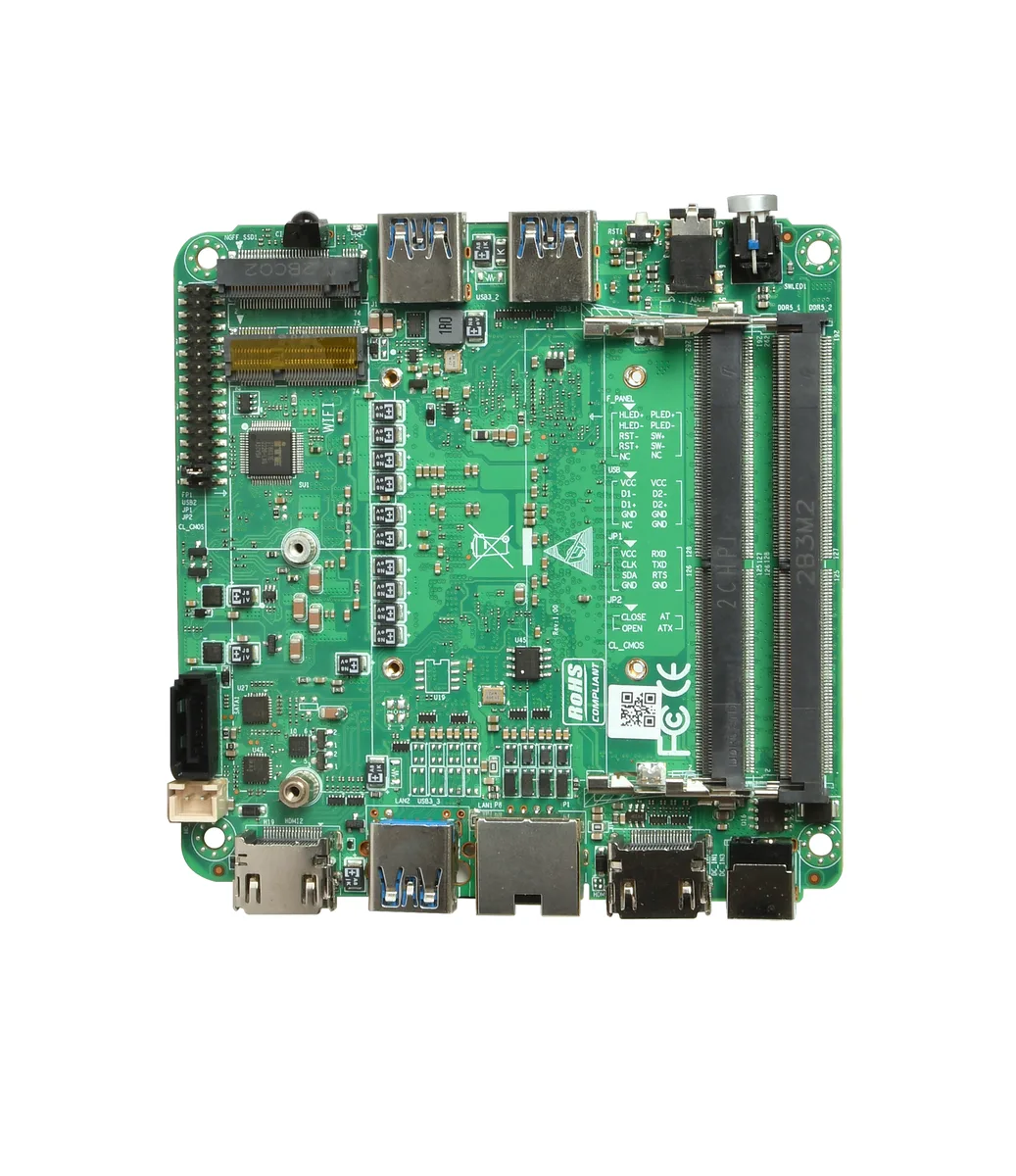

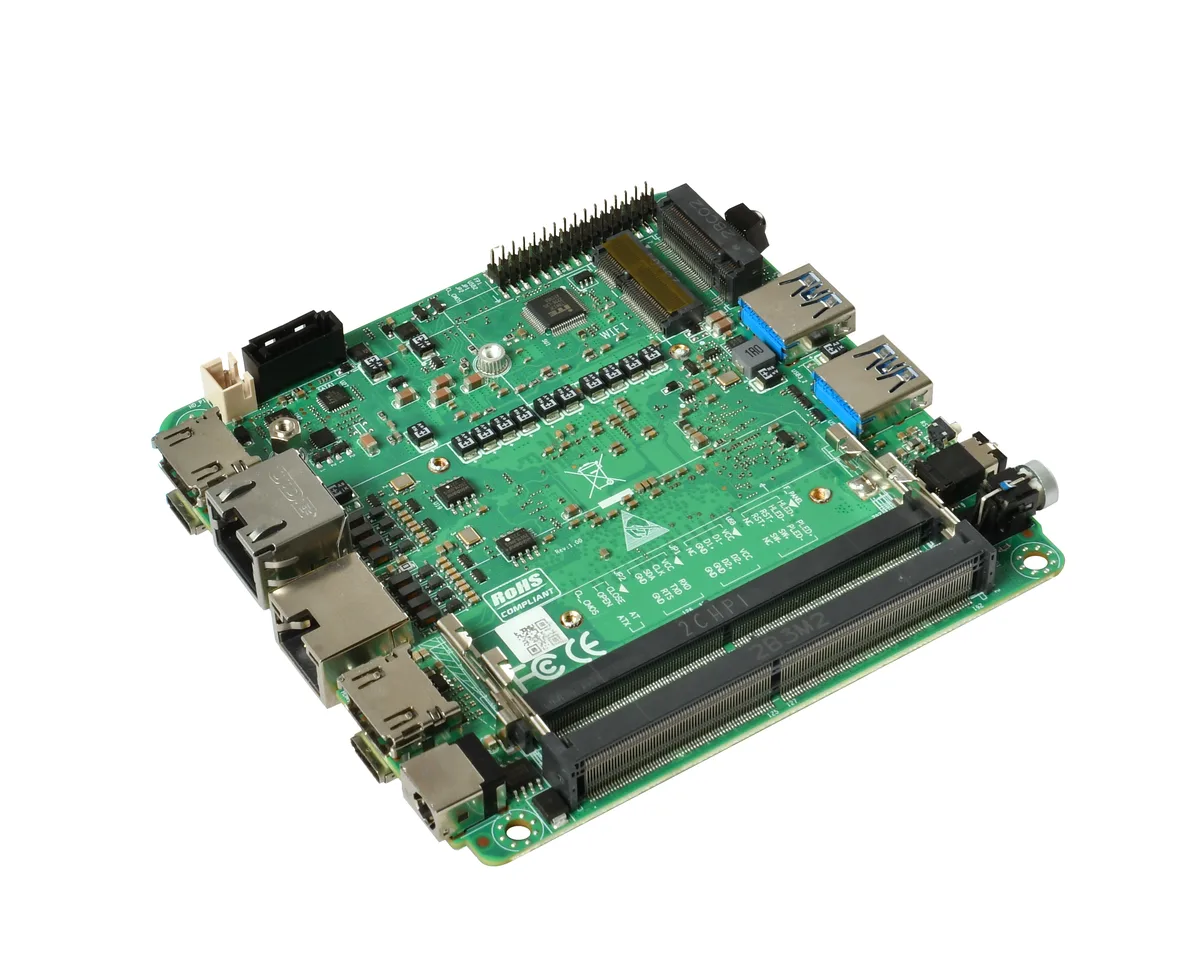

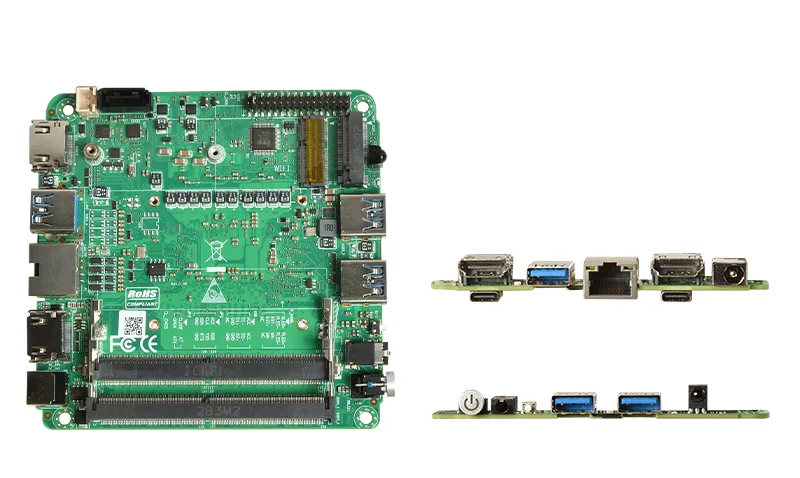

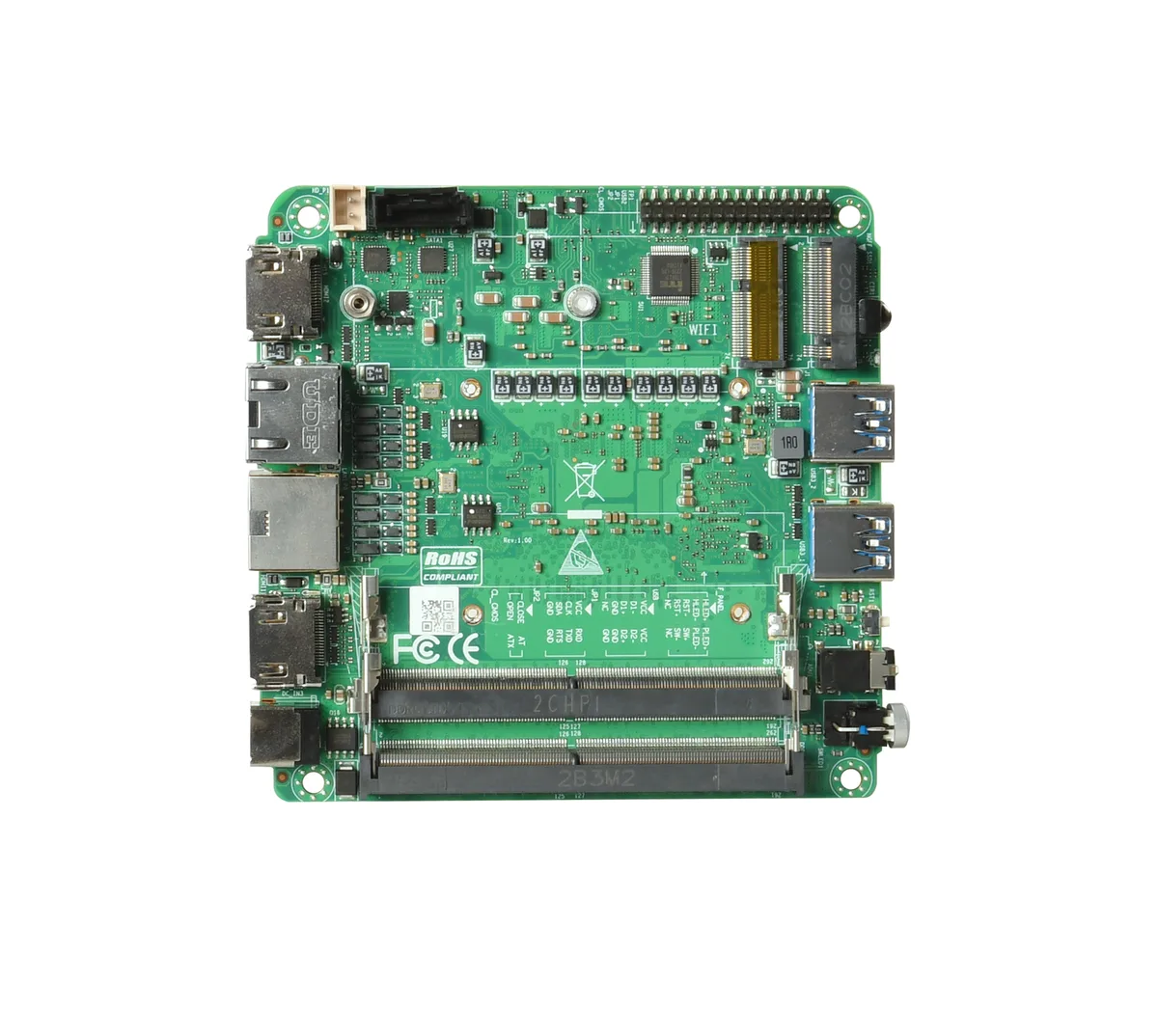

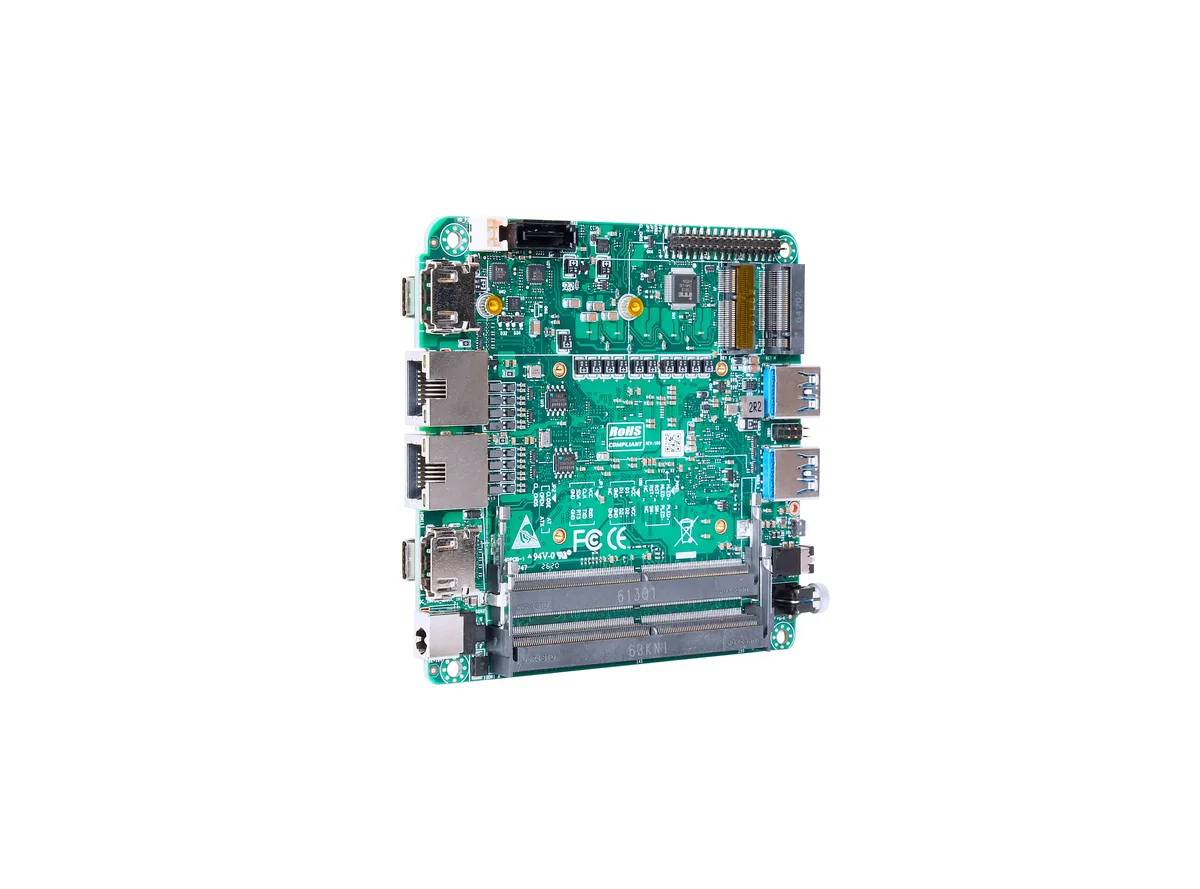

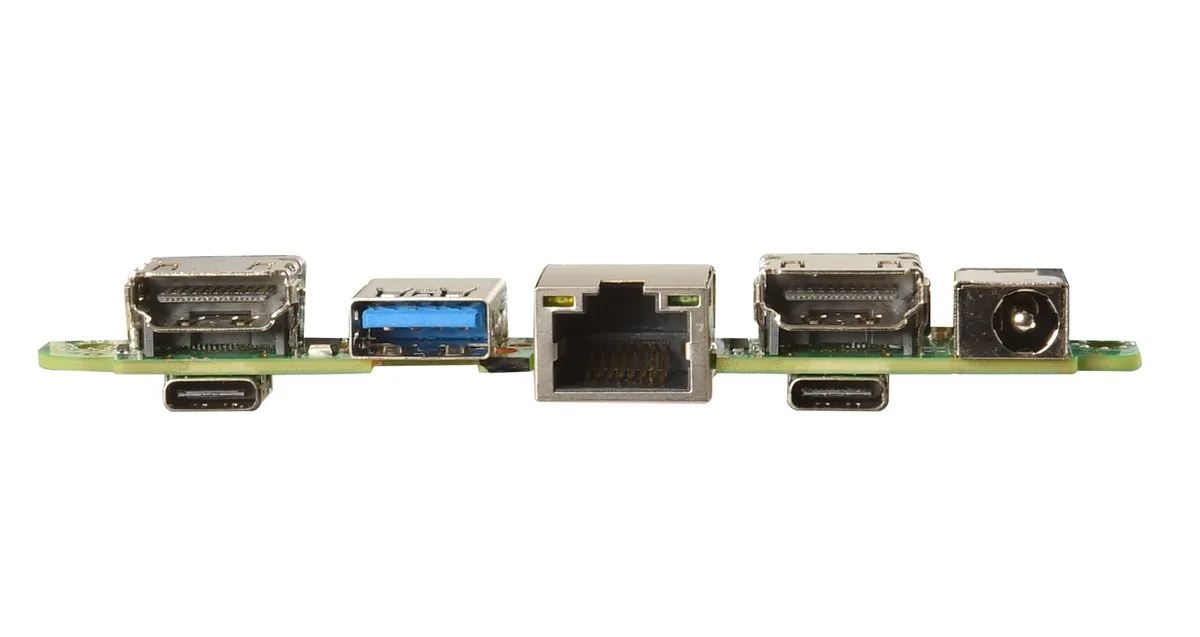

Board, I/O and mounting views from the current production sample.
Where It Fits
Self-service terminals and edge boxes
The AD600CA is for enclosures where the bay is fixed and the uptime target is not negotiable. Typical placements: Wherever the AD600CA lands, the base board stays the same, CPU, LAN and storage are the only variables on the order.
dual HDMI for the customer screen plus an operator mirror or side signage; RS232 and USB 2.0 headers reach printers and card readers.
a 28W heat class and the −20/+60°C range suit sealed plant-floor boxes, with a 4-pin Smart CPU FAN header when airflow is available.
both Type-C ports double as fast USB 3.2 Gen2 peripherals or DP 8K video out, and the 2.5G LAN ties the box into the site network.
