TL500CA Industrial Motherboard

11th Gen Intel Tiger Lake-U at 28W with dual Intel 2.5G LAN, HDMI 2.0 plus MiniDP 4K dual display, and DDR4-3200 up to 64 GB, the TL500CA is the mature, cost-conscious NUC board in the GEOLiNK range, at home in gateways and space-constrained appliances. With DDR4 pricing and a proven 11th-gen platform, it is the board to pick when the job is standard and the budget is fixed.

CPU: Tiger Lake-U, 28W
Memory: 2× DDR4-3200, 64GB
Display: HDMI 2.0 4K · MiniDP 4K
Network: 2× Intel 2.5G
Power: DC 12–19V, 90W
Temperature: −20/+60°C operating

Quote TL500CA Full specifications

Sample MOQ 1 pc · reply within 24–48 h · FOB Shenzhen

Why TL500CA

Four arguments for the board that’s been proven

Memory

DDR4 keeps cost down

DDR4-3200 SO-DIMMs to 64 GB, mature pricing and wide availability where DDR5 bandwidth isn’t the bottleneck.

Modules

MiniPCIe for 3G/4G

A MiniPCIe slot carrying PCIe and USB 2.0 hosts Wi-Fi, 3G or 4G modules directly, no adapter board needed.

Display

HDMI + MiniDP dual

HDMI 2.0 and MiniDP (DP++ for simple adapters) run synchronous or asynchronous dual display up to 4K.

Storage

Short M.2 2242

The NVMe M.2 2242 slot keeps the board compact, and an onboard SATA 3.0 port adds a second drive with 2-pin 5V power.

Full specifications

Technical data

Per the TL500CA English specification sheet, R200. Values can be verified against the datasheet on request.

TL500CA technical specifications
CPU	Onboard Intel 11th Gen Tiger Lake-U · 28W TDP · i5-1135G7 / i7-1165G7
Memory	2× DDR4 SO-DIMM · 3200 MHz · up to 64 GB
Storage	1× M.2 Key-M 2242 (NVMe, PCIe 2x) · 1× SATA 3.0 onboard (2-pin 5V power)
Display	HDMI 2.0 up to 4096×2160 @ 60Hz · MiniDP up to 4096×2304 @ 60Hz (DP++) · MiniDP + HDMI synchronous or asynchronous dual display
Network	2× Intel 2.5G LAN (dual-LAN / multi-LAN)
USB & Type-C	2× USB 3.1 rear · 1× Type-C (dual-sided USB 3.0) · 1× 2× USB 2.0 pin header (2×5-pin, 2.0 mm) · combo audio jack
Serial	1× RS232 serial port
Expansion	1× MiniPCIe (PCIe + USB 2.0, Wi-Fi / 3G / 4G) · 1× 3-pin CPU fan connector · F_Panel 2×5-pin, 2.0 mm
Power	DC 12–19V input · 90W
Dimensions	100 × 100 mm · 110 g without heatsink · 230 g with heatsink
Environment	−20°C to +60°C operating · 0–90% RH non-condensing · −40°C to +85°C storage · 0–90% RH non-condensing
Software	Windows 10 · Windows 11 · Linux

Need a port count that is not listed? Ask the engineer who owns the datasheet.

Ask about TL500CA

Configuration

Ordering options

Options are configured at order time against the standard base board.

TL500CA ordering options
Option	Standard	Optional
CPU SKU	Selectable at order	Core i5-1135G7 · Core i7-1165G7 (Tiger Lake-U, 28W)
Wireless	Module not included	Wi-Fi / 3G / 4G module in MiniPCIe slot
Other	Per ordering information	Subject to order notes

Product photos

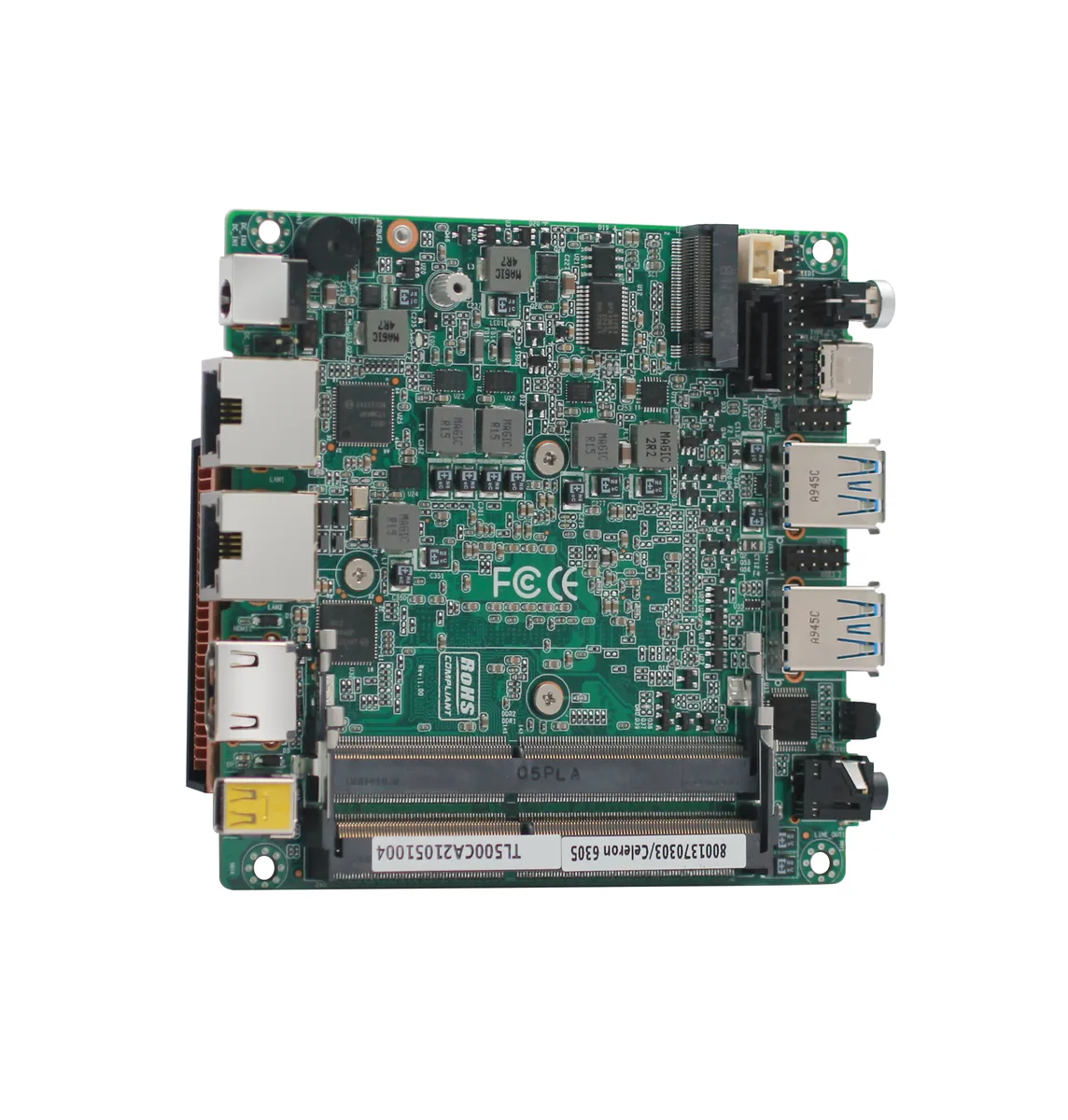

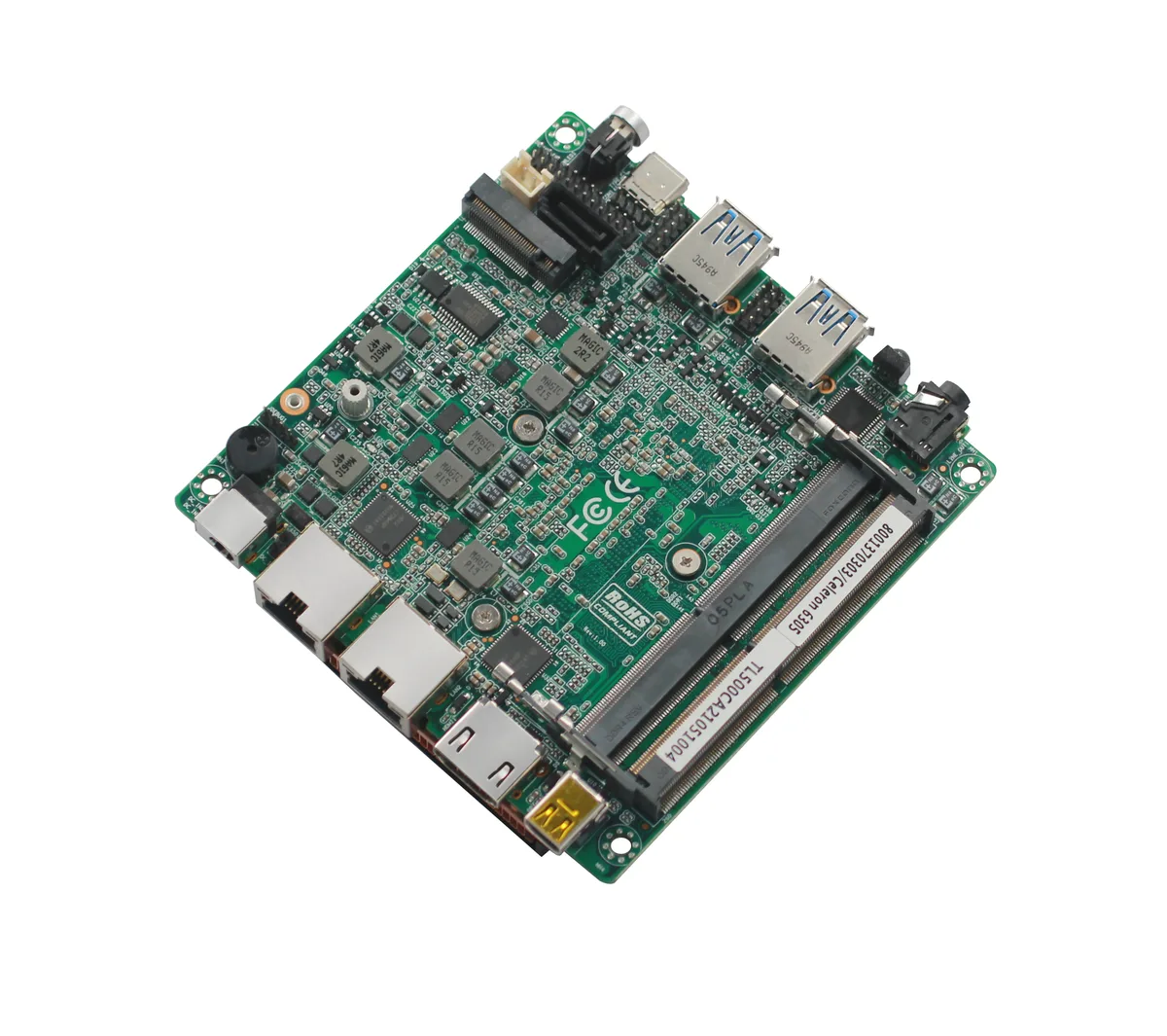

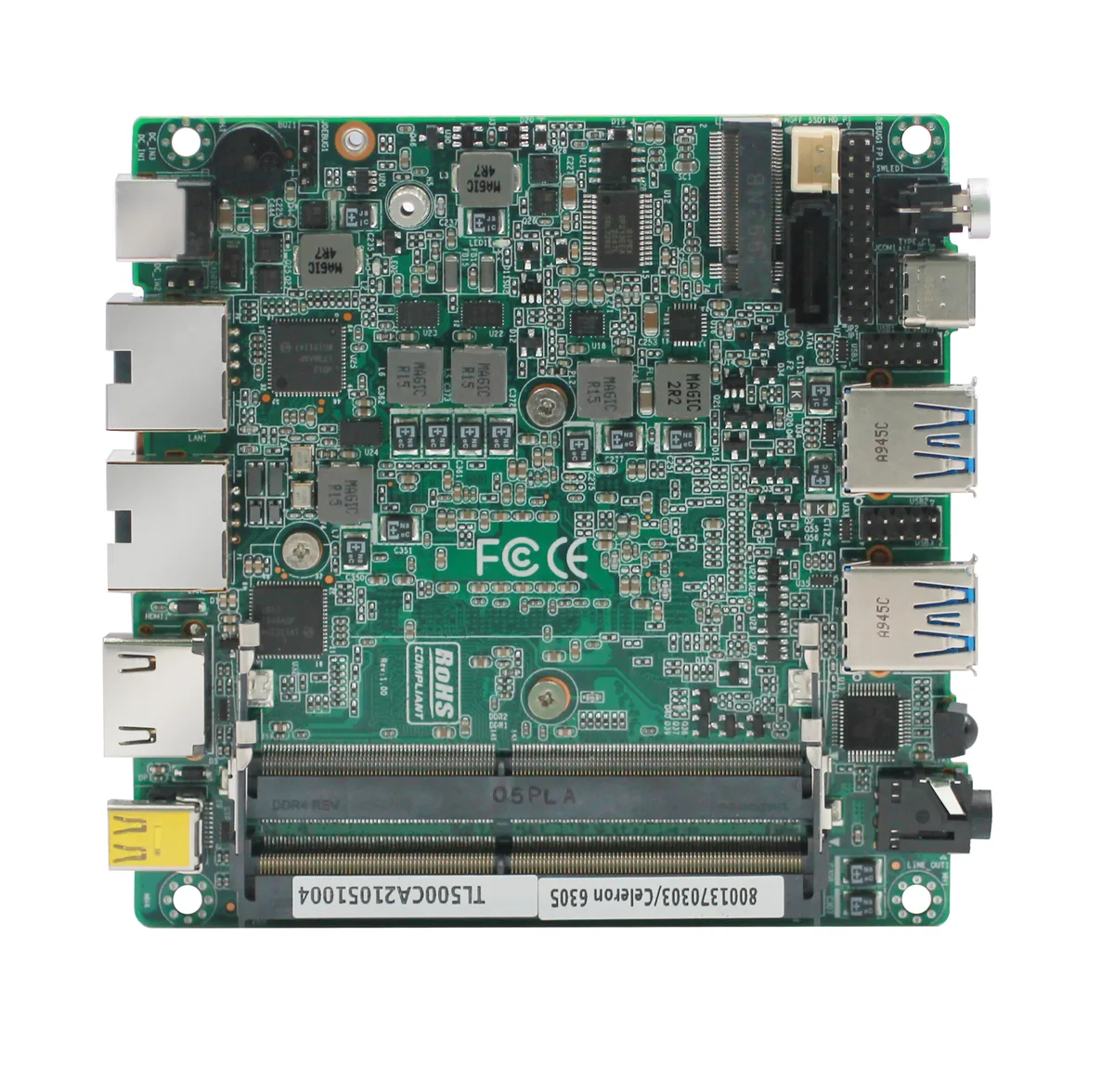

TL500CA, every angle

TL500CA industrial motherboard, detail view

Where It Fits

Gateways, appliances and signage

The TL500CA covers the classic NUC jobs: a small board, two fast LAN ports and enough I/O to hang peripherals off. Typical placements: The TL500CA has been through enough field use that the integration surprises are mostly already found, which is precisely the point of this board.

01Network security appliances

dual Intel 2.5G LAN gives WAN/DMZ/LAN separation in a 100 mm board that fits a shoebox chassis.

02IoT and comms gateways

the MiniPCIe slot hosts Wi-Fi, 3G or 4G modules for sites without fixed broadband.

03Signage and kiosk fallback

HDMI plus MiniDP with DP++ drives two screens, synchronous or independent, in retail and self-service equipment.

Discuss the application
