120 × 120 mm · 5 models · 2026 catalog
NANO-ITX industrial motherboards
The square NANO standard between a credit-card SBC and Mini-ITX. Five models scale from a 6W fanless N100 to Core Ultra 125H or 155H with DDR5-5600, up to four LAN ports with PoE, and DB9 serial on the rear panel.
01 · Why 120 × 120 mm
Square, panel-friendly, network-ready.
120 × 120 mm sits between the credit-card SBC and Mini-ITX. It keeps panel mounting options while adding the ports a gateway or panel PC needs.
Values per the English specification sheets · standard configuration shown where a board offers a CPU, LAN or serial option
02 · The lineup
Five squares, one NANO standard.
All five 120 × 120 mm models. Power class, LAN count and panel output are the three axes.

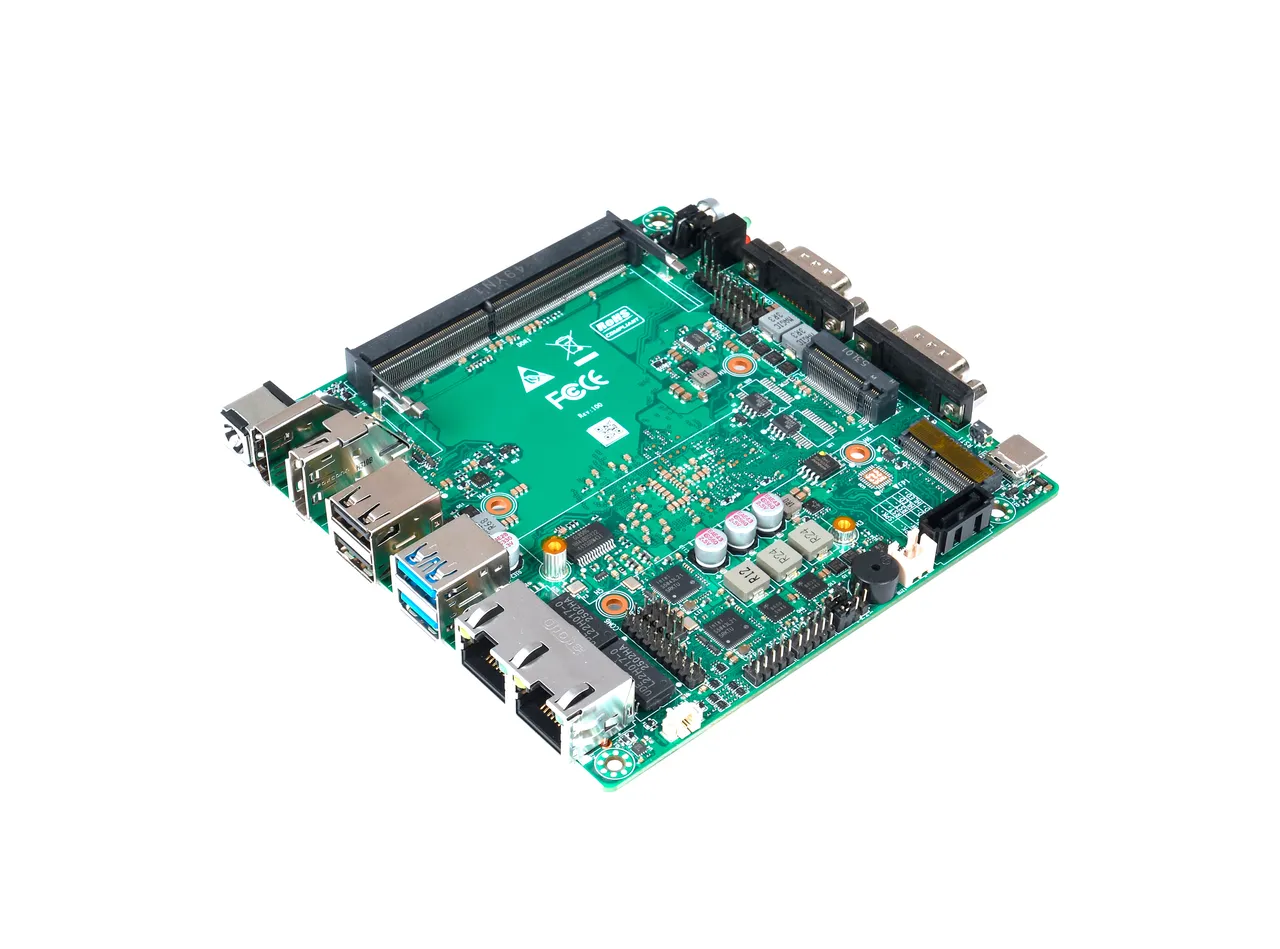

Compare the familyAD30NU
Alder Lake-N · N100 6W 6W fanless DB9 COM Dual LAN Fanless 6W N100, DB9 COM, dual LAN and one-key restore.
02
AD600NA
Alder Lake U/P/H · 28W DDR5 64GB DP 8K 2.5G LAN DDR5 to 64GB, DP and Type-C at 8K, and an Intel 2.5G LAN port.
03

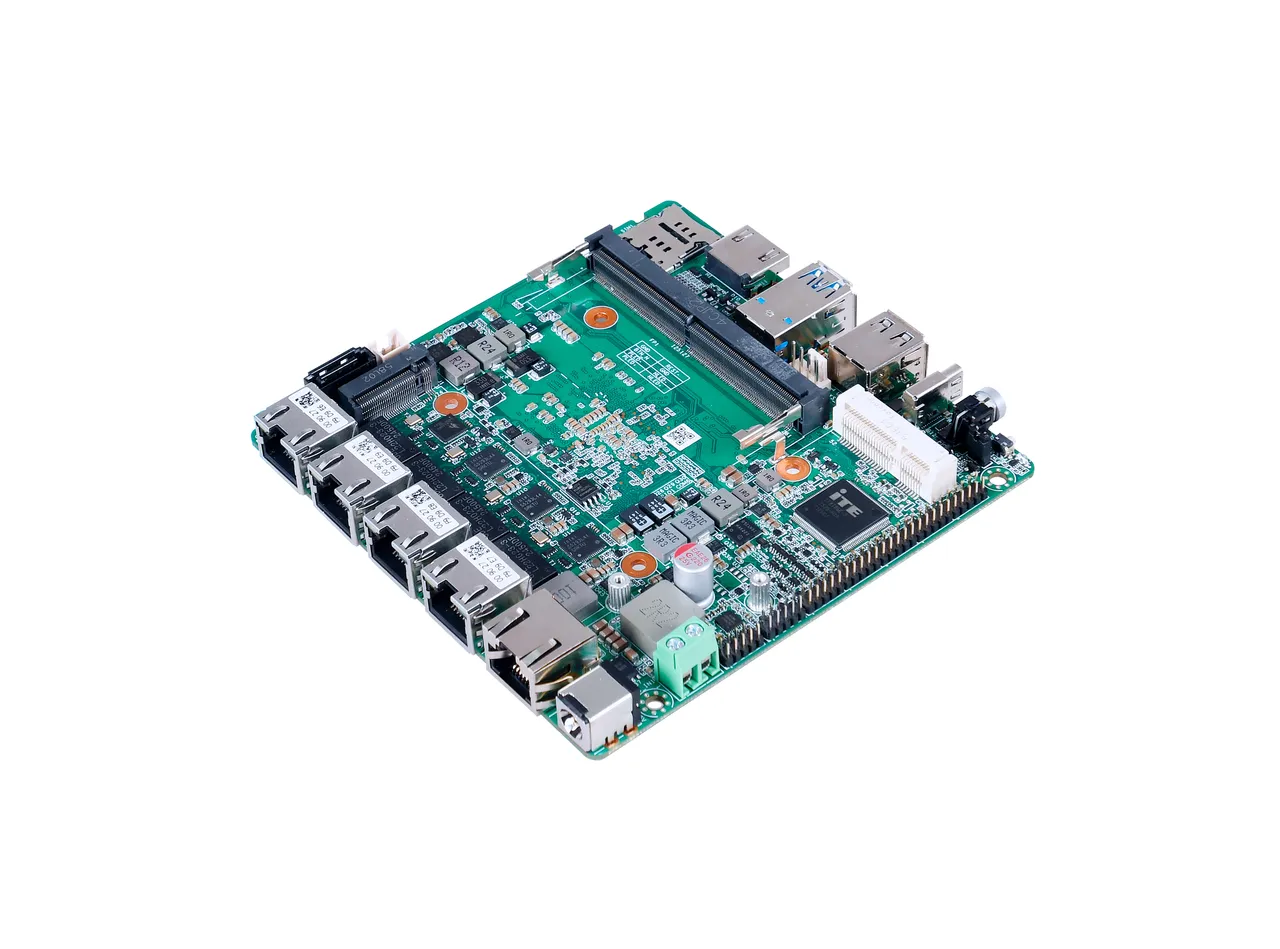

PNM-5210
Twin / Alder Lake · N150-N305 4× LAN PoE PSE 9–36V Four LAN ports, PoE PSE, an RJ45 console and DC 9–36V.
04

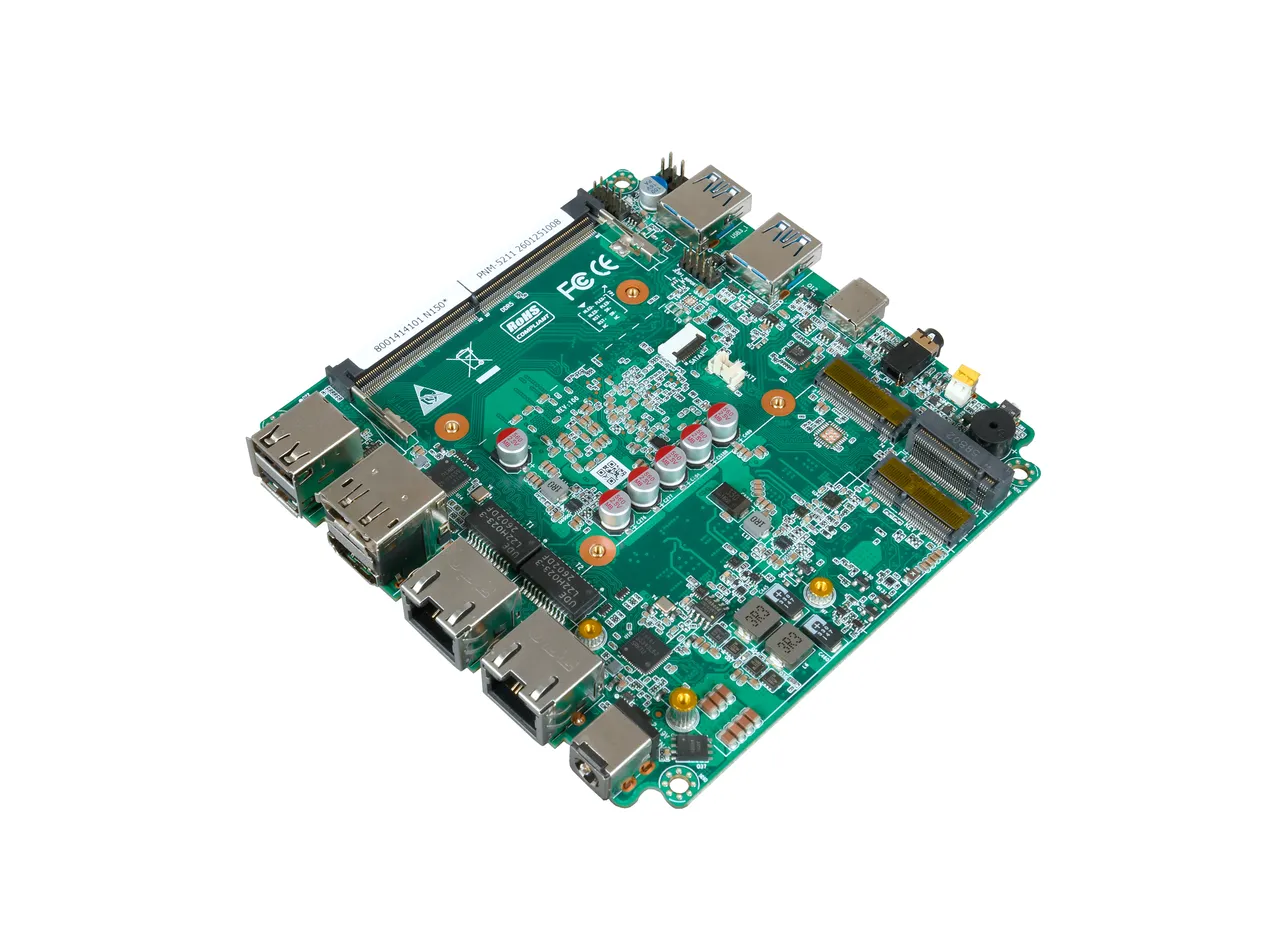

PNM-5211
Twin / Alder Lake-N 2× 2.5G 2× M.2 2280 DDR5-4800 Dual i226-V 2.5G, two M.2 2280 slots and DDR5-4800.
05
UT100NU
Core Ultra · 28W Core Ultra DDR5 96GB 2× 2.5G Core Ultra 125H/155H, DDR5-5600 to 96GB and dual 2.5G.
03 · Model matrix
NANO-ITX line at a glance
Five squares, one standard. CPU, memory, panel output, LAN and power per the English datasheets.
Swipe to compare →| Model | CPU | Memory | Display | LAN | Power | Operating temp |
|---|---|---|---|---|---|---|
| AD30NU | Alder Lake-N, N100 6W (N305 15W) | 1× DDR4 SO-DIMM, 16GB | HDMI 2.0 4K + DP 4K | i226-V 2.5G + i211 GbE | DC 12–19V, 30W | −20/+60°C |
| AD600NA | Alder Lake-U/P/H, 28W | 2× DDR5 SO-DIMM, 64GB | 2× HDMI 4K + DP 8K + Type-C 8K | 1× Intel 2.5G | DC 12–19V, 120W | −20/+60°C |
| PNM-5210 | Twin / Alder Lake, N150 / N305, 15W | 1× DDR5-4800 SO-DIMM, 16GB | HDMI 2.0 4K + Type-C (USB3.2 + DP) | 4× LAN, 3× i226-V + RTL8156B; PoE PSE | DC 9–36V | −20/+60°C |
| PNM-5211 | Twin / Alder Lake-N | 1× DDR5-4800 SO-DIMM, 16GB | HDMI 2.0 4K + DP 4K | 2× Intel i226-V (2.5G) | DC 12–19V | −20/+60°C |
| UT100NU | Core Ultra 125H / 155H, 28W | 2× DDR5-5600, 96GB | HDMI 2.1 4K + DP 2.1 4K | 2× Intel i226-V (2.5G) | DC 12–19V, 120W | −20/+60°C |
Source: published English specification sheets · 5 boards
Back to the lineup04 · Where it fits
Panels, kiosks and gateways.
120 × 120 mm fits the boxes and panels a 170 mm board cannot. Four routes through the industry pages.
All industry routes05 · Other form factors
The same line, five other footprints.
A 120 mm square is a compromise between bay size and port count. These are the families on either side.
All 28 boards
2.5-inch SBC
Soldered LPDDR4/5 to 16GB, 2.5G LAN and a 12–24V input option on the smallest footprint.
3.5-inch SBC
Core Ultra, 12th/13th Gen U-P or Tiger Lake with DDR5 to 96GB and up to three 2.5G ports.
3.5-inch Wide
LPT, PS/2, SPDIF, six COM and AMT for machines that still run legacy peripherals.
Mini-ITX
Socketed LGA1700, Core Ultra or Ryzen with PCIe 4.0 and DDR5 to 96GB.
NUC
Tiger Lake to Ryzen AI, quad display and dual 2.5G in a 100 mm square.
Start a project
Four LAN ports on a 120 × 120 board?
Share the gateway duties and the power budget. We will match the NANO model with the LAN and PoE configuration you need.
