NANO-ITX · 120×120 MM · R100
PNM-5211 Industrial Motherboard
Intel Twin Lake-N on a 120×120 mm board with two M.2 2280 NVMe slots, HDMI and DP at 4K, dual i226-V 2.5G Ethernet and a Type-C port, the PNM-5211 is built for kiosks and smart terminals that must boot fast and stay online.
- CPU
- Onboard Intel Twin Lake-N / Alder Lake-N
- Memory
- 1× DDR5 SO-DIMM, up to 16GB
- Storage
- 2× M.2 2280 NVMe
- Display
- HDMI 2.0 4K · DP 4K · Type-C DP
- Network
- 2× Intel i226-V 2.5G
- Temperature
- −20/+60°C operating
Sample MOQ 1 pc · reply within 24–48 h · FOB Shenzhen
Why PNM-5211
Storage depth on a compact footprint
The details below are the ones buyers check before a sample order.
Storage
Twin M.2 2280 slots
Two PCIe 3.0 x2 NVMe slots let the OS drive and the data drive live separately, mirrored logs for transactional kiosks, or cache plus archive for media boxes.
Connectivity
USB3.0 + Type-C front
Standalone USB 3.0 ports and a Type-C with USB 3.0 and DP alternate mode give service technicians and end users modern plug options.
Networking
Dual i226-V 2.5G
Two Intel 2.5G controllers for POS networks on separate VLANs; LAN2 can be fitted as an Intel i210 on the shared layout if cost matters more than speed.
Durability
Unattended, both drives alive
With −20/+60°C operation and dual M.2 slots, a terminal can boot from the OS drive while the data drive keeps logging, or the pair runs mirrored for redundancy.
Full specifications
Technical data
Per the PNM-5211 English specification sheet, R100. Values can be verified against the datasheet on request.
| CPU | Onboard Intel Twin Lake / Alder Lake-N · UEFI boot firmware |
|---|---|
| Memory | 1× DDR5-4800 SO-DIMM · up to 16 GB |
| Storage | 2× M.2 M-Key 2280 (PCIe 3.0 x2 NVMe) · 1× 12-pin SATA connector |
| Display | 1× HDMI 2.0, 4096×2160@60Hz · 1× DP, 4096×2160@60Hz · 1× Type-C (USB 3.0 + DP) |
| Network | 2× LAN · Intel i226-V 2.5G (LAN2 optional Intel i210, shared layout) |
| USB | 2× USB 3.0 (standalone) · 2× USB 2.0 (connector block) · 1× Type-C (USB 3.0) |
| Audio | 1× 2-in-1 combo audio jack |
| Front Panel | Power button with LED · reset button · DC jack |
| Expansion | 1× M.2 E-Key (PCIe 3.0 / CNVi + USB 2.0, WiFi/BT) · onboard TPM 2.0 (reserved) · 4-pin PWM CPU fan (1.25 mm) · FP1 · AT/ATX header |
| Headers | 2-pin CL_CMOS · BATTERY 2-pin |
| Power | DC 12–19V input (datasheet summary notes DC 12V) |
| Dimensions | 120 × 120 mm |
| Environment | −20°C to +60°C operating, 0–90% RH non-condensing · −40°C to +85°C storage, 0–90% RH non-condensing |
| Software | Windows 10 · Windows 11 · Linux |
Need a port count that is not listed? Ask the engineer who owns the datasheet.
Ask about PNM-5211Configuration
Ordering options
Options are configured at order time against the standard base board.
| Option | Standard | Optional |
|---|---|---|
| CPU | Intel Alder Lake-N | Twin Lake-N series · N150 / N305 |
| LAN 2 | Intel i226-V 2.5G | Intel i210 (shared layout) |
| Security | Onboard TPM 2.0 off (reserved) | Onboard TPM 2.0 enabled |
| Wireless | , | M.2 E-Key WiFi/BT module |
Product photos
PNM-5211, every angle

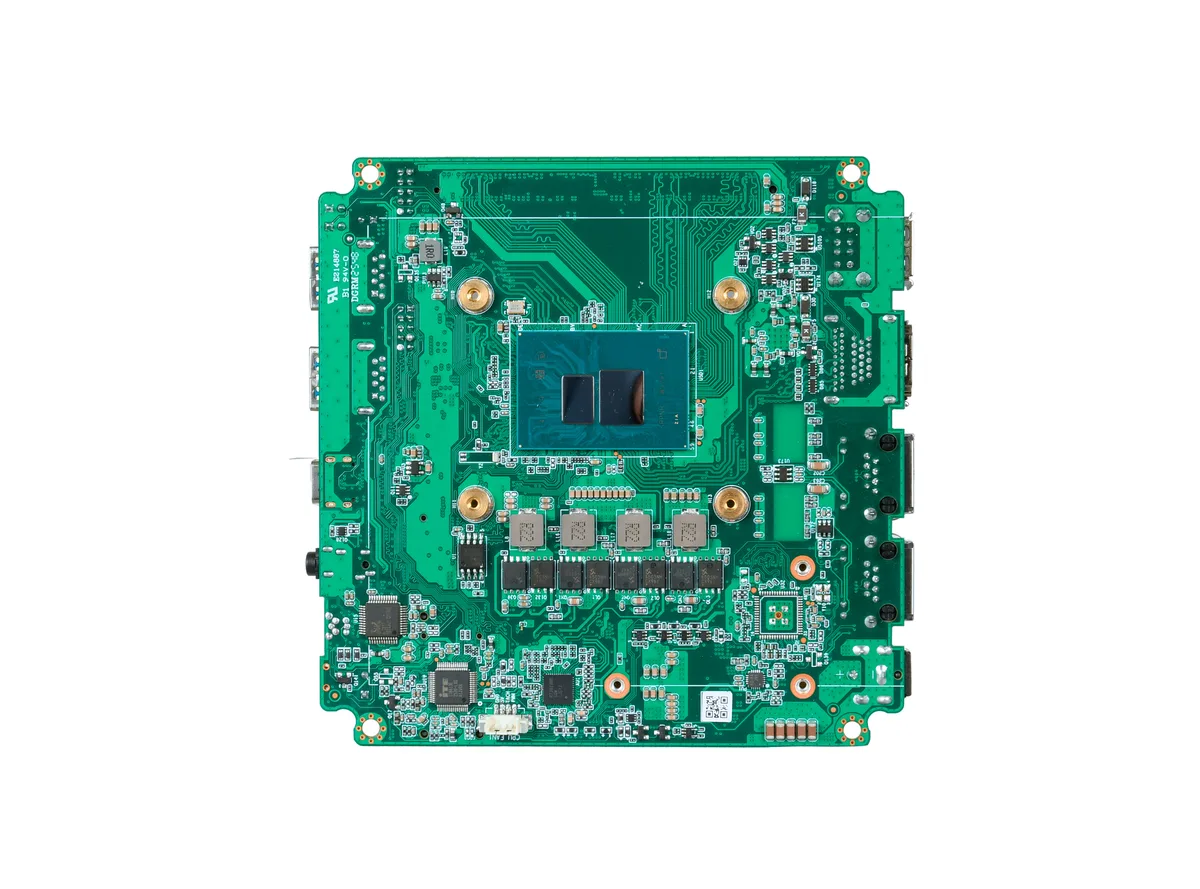

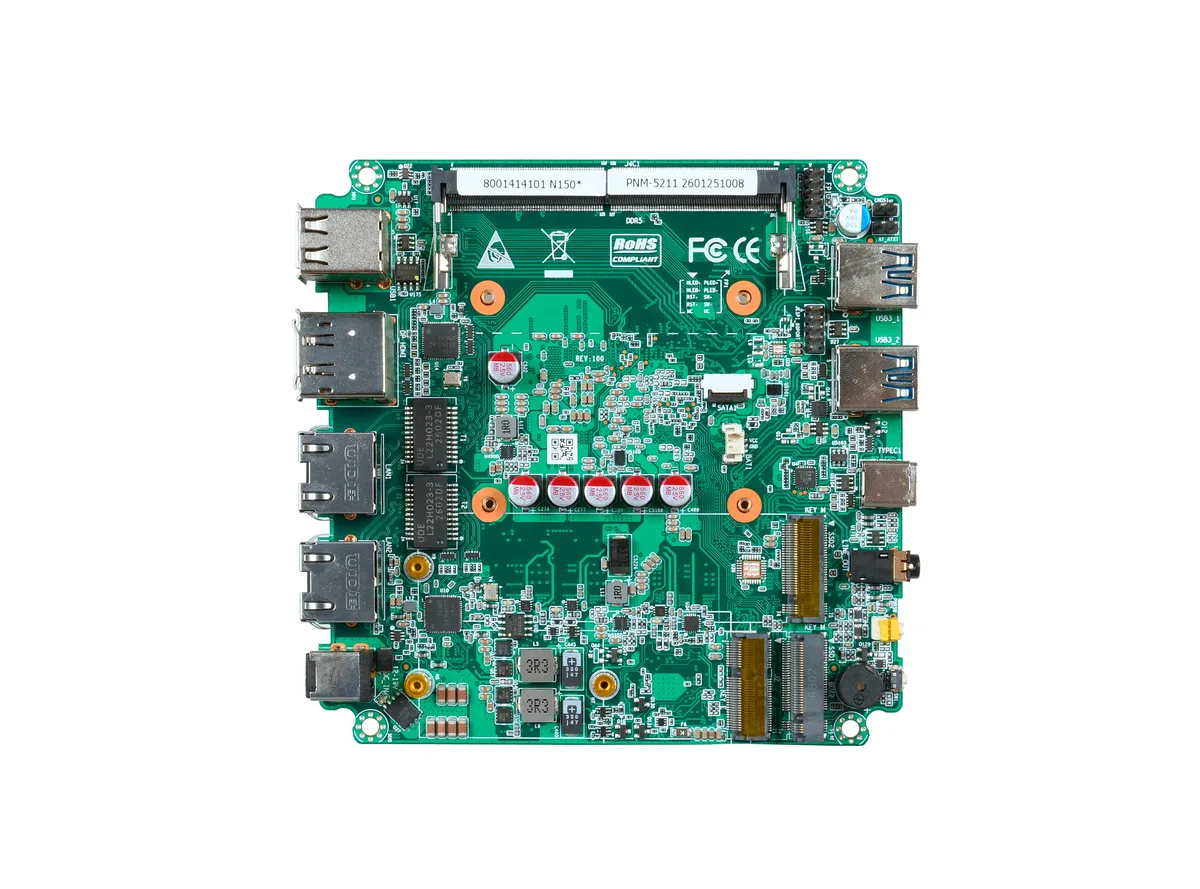

Board, I/O and mounting views from the current production sample.
Where It Fits
Kiosks, terminals and storefront systems
The PNM-5211 trades nothing away in a slim chassis: NVMe depth for local data, serial reach for peripherals, and dual 2.5G for managed retail networks. Typical deployments:
Type-C to the touch panel, USB 3.0 for the card reader, and a second NVMe holding the transaction log.
USB 3.0 and Type-C for printers and scales, with an M.2 E-Key WiFi/BT uplink where cabling is impractical.
HDMI and DP dual 4K output for menu boards, recovered remotely through one-key restore over the second LAN.
