NANO-ITX · 120×120 MM · R101
AD30NU Industrial Motherboard
A 6W Intel Alder Lake-N N100 board on a 120×120 mm footprint, the AD30NU couples a fanless-class CPU with dual Intel i226-V Gigabit Ethernet, six serial channels and a 2.0 mm pitch header set, sized for sealed panel PCs and embedded control boxes.
- CPU
- Onboard Intel N100, 6W (N305 15W optional)
- Memory
- 1× DDR4 SO-DIMM, up to 16GB
- Display
- HDMI 2.0 4K @ 60Hz · DP 4K @ 60Hz
- Network
- 2× Intel i226-V Gigabit LAN
- Power
- DC 12–19V, 30W
- Temperature
- −20/+60°C operating
Sample MOQ 1 pc · reply within 24–48 h · FOB Shenzhen
Why AD30NU
Built for sealed, quiet boxes
The details below are the ones buyers check before a sample order.
Power Budget
6W CPU, 30W system
Alder Lake-N N100 at 6W TDP with a 30W DC input, the whole platform runs cool enough for fanless, dust-sealed enclosures.
Serial Density
Eight serial channels
Two DB9 COM ports, two RS485 and a four-port RS232 header: enough serial legs for SCADA-style field wiring on one 120 mm board.
Networking
Dual i226-V GbE
Two Intel Gigabit ports for control networks on separate segments, or LAN failover in remote equipment; LAN2 can also be an Intel i211.
Footprint
120×120 mm NANO
Vertical HDMI/DP connectors and 2.0 mm expansion headers keep the board flat in shallow panel PC and DIN-rail box builds.
Full specifications
Technical data
Per the AD30NU English specification sheet, R101. Values can be verified against the datasheet on request.
| Model | AD30NU · revision R101 · NANO motherboard 120×120 mm · UEFI boot |
|---|---|
| CPU | Onboard Intel Alder Lake-N · N100 default 6W TDP · N305 15W TDP optional · UEFI BIOS |
| Memory | 1× DDR4 SO-DIMM · up to 16 GB |
| Storage | 1× M.2 M-Key 2280 (PCIe 3.0 x2 NVMe, optional SATA 3.0 protocol) · 1× SATA 3.0 (2-pin power) |
| Display | 1× HDMI 2.0 4096×2160@60Hz (vertical) · 1× DP 4096×2160@60Hz (vertical) |
| Network | 2× Gigabit LAN · Intel i226-V (LAN2 optional Intel i211) |
| Serial | 2× COM (DB9) · 2× RS485 (selectable as 2× RS232) · 4× RS232 header |
| USB | 2× USB 2.0 · 2× USB 3.0 front panel · 1× USB 2.0 header |
| Other I/O | 8-bit GPIO header · Power/HDD LED · power & reset buttons (one-key restore) · buzzer · 2-pin CL_CMOS · 3-pin REST_SEL |
| Power | DC 12–19V input · 30W |
| Dimensions | 120 × 120 mm |
| Environment | −20°C to +60°C operating, 0–90% RH non-condensing · −40°C to +85°C storage, 0–90% RH non-condensing |
| Software | Windows 10 · Windows 11 · Linux |
Need a port count that is not listed? Ask the engineer who owns the datasheet.
Ask about AD30NUConfiguration
Ordering options
Options are configured at order time against the standard base board.
| Option | Standard | Optional |
|---|---|---|
| CPU | Intel N100 (Alder Lake-N, 6W, 4C4T) | N150 · Core i3-N305 (15W) |
| LAN 2 | Intel i226-V GbE | Intel i211 GbE |
| RS485 ports | 2× RS485 on DB9 | 2× RS232 instead |
| Console | , | COM1 supports Console |
| Security | TPM 2.0 off (reserved) | Onboard TPM 2.0 |
| Wireless | , | M.2 E-Key (PCIe 3.0 / CNVi + USB 2.0) WiFi/BT |
| Thermals | Standard heatsink | 7201000133 heatsink (15W CPU + 0.2mm thermal pad) |
Product photos
AD30NU, every angle

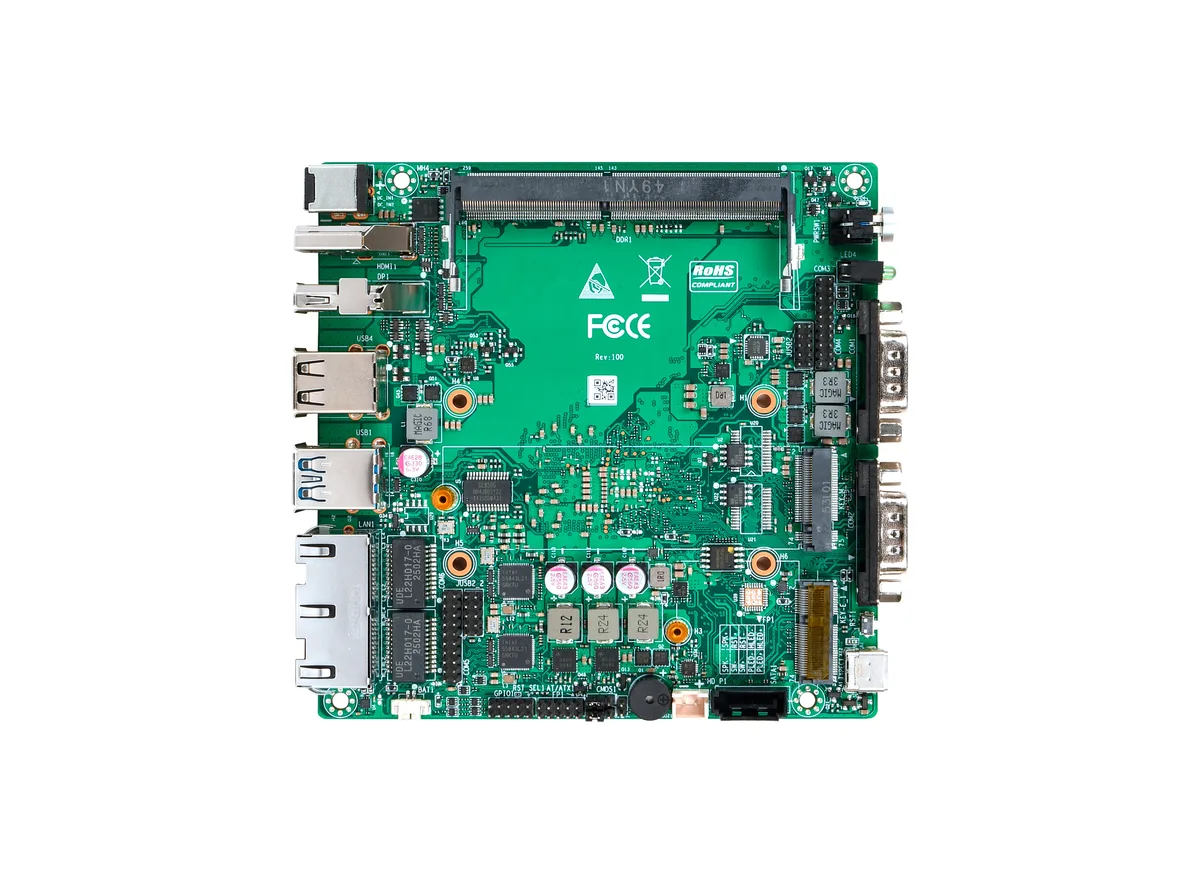

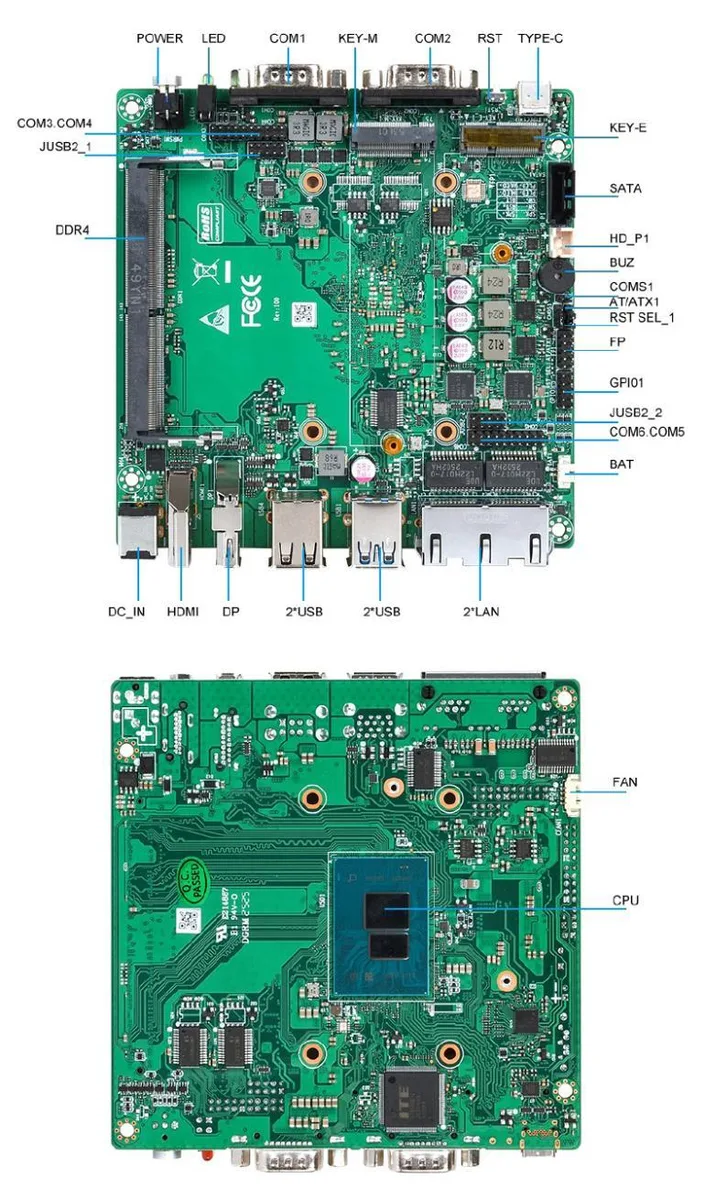

Board, I/O and mounting views from the current production sample.
Where It Fits
Field wiring, panel PCs and OEM lines
The AD30NU is the board to spec when a machine builder needs serial reach, a small fanless footprint and a low power budget. Typical deployments:
RS485 legs to drives and sensors, DB9 COM to the HMI, dual GbE to separate the control and office networks.
the 6W platform keeps the system fanless, so an IP-rated front bezel can close around it without thermal compromises.
with RS232/485 field ports and an M.2 E-Key WiFi/BT option, the board becomes a compact protocol bridge for retrofit projects.
