NANO-ITX · 120×120 MM · 28W
AD600NA Industrial Motherboard
An onboard 28W Intel Alder Lake-U/P/H platform with four independent display paths, dual HDMI 4K, DP 8K and Type-C DP, plus dual-channel DDR5 and 2.5G Ethernet, all on a 120×120 mm NANO board. The AD600NA is the signage-class workhorse of the NANO line.
- CPU
- Onboard Alder Lake-U/P/H, 28W
- Memory
- 2× DDR5 SO-DIMM, up to 64GB
- Display
- 2× HDMI 4K · DP 8K · Type-C DP
- Network
- 1× Intel 2.5G LAN
- Power
- DC 12–19V, 120W
- Temperature
- −20/+60°C operating
Sample MOQ 1 pc · reply within 24–48 h · FOB Shenzhen
Why AD600NA
Four screens, one 120 mm board
The details below are the ones buyers check before a sample order.
Display
Four outputs, 8K ceiling
2× HDMI 2.0 at 4K, a DP at 8K @ 60Hz and a Type-C carrying DP 8K plus USB 3.0, video walls and quad-monitor control desks without a GPU card.
Memory
DDR5 dual channel, 64GB
Two SO-DIMM slots up to 4800 MHz (12th Gen) or 5200 MHz (13th Gen), headroom for browser-heavy dashboards and multi-stream decode.
Networking
2.5G LAN
One Intel 2.5G port alongside the rear USB 2.0 pair, enough bandwidth for CMS and control traffic in networked signage.
Chassis Fit
130g with no heatsink
The bare board weighs about 130 g (250 g with heatsink), light enough for wall-mount media players and slim all-in-one kiosks.
Full specifications
Technical data
Per the AD600NA English specification sheet, current revision. Values can be verified against the datasheet on request.
| CPU | Onboard Intel Alder Lake-U / -P / -H · 28W TDP · I3-1215U / I5-1235U / I5-12450H / I7-1255U / I5-1240P / I7-1260P · EFI BIOS |
|---|---|
| Memory | 2× DDR5 SO-DIMM · up to 64 GB total · 4800 MHz (12th Gen) / 5200 MHz (13th Gen) |
| Storage | 2× M.2 M-Key 2280 (NVMe PCIe 4.0 x4 or SATA 3.0, specify at order) · 1× SATA 3.0 (2-pin 5V power) |
| Display | 2× HDMI 2.0 4K@60Hz · 1× DP 8K@60Hz · 1× Type-C (DP 8K@60Hz + USB 3.0) |
| Network | Intel 2.5G Ethernet · single / dual LAN optional |
| USB | 4× USB 3.0 front · 1× Type-C (USB 3.0) · 1× USB 2.0 header (2×5-pin) · +2× USB 2.0 rear with single-LAN option |
| Serial | 1× RS232/RS485 pin header (2.0 mm pitch) |
| Expansion | 1× M.2 E-Key (PCIe + USB 2.0, WiFi/BT) · external TPM 2.0 optional · 4-pin PWM CPU fan header |
| Front Panel | Power button · reset button · combo audio jack · DC jack |
| Power | DC 12–19V input · 120W and above |
| Dimensions | 120 × 120 mm · approx. 130 g without heatsink / approx. 250 g with heatsink |
| Environment | −20°C to +60°C operating, 5–90% RH · −40°C to +85°C storage, 5–90% RH |
| Software | Windows 10 · Windows 11 · Linux |
Need a port count that is not listed? Ask the engineer who owns the datasheet.
Ask about AD600NAConfiguration
Ordering options
Options are configured at order time against the standard base board.
| Option | Standard | Optional |
|---|---|---|
| CPU SKU | I5-1235U (28W) | I3-1215U · I5-12450H · I7-1255U · I5-1240P · I7-1260P |
| LAN | 1× Intel 2.5G | , |
| M.2 SSD protocol | NVMe PCIe 4.0 x4 | SATA 3.0 protocol |
| Security | CPU-integrated TPM 2.0 | External TPM 2.0 module |
| Wireless | , | M.2 E-Key WiFi/BT module |

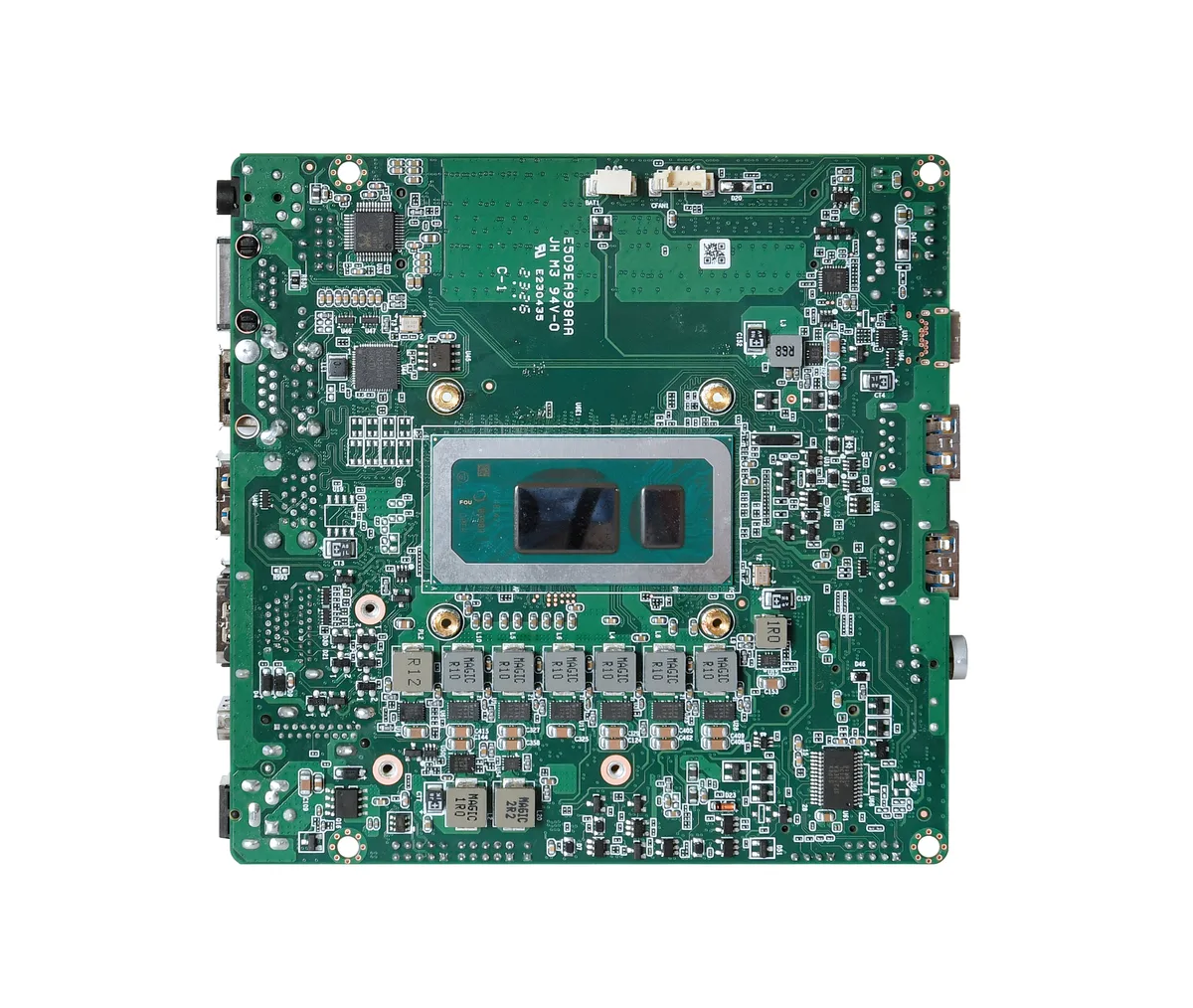

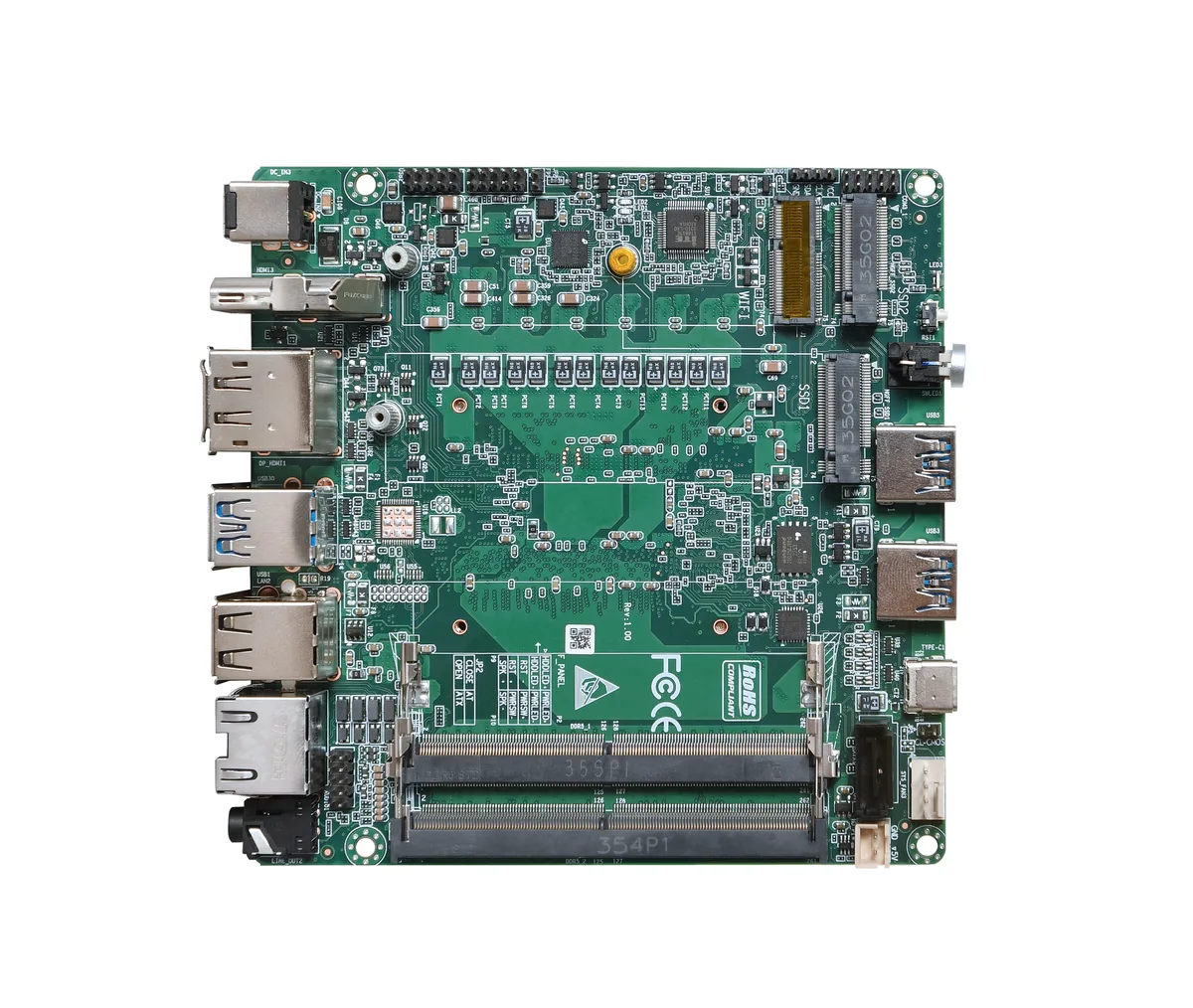

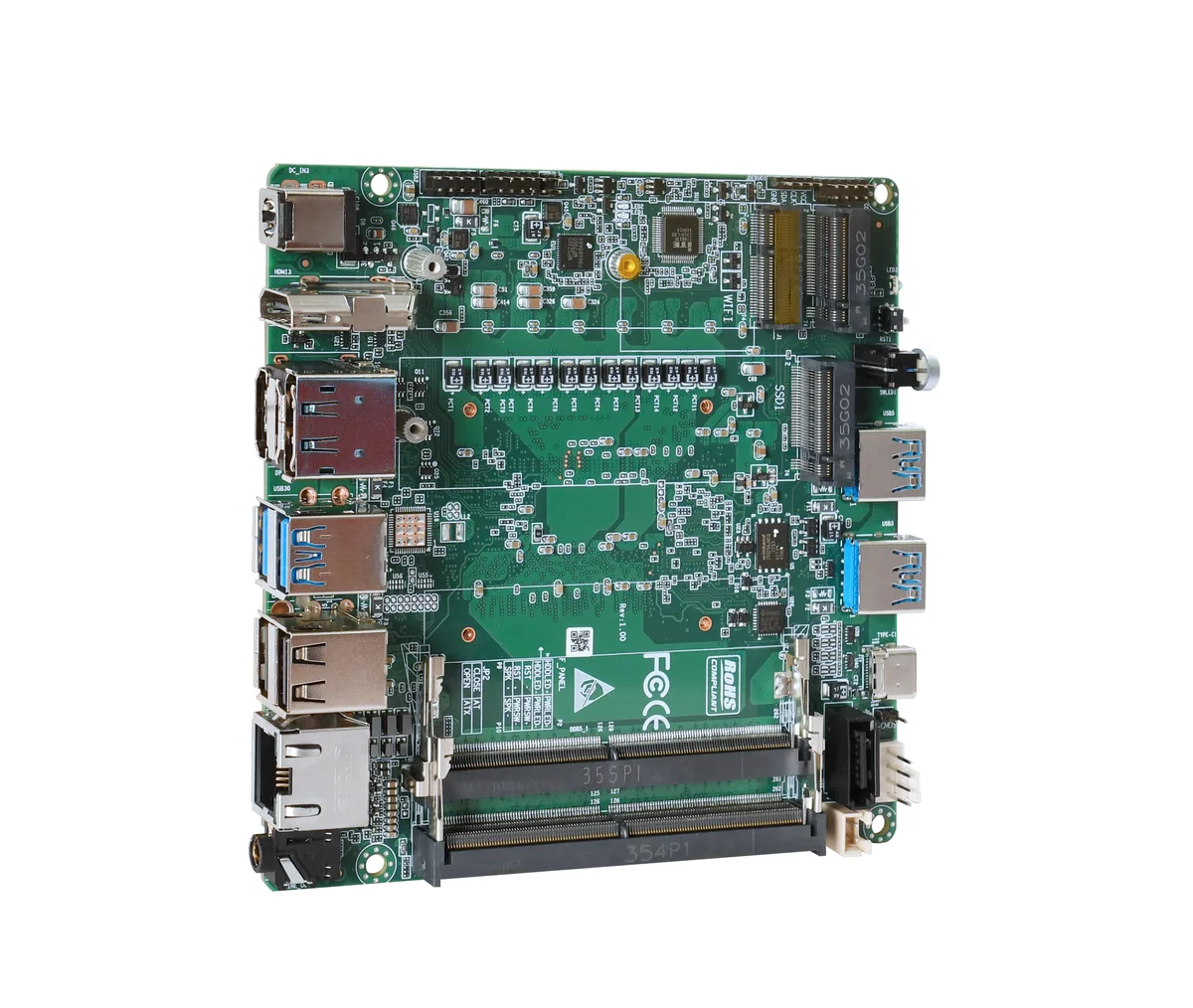

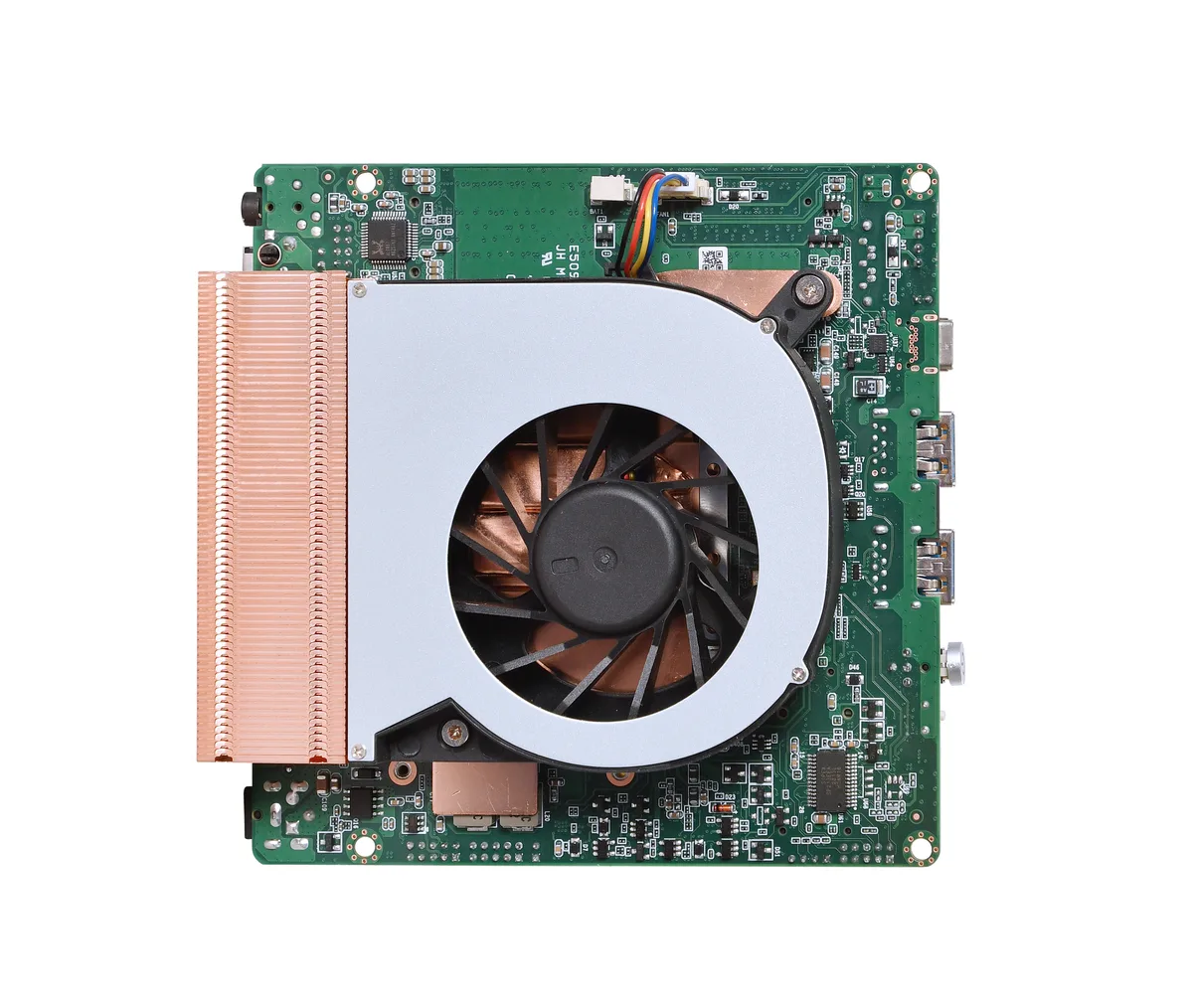

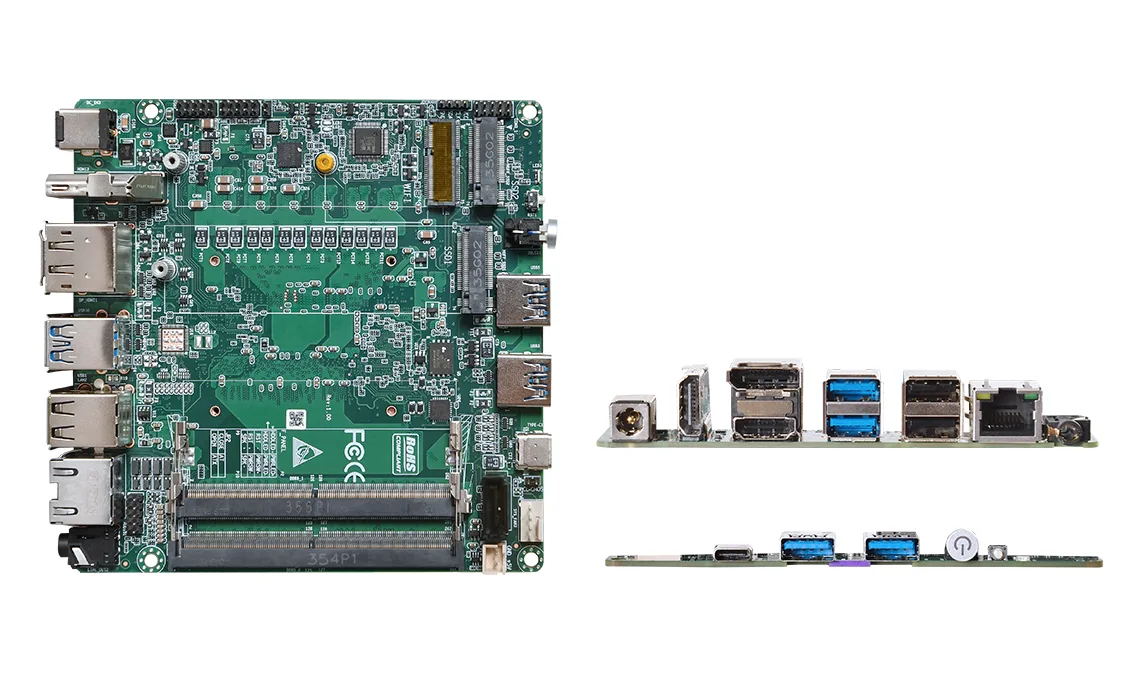

Product photos
AD600NA, every angle
Board, I/O and mounting views from the current production sample.
Where It Fits
Video walls and multi-screen control
The AD600NA replaces a discrete GPU in display-heavy builds where every watt and every millimeter counts. Typical deployments:
one board driving dual 4K panels over HDMI while DP feeds a third preview screen, with 2.5G backhaul for content sync.
quad monitors for process dashboards, plus the serial header for badge readers and the combo audio for alerts.
Type-C out for direct panel connection and a 130 g board weight that keeps wall mounts simple.
