100 × 72 mm · 4 models · 2026 catalog
2.5-inch industrial SBCs
Four boards at the credit-card end of the line. Alder Lake-N and Twin Lake sit alongside the Phytium E2000Q, with soldered LPDDR4/5 to 16 GB, a 12V input and 12–24V on the PDM-5110 for gateways, IoT nodes and tight OEM cavities.
01 · Why 100 × 72 mm
The credit-card workhorse.
The footprint is chosen for the cavity first. These four rows are what 100 × 72 mm buys once the board is inside.
Values per the English specification sheets · options noted where a board offers a choice
02 · The lineup
Four small boards, one footprint.
All four 100 × 72 mm models. Platform, memory and network density are the three axes that separate them.
Compare the familyAD742A
Alder Lake-N / Twin Lake · N100-N150 LPDDR5 16GB 2.5G + PoE N100 to N150, one 2.5G port with optional PoE and 16GB LPDDR5.
02

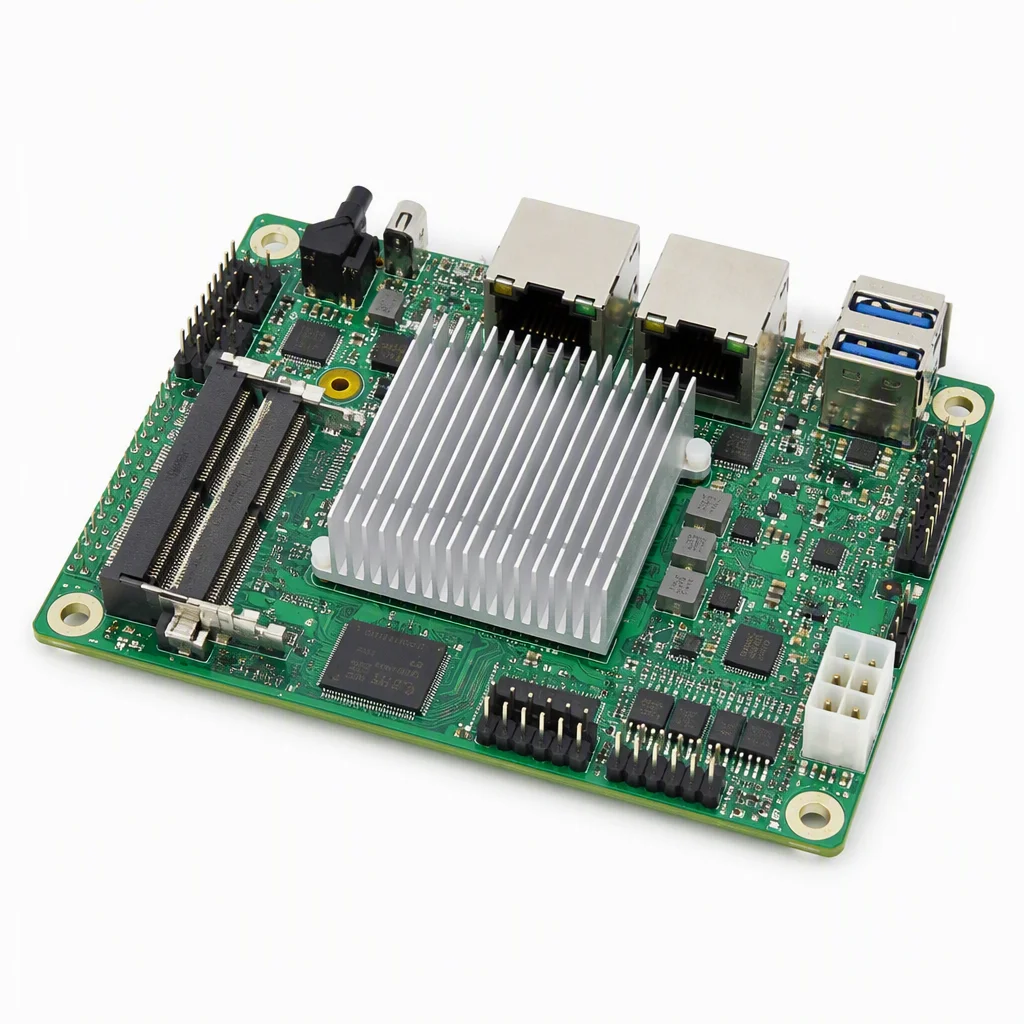

FTEQ20A
Phytium E2000Q · 4-core LPDDR4 8GB 2× CAN Kylin Phytium E2000Q, Kylin support, 2× CAN and LPDDR4 at 4 or 8GB.
03

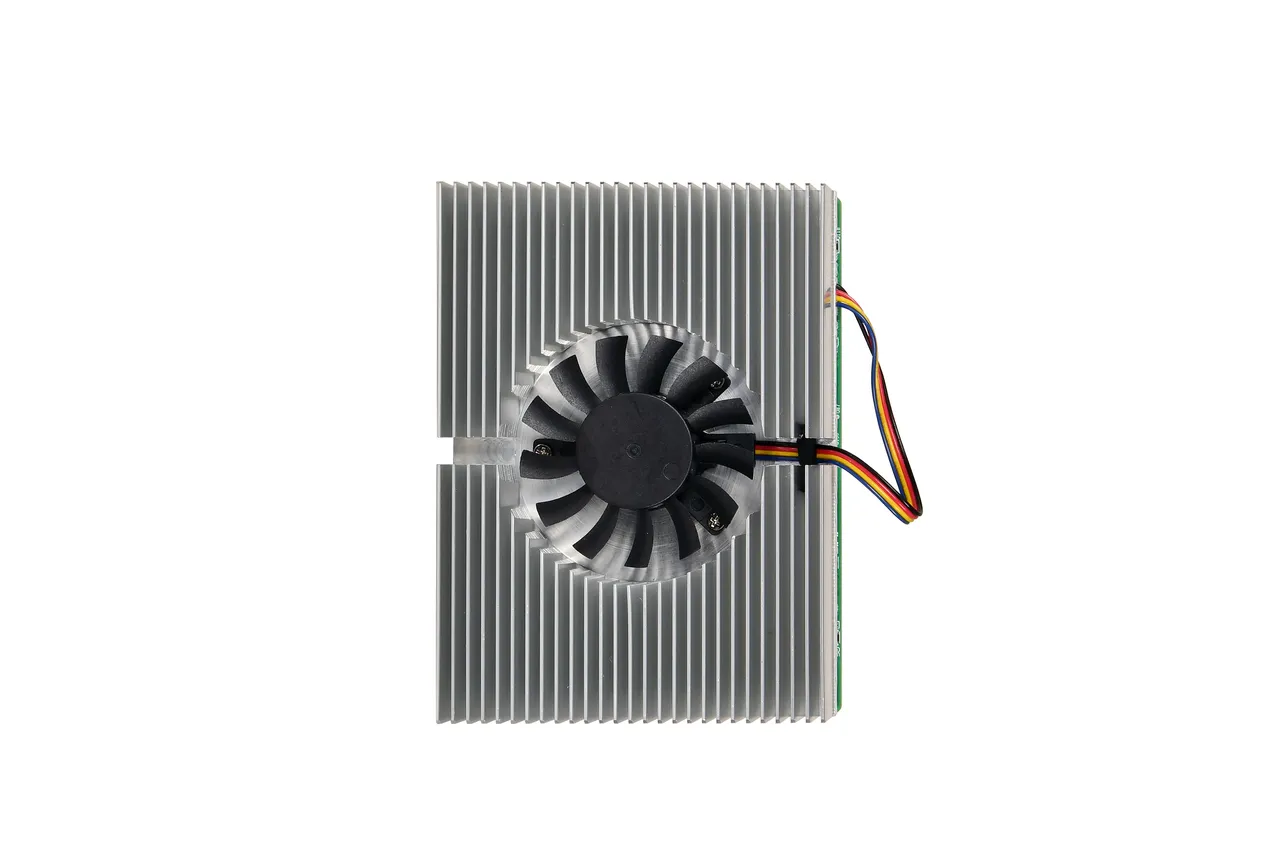

UT1002AW
Core Ultra · 28W LPDDR5 16GB HDMI 2.1 4K M.2 ×2 Core Ultra at 28W, HDMI 2.1 4K@144Hz, dual M.2 and 16GB LPDDR5.
04
PDM-5110
Alder Lake-N / Twin Lake · N97-N305 LPDDR5-4800 2× 2.5G PoE PSE Dual 2.5G i226-V, LPDDR5-4800, PoE PSE header and a DC 12–24V input.
03 · Model matrix
2.5-inch line at a glance
CPU, memory, display, LAN and power side by side. The lineup above links to each model page for the full specification and photo set.
Swipe to compare →| Model | CPU | Memory | Display | LAN | Power | Operating temp |
|---|---|---|---|---|---|---|
| AD742A | Alder Lake-N / Twin Lake, N100 / N305 / N150 | Onboard LPDDR5, 16GB | HDMI 2.0 4K@60Hz + LVDS/eDP | 1× Intel i226-V, PoE optional | DC 12V, 60W | −20/+60°C |
| FTEQ20A | Phytium E2000Q, 4-core (2× FTC664 + 2× FTC310) | Onboard LPDDR4, 4/8GB | HDMI 1080p + eDP + LVDS 24-bit | 1× Ethernet | DC 12V | −20/+60°C |
| UT1002AW | Intel Core Ultra, 28W | Onboard LPDDR5, 16GB | HDMI 2.1 4K@144Hz + LVDS | 1× Intel i226-V 2.5G | DC 12V, 120W | −20/+60°C |
| PDM-5110 | Alder Lake-N / Twin Lake, N97 / N100 / N150 / N305 (6-15W) | Onboard LPDDR5-4800, 16GB | Mini-DP + HDMI 2.0 + Type-C, 4K@60Hz; LVDS/eDP | 2× Intel i226-V | DC 12–24V, 60W | −20/+60°C |
Source: published English specification sheets · 4 boards
Back to the lineup04 · Where it fits
Inside the box, not the data centre.
100 × 72 mm boards land in DIN-rail boxes, wall terminals and handheld instruments. Four routes through the industry pages.
All industry routes05 · Other form factors
The same line, five other footprints.
If the cavity changes, the platform logic does not. These are the families either side of 100 × 72 mm.
All 28 boards
3.5-inch SBC
Core Ultra, 12th/13th Gen U-P or Tiger Lake with DDR5 to 96GB and up to three 2.5G ports.
3.5-inch Wide
LPT, PS/2, SPDIF, six COM and AMT for machines that still run legacy peripherals.
Mini-ITX
Socketed LGA1700, Core Ultra or Ryzen with PCIe 4.0 and DDR5 to 96GB.
NANO-ITX
6W fanless to 28W Core Ultra, up to four LAN with PoE, on a 120 mm square.
NUC
Tiger Lake to Ryzen AI, quad display and dual 2.5G in a 100 mm square.
Start a project
A credit-card board for a tight cavity?
Send the internal dimensions of the enclosure and the workload. We will name the 100 × 72 mm model that fits first time, with lead time and price.
