2.5-Inch SBC · 100×72 MM
PDM-5110 Industrial Motherboard
The I/O-heavy member of the 2.5-inch family: onboard Alder Lake-N or Twin Lake-N from N97 to i3-N305, two Intel i226-V 2.5G ports, triple 4K@60Hz display out and LPDDR5-4800 to 16 GB, on a 100×72 mm board that takes DC 12–24V for vehicles, cabinets and portable instruments.
- CPU
- Alder Lake-N / Twin Lake-N, N97–i3-N305
- Memory
- Onboard LPDDR5 4800, up to 16GB
- Display
- Mini-DP · HDMI 2.0 · Type-C DP, 4K@60Hz
- Network
- 2× Intel i226-V 2.5G
- Power
- DC 12–24V, 60W
- Temperature
- −20/+60°C operating
Sample MOQ 1 pc · reply within 24–48 h · FOB Shenzhen
Why PDM-5110
Four things the port list doesn’t say
The rear panel tells you the count, these are the consequences that matter when the board is inside a product.
Display
Three 4K streams
Mini-DP, HDMI 2.0 and Type-C (DP alt mode) all run 4096×2160@60Hz, plus LVDS or eDP for the embedded panel, selected in BIOS.
Network
Dual i226-V 2.5G
Two Intel ports for teaming or traffic isolation, with an M.2 E-Key slot carrying WiFi or BT on the same board.
Input
DC 12–24V native
One PDM-5110 spans a 12V vehicle rail and a 24V cabinet supply, no DC-DC card in between, and 60W covers the i3-N305 peak.
Platform
Six CPU options
N97 to i3-N305 with TDP from 6W (N150) to 15W, size the thermal budget to the workload, not the other way around.
Full specifications
Technical data
Per the PDM-5110 English specification sheet, current revision. Values can be verified against the datasheet on request.
| CPU | Onboard Intel Alder Lake-N / Twin Lake-N · N97 / N100 / N150 / i3-N300 / i3-N305 / X7213E · TDP 6–15W (N97 12W · N150 6W · X7213E 10W) · EFI BIOS |
|---|---|
| Memory | Onboard LPDDR5 4800 MHz · up to 16 GB |
| Storage | 1× M.2 M-Key 2242 · NVMe PCIe 3.0 x2 / SATA 3.0 |
| Display | 1× Mini-DP 4096×2160@60Hz · 1× HDMI 2.0 4096×2160@60Hz · 1× Type-C (USB 3.2 + DP) 4096×2160@60Hz · 1× LVDS / 1× eDP (BIOS select) |
| Network | 2× Intel i226-V 2.5G LAN · 1× M.2 E-Key (PCIe 3.0 / CNVI + USB 2.0) for WiFi / BT |
| USB | 2× USB 3.0 rear · 2× USB 2.0 pin headers |
| Serial | 2× COM · RS232 / RS422 / RS485 |
| Other I/O | Audio combo jack · FP1 front panel · speaker · AT / ATX · PoE PSE header · CPU FAN header |
| Power | DC 12–24V · 60W |
| Dimensions / Weight | 100 × 72 mm · approx. 165 g without heatsink |
| Environment | −20°C to +60°C operating (0–90% RH, non-condensing) · −40°C to +85°C storage |
| Software | Windows 10 · Windows 11 · Linux · TPM 2.0 optional (external) |
Need a port count that is not listed? Ask the engineer who owns the datasheet.
Ask about PDM-5110Configuration
Ordering options
Options are configured at order time against the standard base board.
| Option | Standard | Optional |
|---|---|---|
| CPU SKU | N97 (12W) / N100 / N150 (6W) | i3-N300 · i3-N305 · X7213E (up to 15W) |
| Memory | Onboard LPDDR5 4800, capacity at order | Up to 16 GB |
| Panel output | LVDS | eDP (BIOS select, one at a time) |
| Wireless | M.2 E-Key slot empty | WiFi / BT module fitted |
| Security | TPM off | External TPM 2.0 |
| OS image | Windows 10 / 11 · Linux | Factory image / custom OS config |

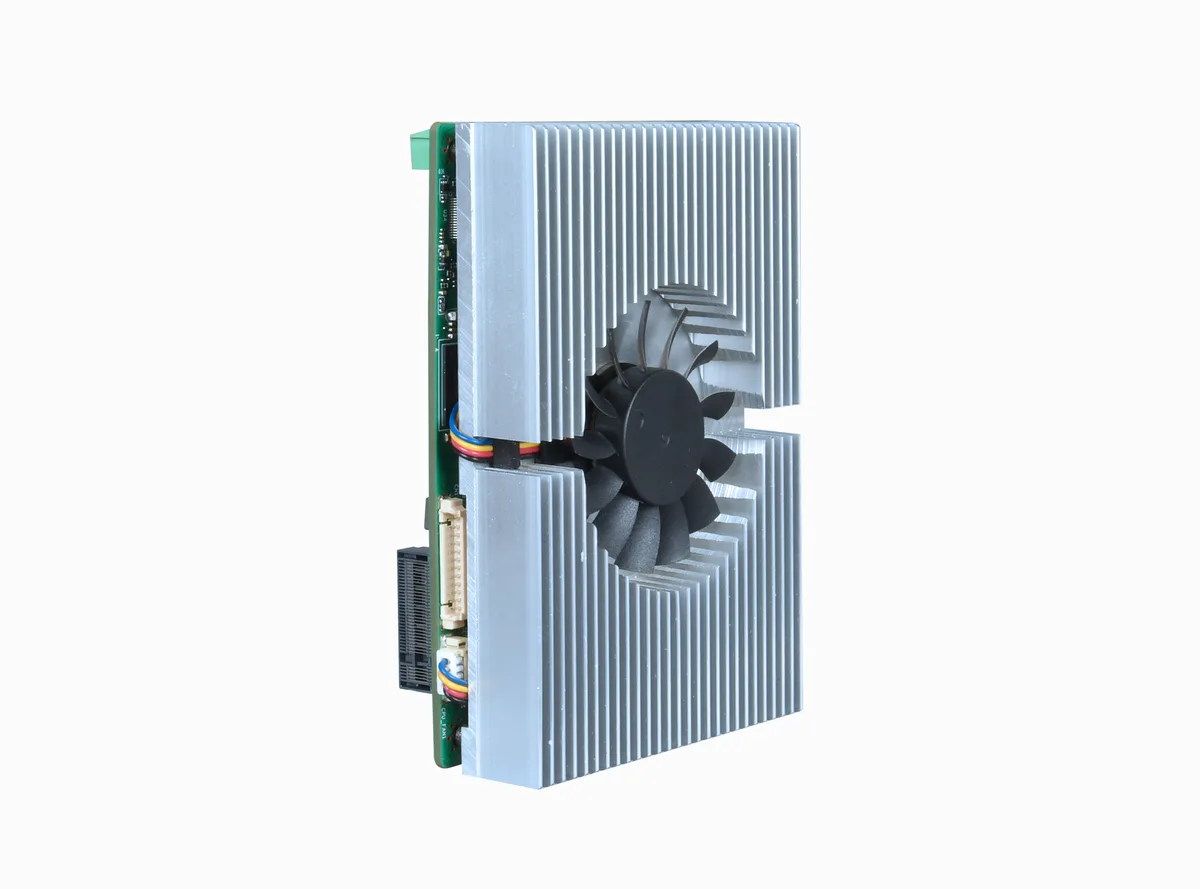

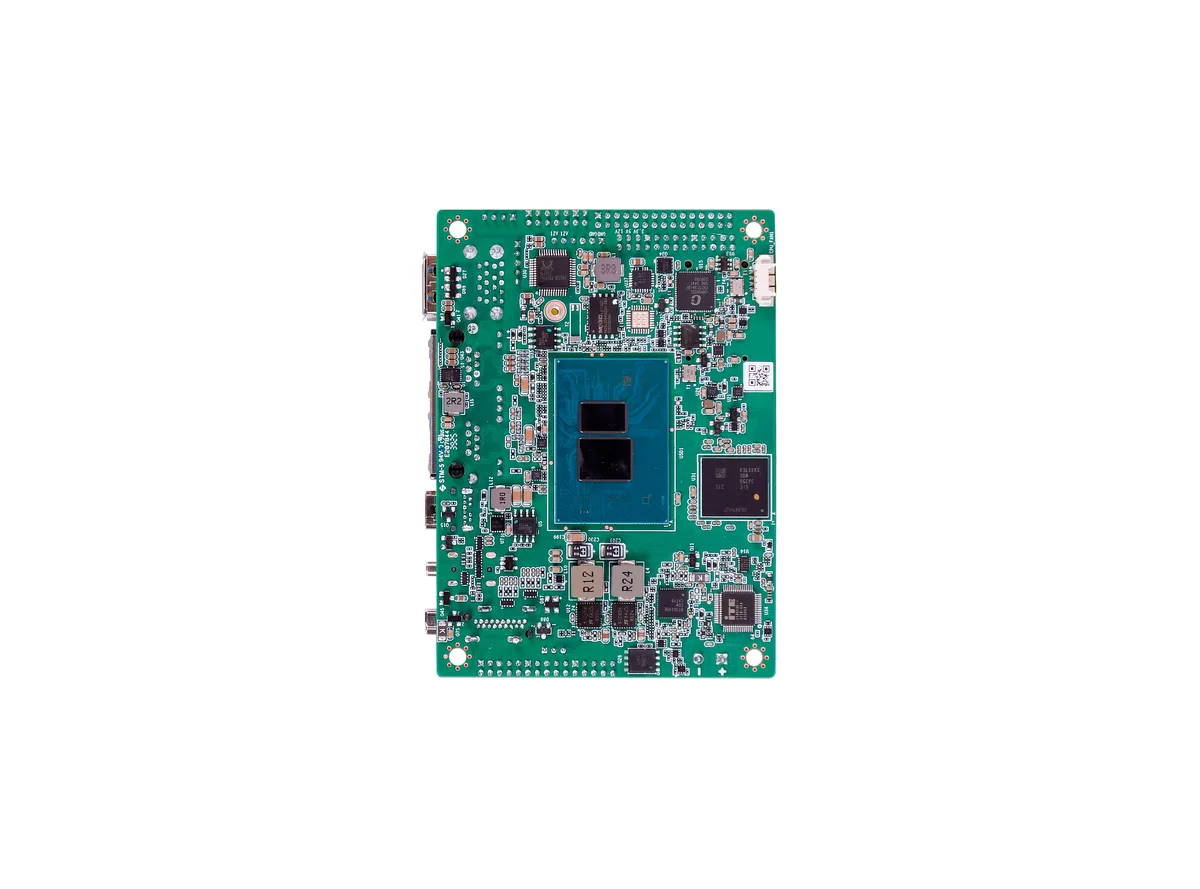

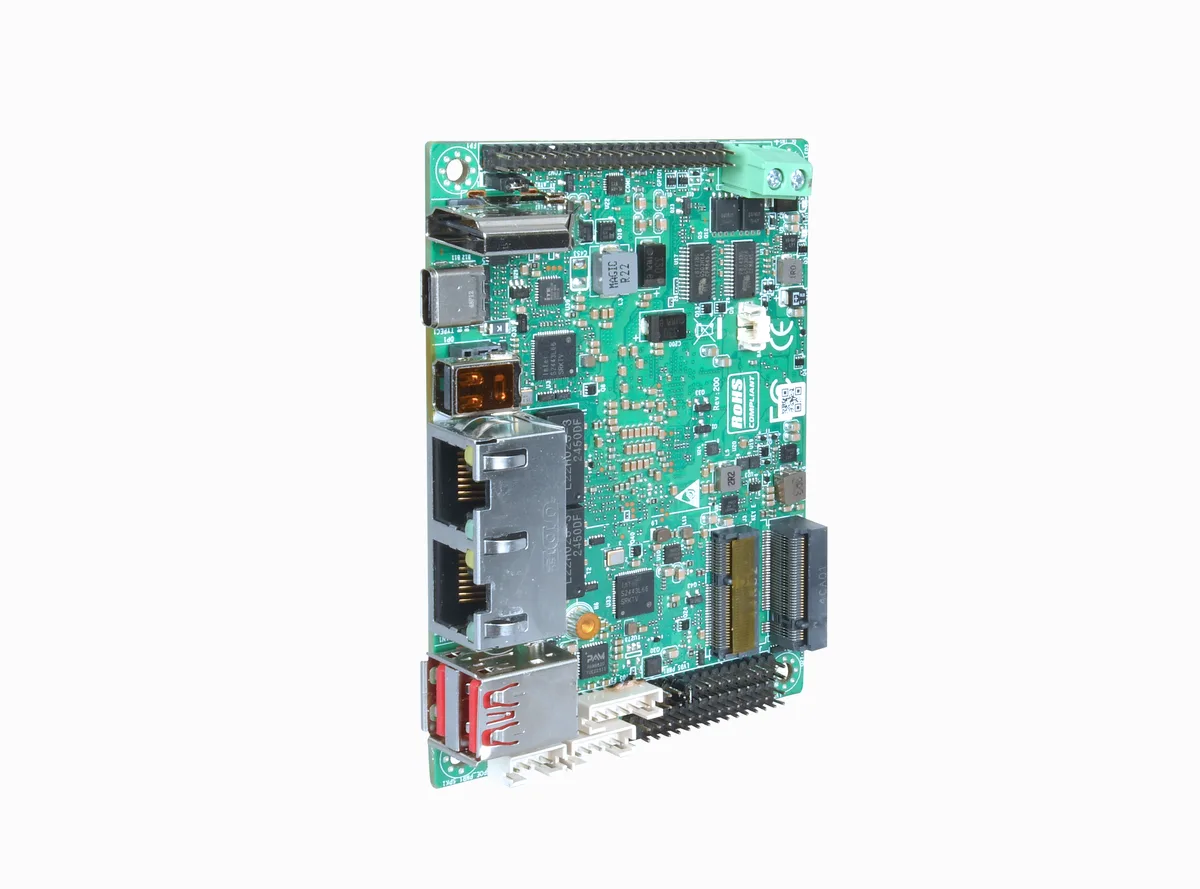

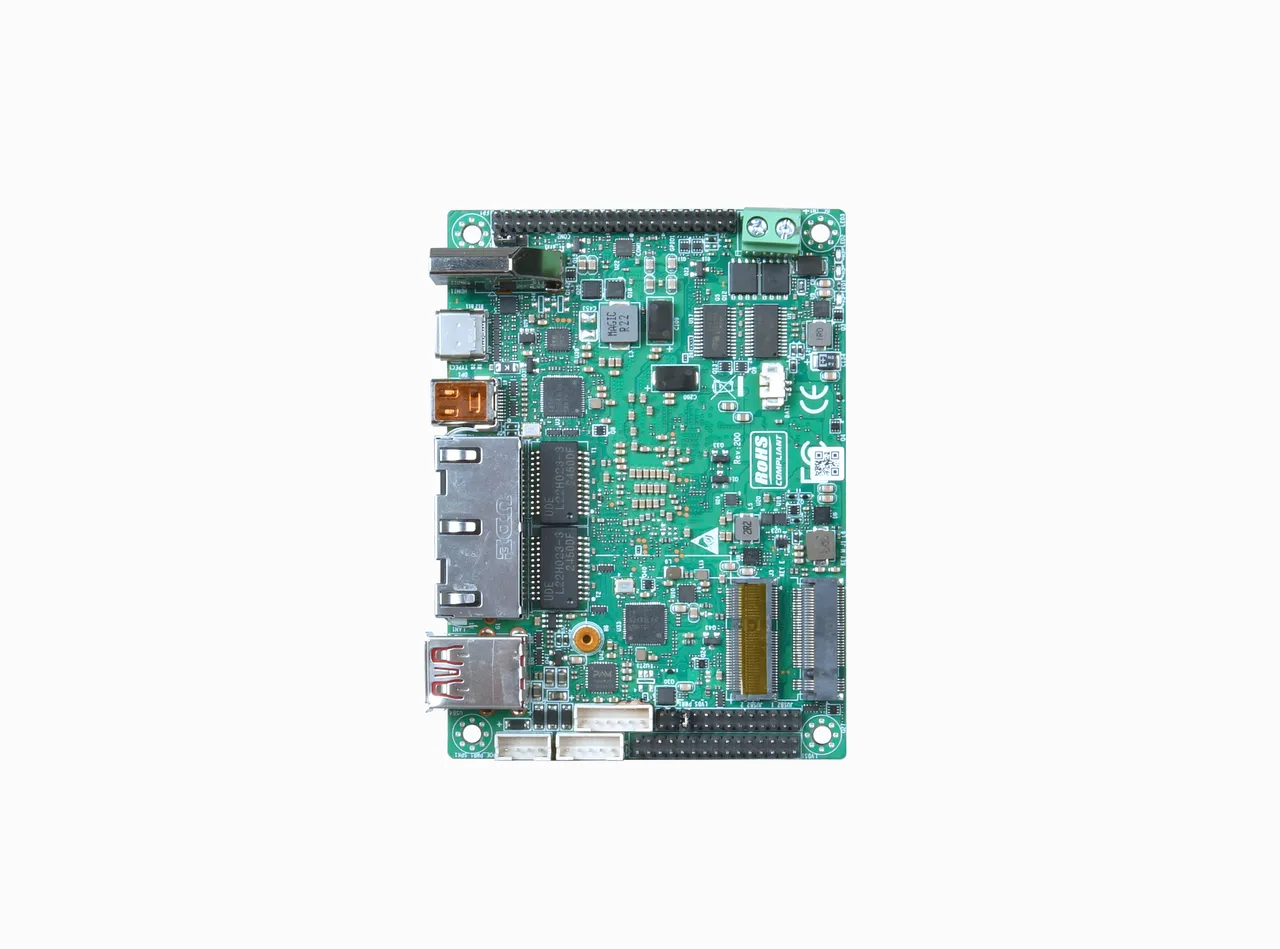

Product photos
PDM-5110, every angle
Board, I/O and mounting views from the current production sample.
Where It Fits
Smart medical and monitoring devices
The PDM-5110 carries the most display and network capacity in the 2.5-inch line, which is exactly what terminal-style products ask for. Typical deployments:
compact ward and clinic terminals running dashboards beside instruments, triple display out for trend screens, serial ports for lab devices, and a soldered-memory board that stays put in transit.
dual 2.5G LAN keeps the data stream on one port and management on the other, while the PoE PSE header and DC 12–24V input line up with solar and utility rails.
LVDS or eDP panel out from BIOS, Type-C as a service port, and a CPU ladder from 6W to 15W to match the enclosure’s cooling.
