2.5-Inch SBC · 100×72 MM · R110

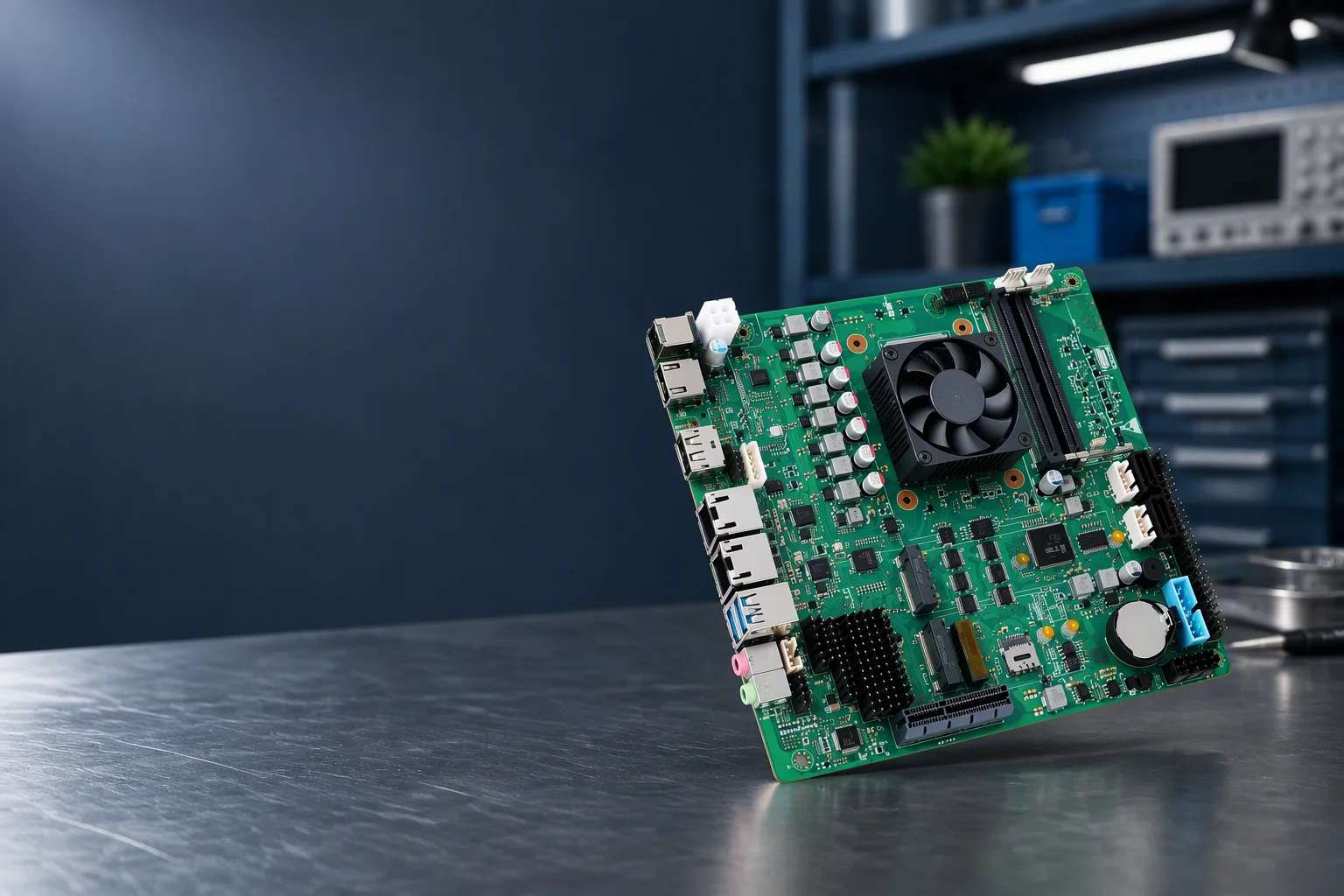

FTEQ20A Industrial Motherboard
The domestic-platform member of the 2.5-inch family: a Phytium Tenglong E2000Q (2× FTC664 + 2× FTC310) boots Kylin from onboard LPDDR4, drives HDMI, eDP and LVDS panels at 1080p from a DC 12V input, wide-temperature automation with a China-based CPU and OS stack.
- CPU
- Phytium Tenglong E2000Q, 4-core
- Memory
- Onboard LPDDR4, 4 / 8GB
- Display
- HDMI · eDP · LVDS, 1080p@60Hz
- Network
- 1× RJ45 Ethernet
- Power
- DC 12V · ATX
- Temperature
- −20/+60°C operating
Sample MOQ 1 pc · reply within 24–48 h · FOB Shenzhen
Why FTEQ20A
Four reasons to read the CPU label twice
Most of the 2.5-inch line is Intel-platform, the FTEQ20A exists for the projects that need a Phytium processor and domestic OS support.
CPU
Phytium E2000Q
4 cores across two families, 2× FTC664 plus 2× FTC310, under a Phytium UEFI BIOS, with memory and OS from the same domestic ecosystem.
Bus
2× CAN + I2C
Two JCAN1 headers put dual CAN channels on the board, and J_I2C adds a sensor bus, machine and motion wiring without protocol adapters.
Panel
HDMI, eDP, LVDS
All three outputs run 1920×1080@60Hz; the LVDS pair is dual-channel 24-bit with panel voltage selectable at 12V / 5V / 3.3V, matched to panel inventory.
Power
DC 12V input
Powered from the 5.5×2.5 mm jack or the DC_IN2 / ATX header, with a 255-level watchdog, easy to cool inside a sealed cabinet.
Full specifications
Technical data
Per the FTEQ20A English specification sheet, R110. Values can be verified against the datasheet on request.
| CPU | Phytium Tenglong E2000Q · 4-core: 2× FTC664 + 2× FTC310 · Phytium UEFI BIOS |
|---|---|
| Memory | Onboard LPDDR4 · 4 GB / 8 GB (domestic memory, optional) |
| Storage | 1× M.2 M-Key 2240 (PCIe 3.0 x2), 2242 option · 1× SATA 3.0 (2-pin 5V power) |
| Display | 1× HDMI 1920×1080@60Hz · 1× eDP single-channel 1080p@60Hz · 1× LVDS dual-channel 24-bit 1080p@60Hz |
| Network | 1× RJ45 Ethernet · M.2 E-Key (PCIe + USB 2.0) for WiFi/BT module |
| Serial | 2× COM · RS232 / RS422 / RS485 · default RS232 |
| USB | 2× USB 3.0 rear · 2× JUSB2.0 headers (4× USB 2.0, 2×5-pin 2.0 mm) |
| Bus & headers | 2× JCAN1 (2 CAN) · J_I2C · 8-ch GPIO (3.3V / 5V selectable) · LVDS_PWR panel voltage 12V / 5V / 3.3V · F_Panel · AT_ATX1 · JDEBUG1 · JBLK_CTL1 backlight key · JHDMI_PRO / JLVDS_PRO · BAT1 CR2032 |
| Audio | Rear audio (Shenlei SN6140) |
| Power | DC 12V via 5.5×2.5 mm jack · DC_IN2 4-pin / ATX connector · watchdog 255 levels |
| Dimensions | 100 × 72 mm · 2.5-inch form factor |
| Environment | −20°C to +60°C operating (5–90% RH, non-condensing) · −40°C to +85°C storage (5–90% RH, non-condensing) |
| Software | Kylin (Phytium-based) |
Need a port count that is not listed? Ask the engineer who owns the datasheet.
Ask about FTEQ20AConfiguration
Ordering options
Options are configured at order time against the standard base board.
| Option | Standard | Optional |
|---|---|---|
| Memory | Onboard LPDDR4 4GB | Onboard LPDDR4 8GB |
| Storage | M.2 M-Key 2240 (PCIe 3.0 x2) | M.2 M-Key 2242 |
| Serial mode | RS232 (default) | RS422 / RS485 per port |
| GPIO level | 3.3V | 5V (resistor selectable) |
| Panel voltage | LVDS_PWR 3.3V | 5V / 12V (LVDS_PWR header) |
| Power source | DC jack 12V | DC_IN2 4-pin / ATX connector |

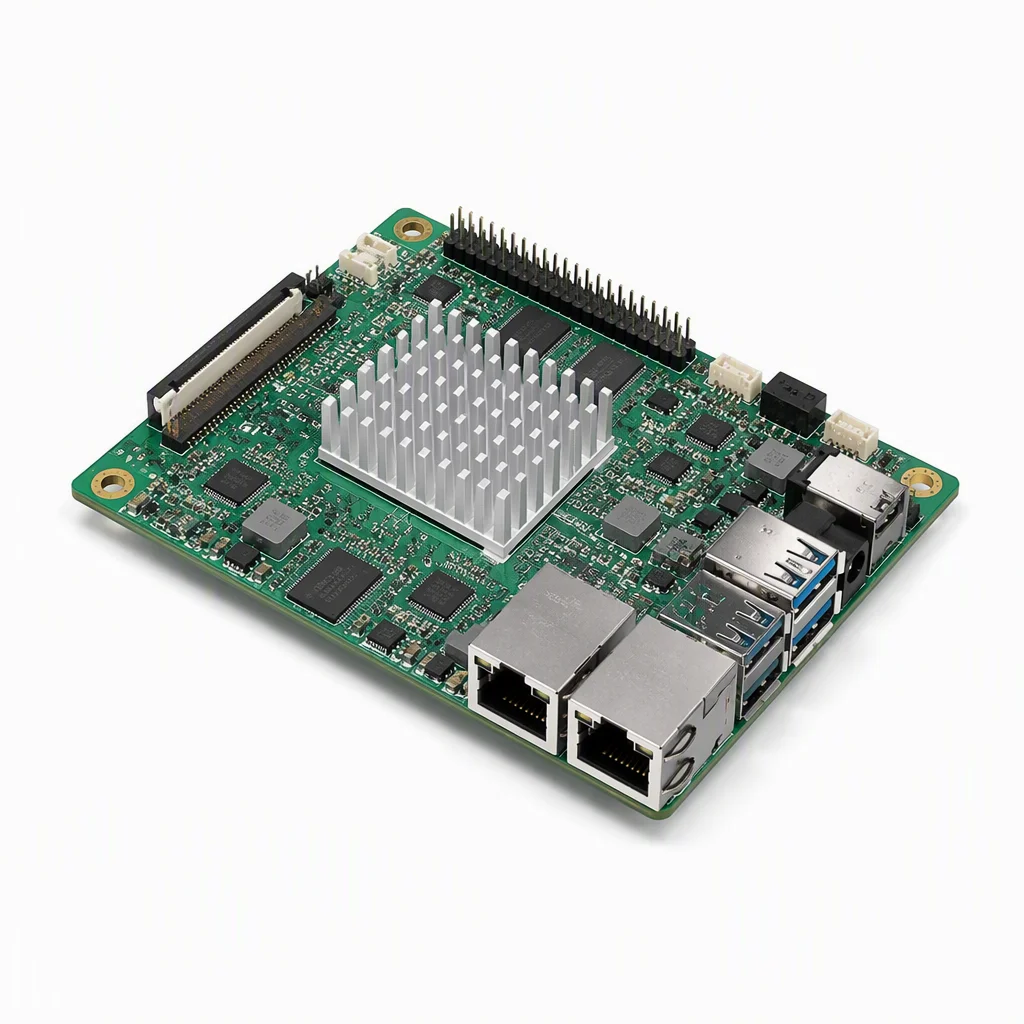

Product photos
FTEQ20A, every angle
Board, I/O and mounting views from the current production sample.
Where It Fits
Domestic-stack automation and panels
The FTEQ20A targets machines and gateways that must run on a Phytium processor with Kylin, without giving up industrial I/O. Typical deployments:
HDMI, eDP or dual-channel LVDS at 1080p with a hardware backlight-key header, so the panel’s own buttons stay in sync with the system.
two multi-mode COM ports and dual CAN reach machine buses directly, while the E-Key slot covers WiFi or BT uplink.
a compact 100×72 mm layout, debug log header and I2C bus make board-level tailoring practical for volume builds.
Related boards
Other boards on the 2.5-inch SBC footprint
Compare the family before you commit to one model.
All 2.5-inch SBC boards
AD742A
Alder Lake-N / N150 with i226-V 2.5G, optional PoE and 60W DC, the mainstream edge board.
PDM-5110
Dual i226-V 2.5G, triple 4K display and six CPU choices for the I/O-heavy builds.
UT1002AW
Core Ultra 28W with LPDDR5 16GB, HDMI 2.1 4K@144Hz, i226-V 2.5G and dual M.2.
Family
All 2.5-inch SBC boards
4 boards share the 100 × 72 mm footprint. Compare I/O, platform and power before you commit.
View the lineupStart a project
Quote the FTEQ20A for your build.
Send the enclosure, the environment and the interfaces you need. An engineer replies within 24 to 48 hours with a model, a lead time and a price.
GEOLiNK / Shenzhen
