AD742A Industrial Motherboard

Onboard Intel Alder Lake-N or Twin Lake-N150 with soldered LPDDR5 up to 16 GB, one Intel i226-V 2.5G port with optional PoE, and a DC 12V / 60W profile, the AD742A fits inside a tool, a panel or a bedside device without redesigning the enclosure around it.

CPU: Onboard Alder Lake-N / Twin Lake-N150
Memory: Onboard LPDDR5, up to 16GB
Display: HDMI 2.0 4K@60Hz · LVDS/eDP
Network: 1× Intel i226-V 2.5G · PoE opt.
Power: DC 12V, 60W
Temperature: −20/+60°C operating

Quote AD742A Full specifications

Sample MOQ 1 pc · reply within 24–48 h · FOB Shenzhen

Why AD742A

Four reasons it disappears into your build

PoE

One cable, data and power

Optional PoE on the i226-V port lets the AD742A feed a camera or sensor over the same Ethernet run, one power supply fewer in the cabinet.

Memory

LPDDR5, soldered down

Up to 16GB without a socket. No DIMM contacts to fret under vibration, and the memory bus is laid out to keep signal integrity at 100×72 mm.

Serial

2× COM, three modes

Both COM ports are selectable RS232 / RS422 / RS485, so the same board talks to a PLC on one port and a reader on the other.

Platform

Alder Lake-N to N150

Choose N100, N305 or Twin Lake-N150 with the fan fitted or optional, EFI BIOS and Windows 10/11 plus Linux keep the software stack predictable.

Full specifications

Technical data

Per the AD742A English specification sheet, R102. Values can be verified against the datasheet on request.

AD742A technical specifications
CPU	Onboard Intel Alder Lake-N series / Twin Lake-N150 series · optional N100 / N305 / N150 · active fan cooling (fan optional) · EFI BIOS
Memory	Onboard LPDDR5 (soldered) · up to 16 GB
Storage	1× M.2 M-Key 2242 (PCIe 3.0 x2) · 1× SATA 3.0 with 2-pin power connector
Display	1× HDMI 2.0 (4K@60Hz) · 1× LVDS/eDP (optional)
Network	1× Intel i226-V 2.5G LAN · PoE optional · WiFi / 4G / 5G / Bluetooth expansion supported
USB	2× USB 3.2 rear · 2× JUSB2.0 headers · rear audio jack
Serial	2× COM · RS232 / RS422 / RS485 selectable
Other I/O	8-bit GPIO · 1× 4-pin PWM CPU fan header · external TPM 2.0 (optional, not fitted by default)
Power	DC 12V input · 60W
Dimensions	100 × 72 mm · approx. 100 g without heatsink / approx. 220 g with heatsink
Chassis	Mates with the Q-BOX-S5 system
Environment	−20°C to +60°C operating (5–90% RH) · −40°C to +85°C storage (5–90% RH)
Software	Windows 10 · Windows 11 · Linux

Need a port count that is not listed? Ask the engineer who owns the datasheet.

Ask about AD742A

Configuration

Ordering options

Options are configured at order time against the standard base board.

AD742A ordering options
Option	Standard	Optional
CPU platform	Alder Lake-N (onboard)	Twin Lake-N150 · N100 · N305 · N150
Cooling	Active fan fitted	Fan optional on selected SKUs
Display	HDMI 2.0 4K@60Hz	+ LVDS / eDP panel output
PoE	Off	PoE on the i226-V LAN port
Security	TPM 2.0 not fitted	External TPM 2.0 module
System	Board only	Q-BOX-S5 chassis system

Product photos

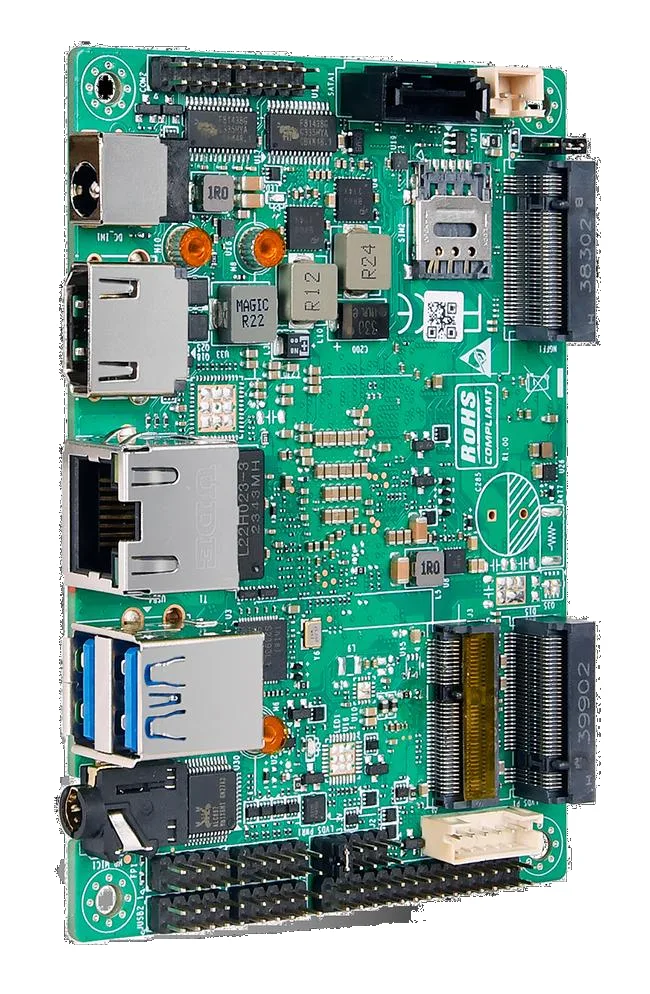

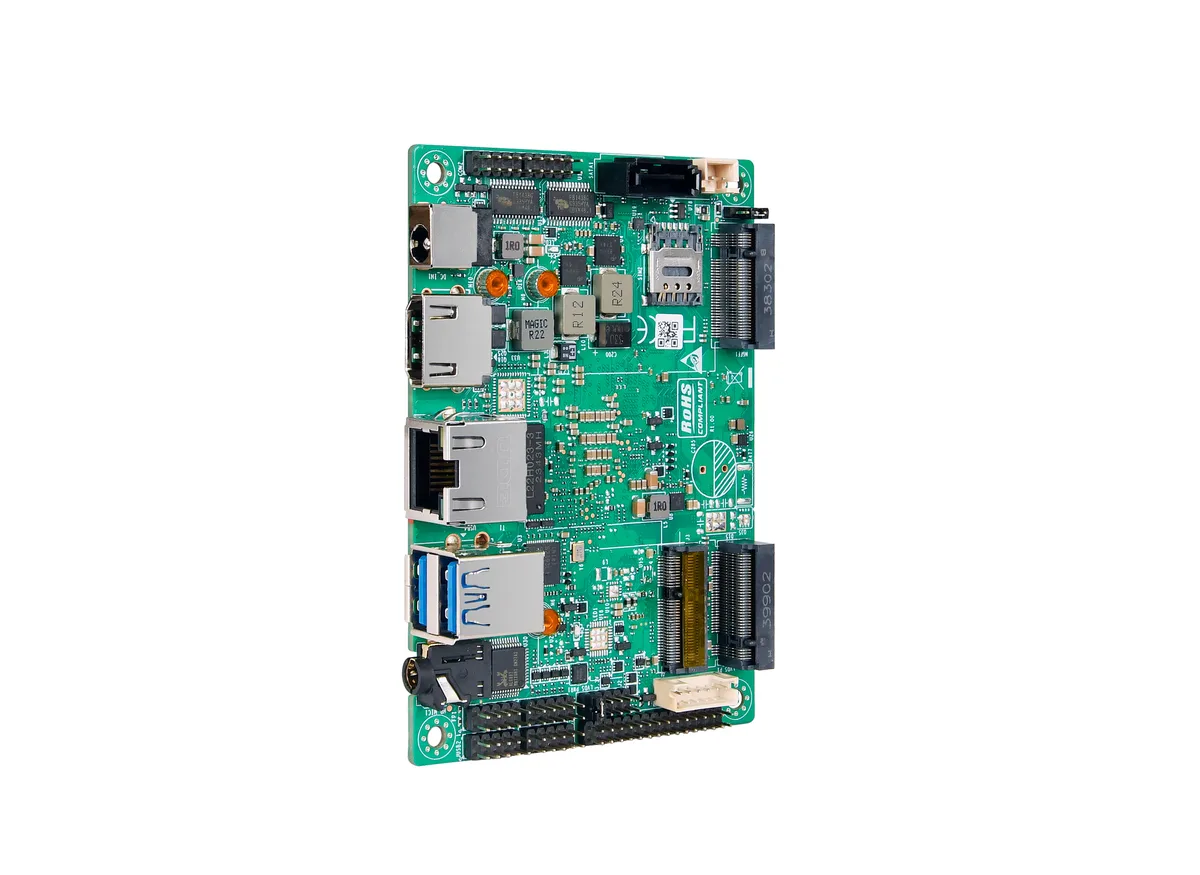

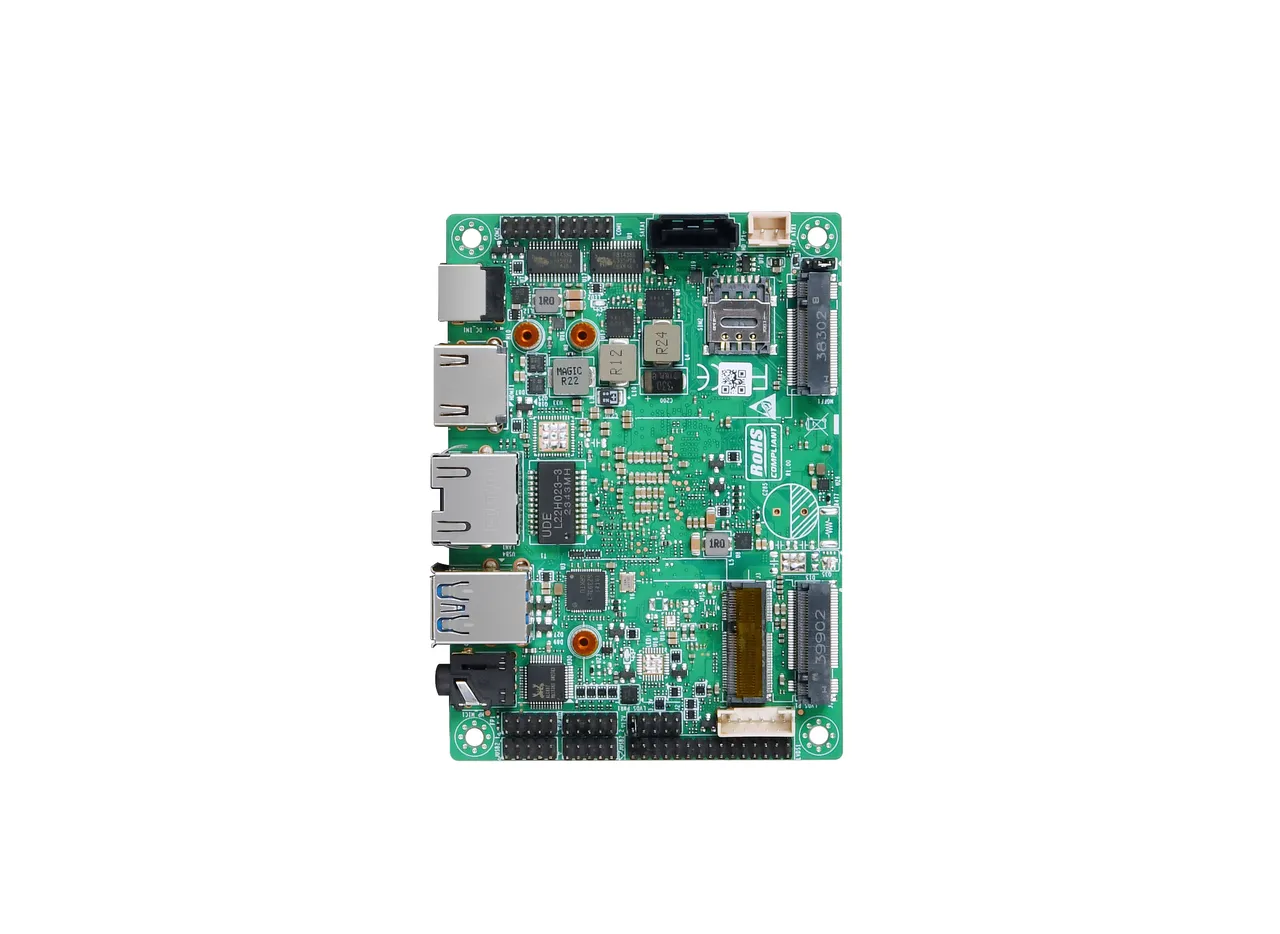

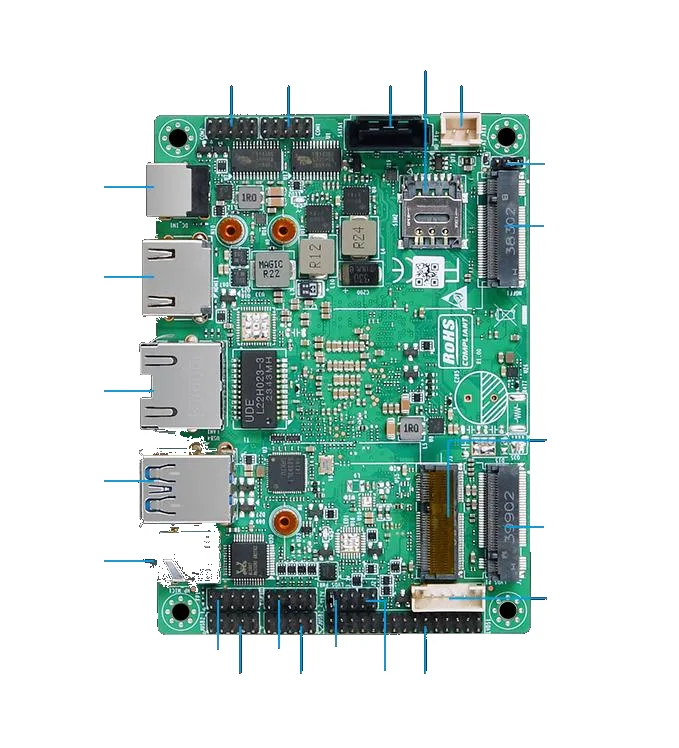

AD742A, every angle

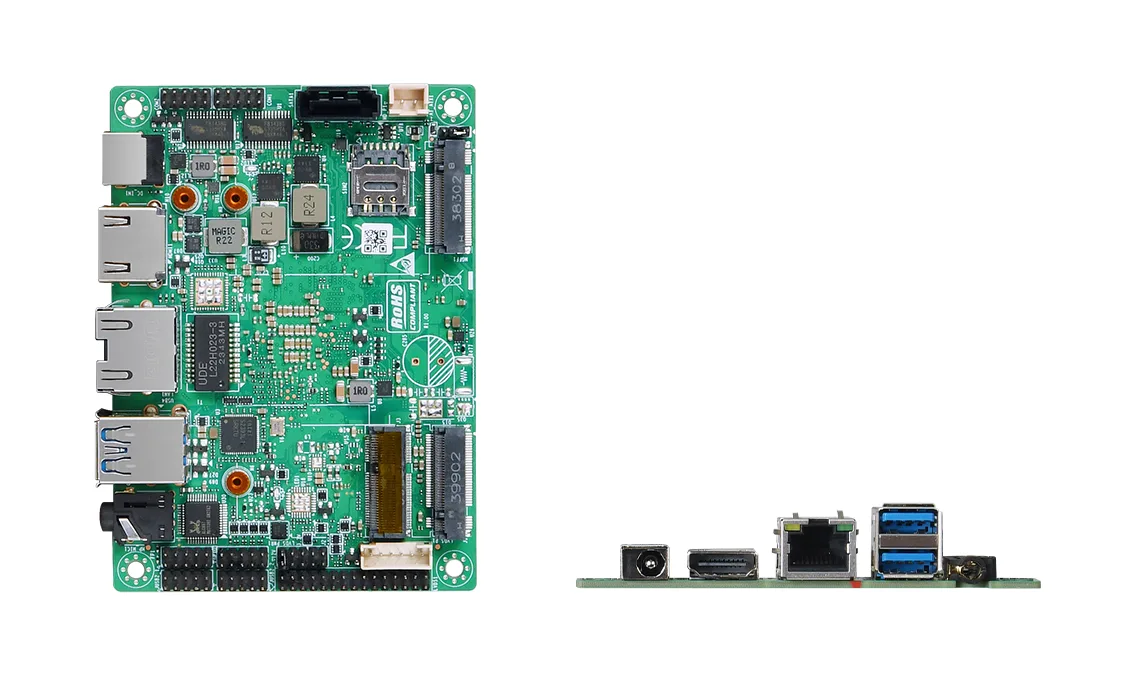

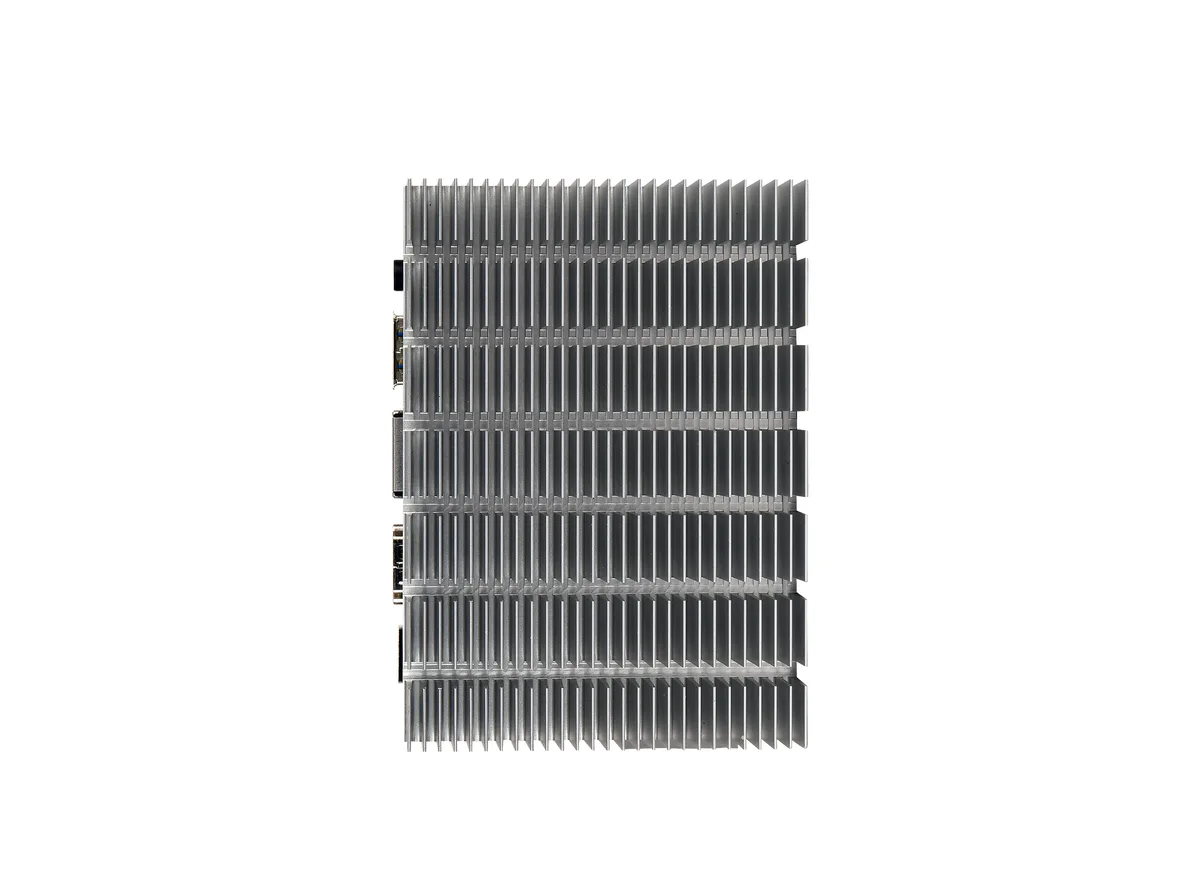

AD742A industrial motherboard, detail view

Where It Fits

Embedded AI and IoT terminals

The AD742A is specified for products where the casing decides the size and the board has to deliver on power, cooling and a modest I/O count. Typical deployments:

01Emerging AI / IoT nodes

vision-assisted tools and sensor-fusion gateways running inference-adjacent workloads on N150 with the fan option tuned to the airflow your chassis allows.

02Industrial control

two multi-mode COM ports for PLC and instrument links, 8-bit GPIO for status lamps and buttons, and active cooling that keeps CPU load predictable in a warm cabinet.

03Medical equipment

a 60W DC footprint that fits bedside and treatment-room devices, with soldered memory that survives transport and handling without DIMM reseating.

Discuss the application
