TIM800B Industrial Motherboard
Core Ultra (Meteor Lake / Arrow Lake) in a panel-first 170 × 170 mm board: DDR5-5600 up to 96 GB, LVDS at 120 Hz with a full backlight header set, and HDMI or DP at 4K60, an enclosure-ready platform for touch panels and display-heavy kiosks.
- CPU
- Onboard Core Ultra 125H–255H
- Memory
- 2× DDR5-5600 SO-DIMM, 96GB
- Display
- HDMI + DP 4K · LVDS 120Hz
- Network
- 1× RTL8111H
- Power
- DC 12–19V, 120W
- Temperature
- −10/+60°C operating
Sample MOQ 1 pc · reply within 24–48 h · FOB Shenzhen
Why TIM800B
Four answers for panel builders
The details below are the ones buyers check before a sample order.
Platform
Core Ultra, four SKUs
Meteor Lake 125H/155H or Arrow Lake 225H/255H configured at order time, pick the AI-PC class headroom your workload actually needs.
Panel Control
Backlight headers, all of them
LVDS_ON/OFF, BL_CTL and LVDS_PWR pinouts on the board, dimming, power sequencing and panel kill-switch wired without a custom carrier.
Memory
DDR5-5600, 96GB ceiling
Two SO-DIMM slots at 5600MHz with up to 96GB, enough headroom for vision pipelines alongside the UI.
Power & OS
AT/ATX and triple OS
ATX 4-pin plus DC 12–19V with AT/ATX selection, and Windows 10, Windows 11 or Ubuntu on the supported list.
Full specifications
Technical data
Per the TIM800B English specification sheet, R110. Values can be verified against the datasheet on request.
| CPU | Onboard Intel Core Ultra · Meteor Lake / Arrow Lake · configurable 125H / 155H / 225H / 255H · UEFI BIOS |
|---|---|
| Memory | 2× DDR5 SO-DIMM · 5600 MHz · up to 96 GB |
| Storage | 1× SATA 3.0 (4-pin SATA power) · 1× M.2 2280 Key-M (SATA & NVMe auto-detecting) |
| Display | 1× HDMI (4K@60Hz) · 1× DP (4K@60Hz) · 24-bit dual-channel LVDS 1920×1080 @120Hz · 1× DP side-mount (not populated in volume production) |
| Panel Headers | LVDS_ON/OFF (3-pin 2.54mm) · BL_CTL (4-pin 2.54mm) · LVDS_PWR (2×3-pin 2.0mm) · LVDS (2×15-pin 2.0mm) · LVDS_P (6-pin A2001WV-6P 2.0mm) |
| Rear I/O | DC JACK · HDMI · VGA / COM (DB9), selectable · 4× USB 3.0 · 1× LAN · mic in · line out |
| Internal Headers | 2× USB 3.0 pin headers · 4× USB 2.0 pin headers (JUSB_5V voltage selection) · F_AUDIO 9-pin · speaker 4-pin (4Ω 3W) · F_PANEL · 4-pin CPU fan · 4-pin SYS fan |
| Power Inputs | DC 12–19V · power rating 120W · ATX 4-pin connector · 3-pin AT/ATX |
| Expansion | 1× M.2 E-Key (PCIe + USB 2.0, WiFi/BT/CNVI) · 1× TPM_SPI header |
| Network | 1× LAN (RTL8111H, 10/100/1000M adaptive) |
| Dimensions | 170 × 170 mm (Mini-ITX) |
| Environment | −10°C to +60°C operating · 0–90% RH non-condensing · −20°C to +70°C storage |
| Software | Windows 10 · Windows 11 · Ubuntu |
Need a port count that is not listed? Ask the engineer who owns the datasheet.
Ask about TIM800BConfiguration
Ordering options
Options are configured at order time against the standard base board.
| Option | Standard | Optional |
|---|---|---|
| CPU SKU | Core Ultra (Meteor Lake) 125H | 155H · Arrow Lake 225H / 255H |
| Rear combo port | VGA | COM (DB9), selectable |
| Side DP | Not populated (volume production) | Populated per order |
Product photos
TIM800B, every angle

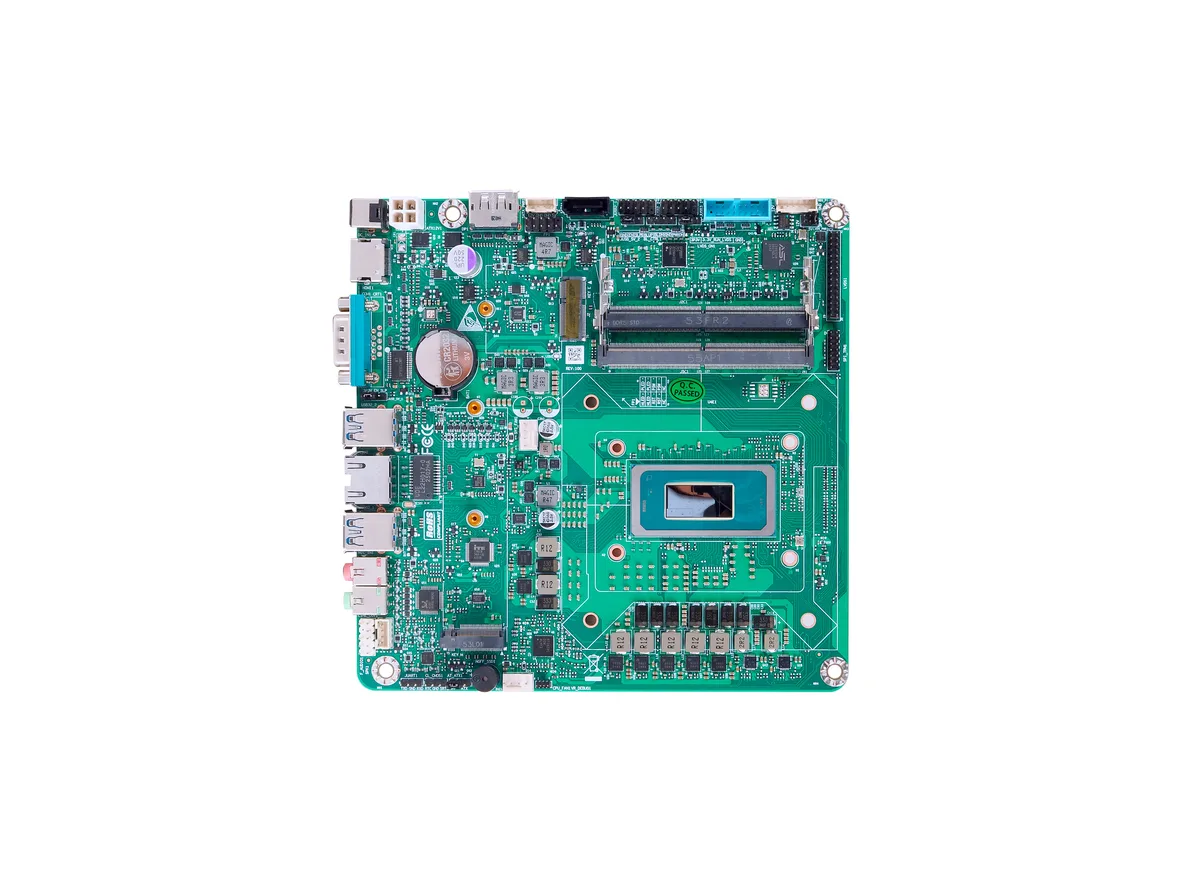

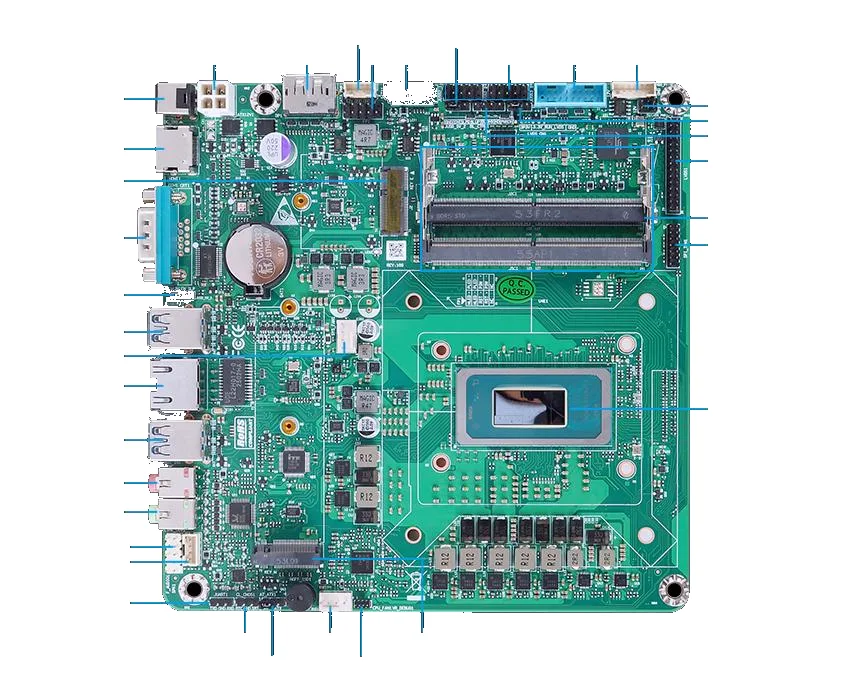

Board, I/O and mounting views from the current production sample.
Where It Fits
Always-on panel displays
The TIM800B is built around the panel: backlight control, 120Hz LVDS and 96GB of memory for content-heavy screens that run for hours. Typical deployments:
BL_CTL and LVDS power headers give the enclosure designer direct control over backlight behavior and sequencing.
Core Ultra handles HTML5 signage and local media without a separate media player box.
HDMI or DP for the main screen, LVDS 120Hz for a dedicated operator panel, Ubuntu or Windows by project preference.
Related boards
Other boards on the Mini-ITX footprint
Compare the family before you commit to one model.
All Mini-ITX boards
TIM600B
Alder Lake predecessor with the same 120Hz LVDS focus plus gravity sensing.
TOP800B
Core Ultra with HDMI 2.1 8K and dual 2.5G i226-V, when the panel is not the whole story.
TMIA70B
AMD Ryzen Phoenix alternative, DDR5-5600, 120Hz LVDS and TPM 2.0 built in.
Family
All Mini-ITX boards
7 boards share the 170 × 170 mm footprint. Compare I/O, platform and power before you commit.
View the lineupStart a project
Quote the TIM800B for your build.
Send the enclosure, the environment and the interfaces you need. An engineer replies within 24 to 48 hours with a model, a lead time and a price.
