Mini-ITX · 170×170 MM · R101
TIM600B Industrial Motherboard
An onboard Alder Lake board at 45 W with panel-first I/O: LVDS that runs 120 Hz, gravity sensing that rotates the image with the enclosure, and a one-key restore path for unattended machines, all on 170 × 170 mm.
- CPU
- Onboard Alder Lake, 45W
- Memory
- 2× DDR4 SO-DIMM, 64GB
- Display
- HDMI 2.0 + VGA/DP + LVDS 120Hz
- Network
- 1× RTL8111H
- Power
- DC 12–19V, 90W+
- Temperature
- −20/+60°C operating
Sample MOQ 1 pc · reply within 24–48 h · FOB Shenzhen
Why TIM600B
Four tricks up its sleeve
The details below are the ones buyers check before a sample order.
Sensing
Gravity-aware display
Automatic landscape/portrait switching on the panel output, mount the unit any way the cabinet dictates and the picture follows.
Panel Refresh
LVDS at 120Hz
24-bit dual-channel LVDS up to 1920×1200 with 120Hz refresh, smoother HMI screens without switching panel generations.
Serviceability
One-key system restore
A restore path for field units that took a bad update, bring the machine back to a known image without a service call.
Power Flex
DC or ATX 4-pin
DC 12–19V at 90W+ for embedded rails, plus an ATX 4-pin connector when the system already carries an ATX supply.
Full specifications
Technical data
Per the TIM600B English specification sheet, R101. Values can be verified against the datasheet on request.
| CPU | Onboard Intel Alder Lake · TDP 45W · optional SKU i5-12450H |
|---|---|
| Memory | 2× DDR4 SO-DIMM · up to 64 GB |
| Storage | 1× SATA 3.0 (4-pin SATA power) · 1× M.2 2280 (PCIe 4.0 x4 NVMe / SATA auto-adaptive) |
| Display | 1× HDMI 2.0 (4K@60Hz) · VGA / DP 1.4 (4K@60Hz), selectable · 24-bit dual-channel LVDS 1920×1200 · eDP 4K@60Hz (LVDS or eDP, selectable) · LVDS 120Hz supported |
| Rear I/O | DC JACK · HDMI · VGA / COM (DB9), selectable · 4× USB 3.0 · 1× LAN · mic in · line out |
| Internal Headers | 1× USB 3.0 header · 3× USB 2.0 headers (JUSB_5V voltage selection) · F_AUDIO 9-pin · speaker 4-pin (4Ω 3W) · F_PANEL · MON SW · LVDS OFF jumper · 6-pin LVDS power · 4-pin CPU fan · 4-pin SYS fan |
| Power Inputs | DC 12–19V, 90W and above (per application) · ATX 4-pin power connector · 3-pin AT/ATX |
| Expansion | 1× M.2 E-Key (PCIe + USB 2.0, WiFi/BT/CNVI) · 1× TPM_SPI header · 1× DP side-mount (not populated in volume production) |
| Network | 1× LAN (RTL8111H) |
| Other Features | Gravity sensing · automatic landscape/portrait switching · one-key system restoration · LVDS 120Hz display |
| Dimensions / Weight | 170 × 170 mm · 230 g (excluding heatsink) |
| Environment | −20°C to +60°C operating · humidity 5–90% · −40°C to +85°C storage |
| Software | Windows 11 · Windows 10 · Linux |
Need a port count that is not listed? Ask the engineer who owns the datasheet.
Ask about TIM600BConfiguration
Ordering options
Options are configured at order time against the standard base board.
| Option | Standard | Optional |
|---|---|---|
| CPU SKU | Alder Lake standard 45W | Intel Alder Lake i5-12450H |
| Video out | VGA | DP 1.4 (4K@60Hz), selectable |
| Panel out | 24-bit dual-channel LVDS (1920×1200) | eDP 4K@60Hz, selectable |
| Rear combo port | VGA | COM (DB9), selectable |

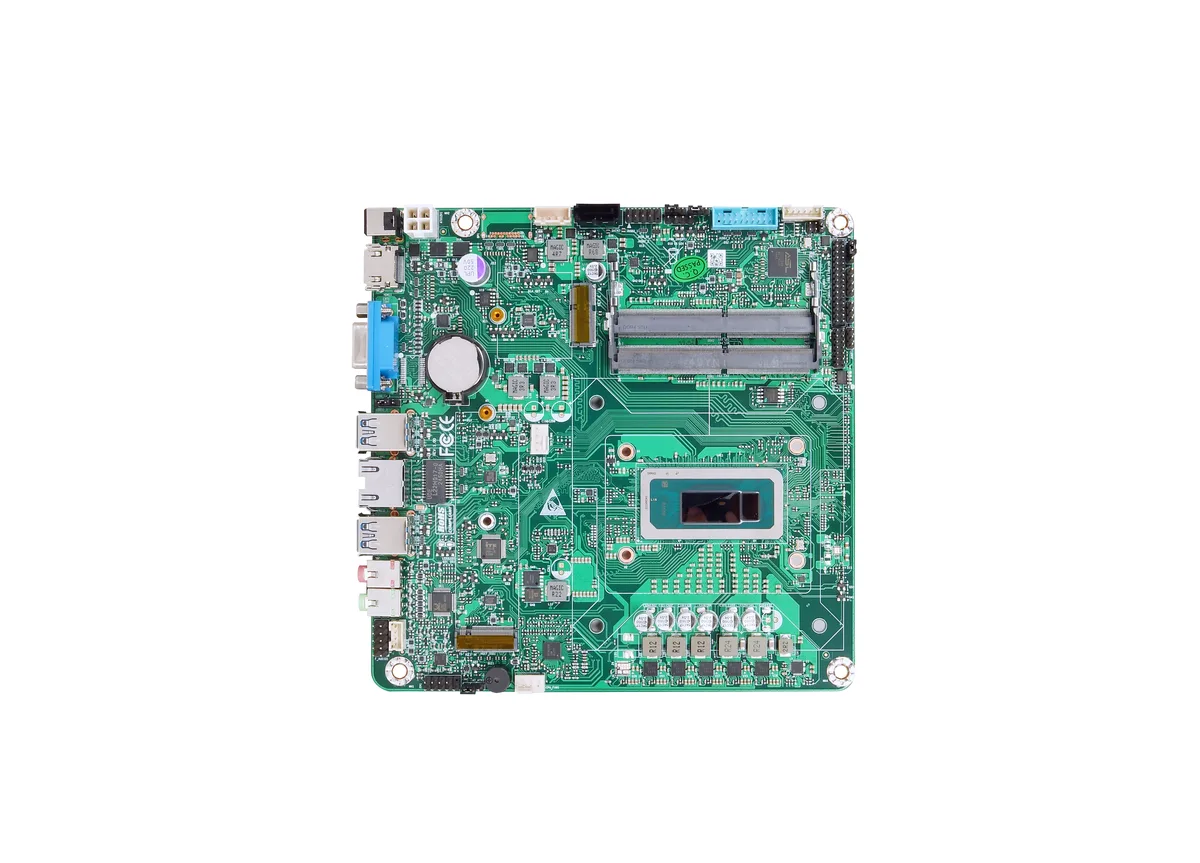

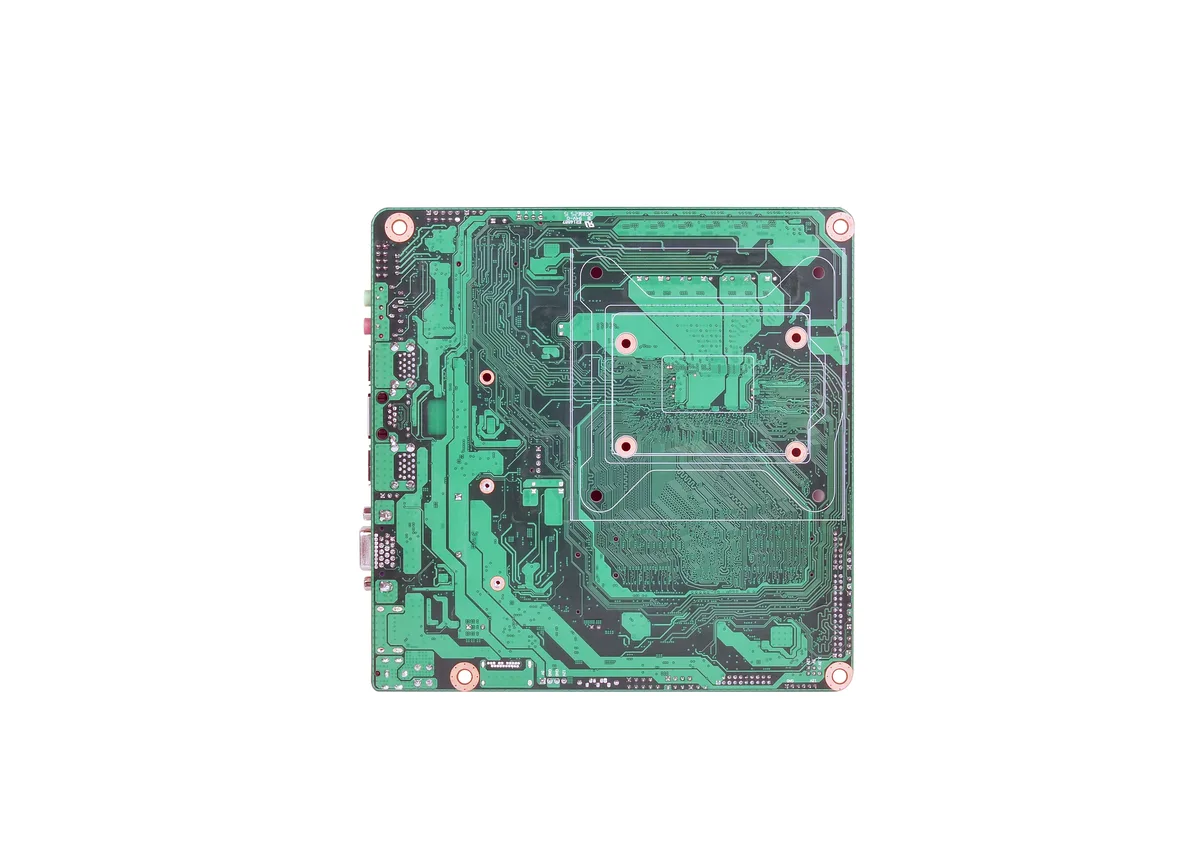

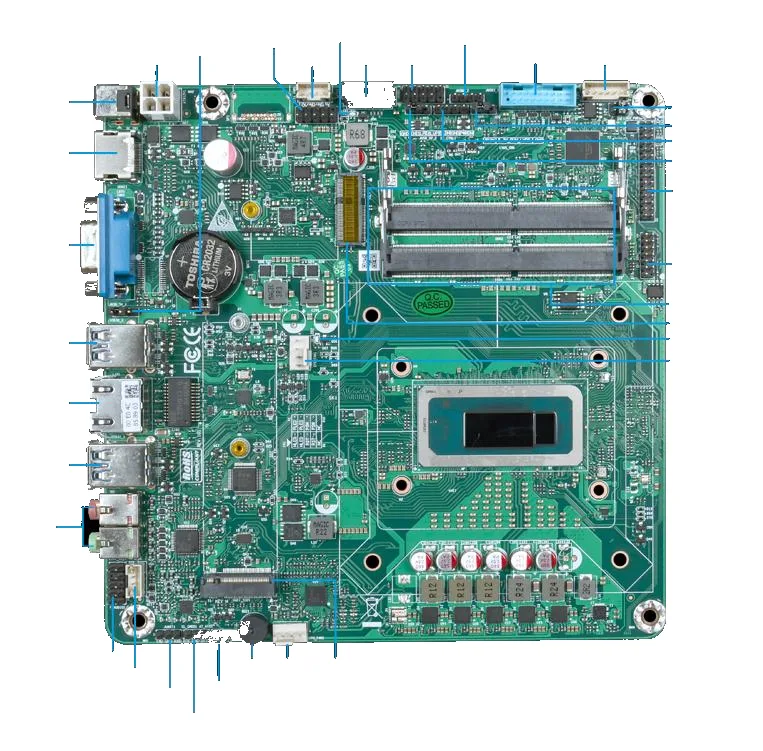

Product photos
TIM600B, every angle
Board, I/O and mounting views from the current production sample.
Where It Fits
HMI screens and automation cells
The TIM600B is an HMI-first board: panel connectors outnumber everything else, and the extras serve machines that run with no one watching. Typical deployments:
LVDS or eDP straight to the front panel, gravity sensing if the console can be mounted either way.
45W Alder Lake for local visualization and control, ATX 4-pin input when the cabinet already feeds 12V to the rest of the gear.
one-key restore and watchdog-friendly AT/ATX behavior reduce field visits on long-lived equipment.
