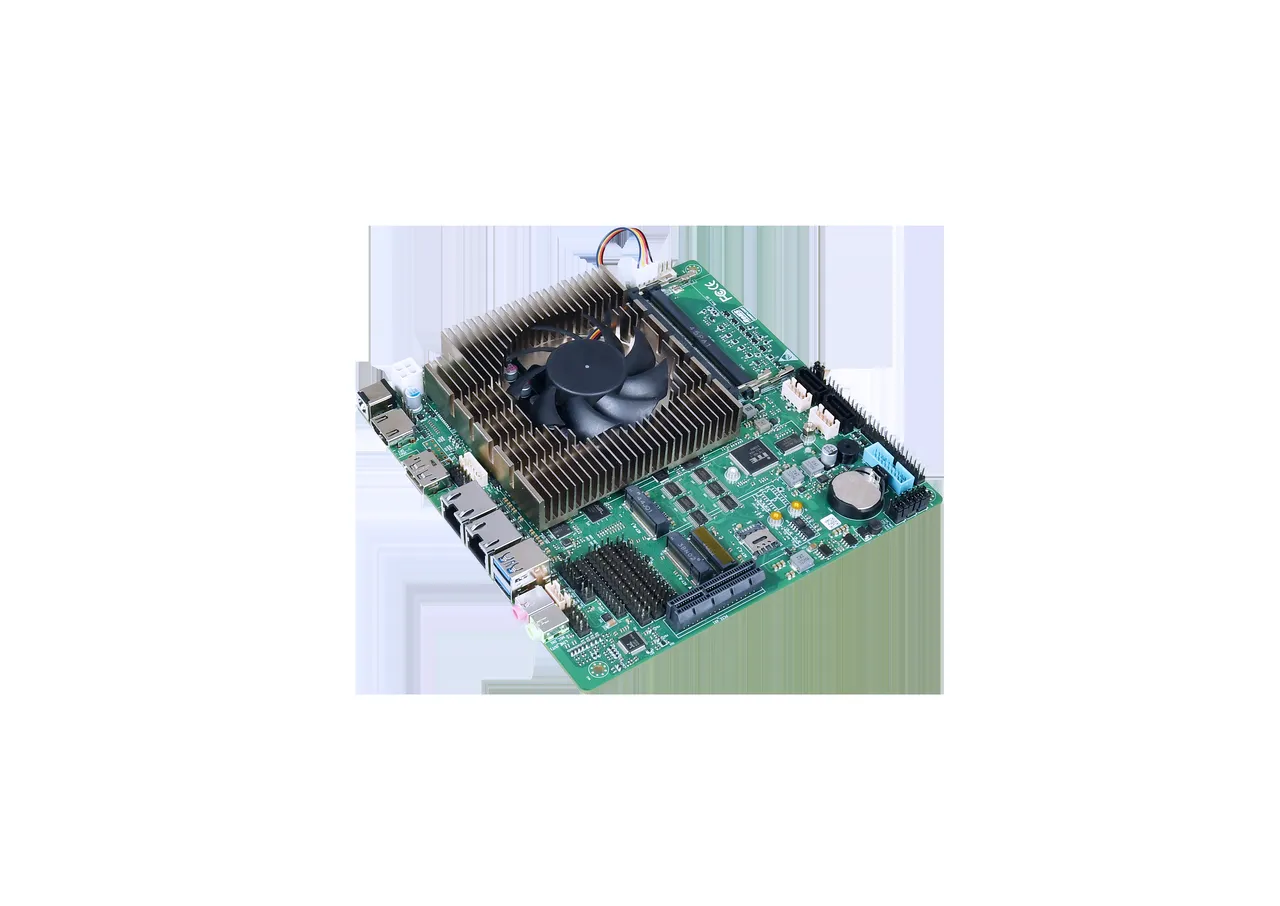

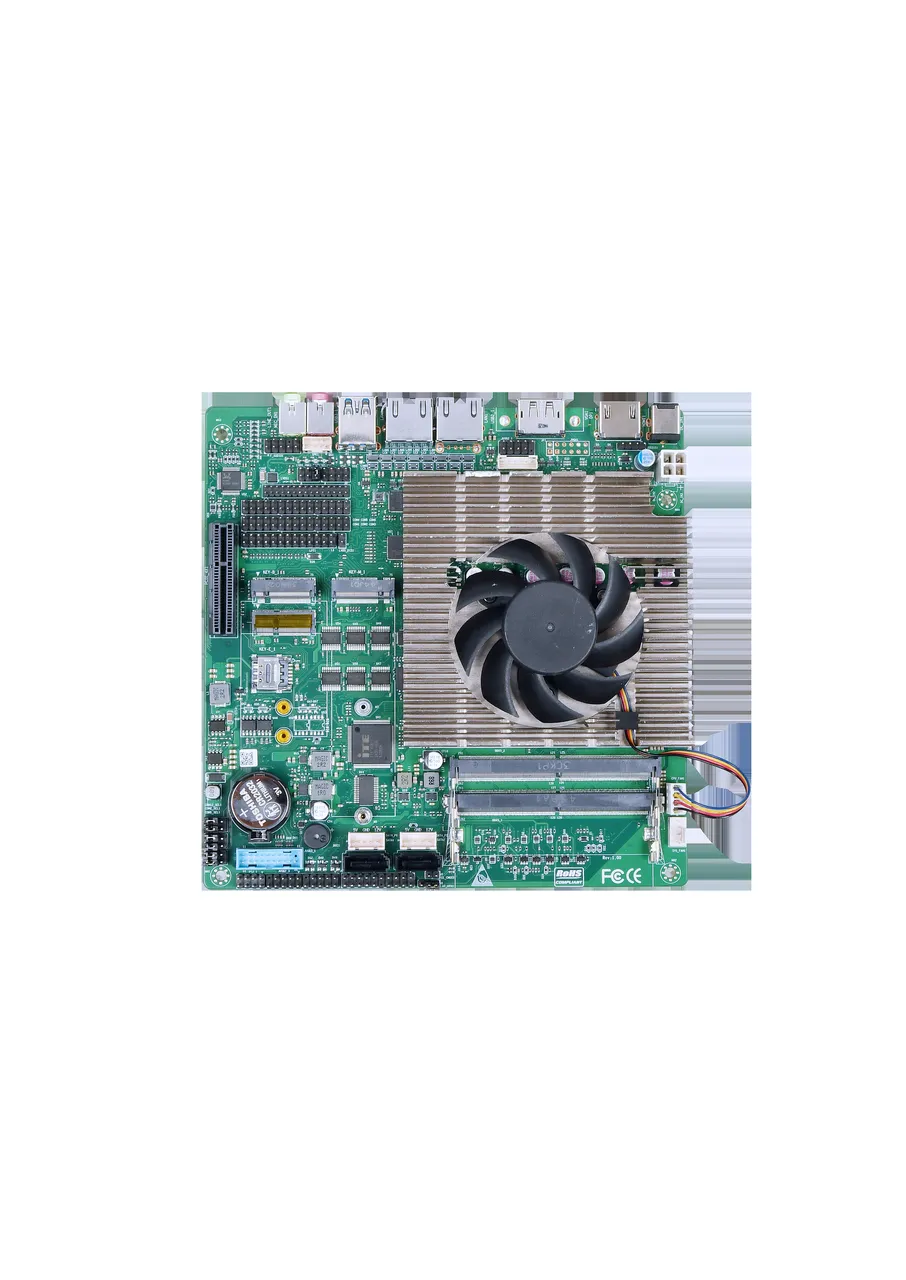

TOP800B Industrial Motherboard

Onboard 28W Intel Core Ultra (Arrow Lake / Meteor Lake) with an 8K HDMI 2.1 output, dual 2.5G Intel i226-V LAN and DDR5-5600 up to 96 GB, the TOP800B packs the edge-AI class platform into the spare 170 × 170 mm slot of your chassis.

CPU: Onboard Core Ultra 5/7, 28W
Memory: 2× DDR5-5600 SO-DIMM, 96GB
Display: HDMI 2.1 8K · HDMI 2.0 · LVDS/eDP
Network: 2× Intel i226-V 2.5G
Power: DC 12–19V, 90W+
Temperature: −20/+60°C operating

Quote TOP800B Full specifications

Sample MOQ 1 pc · reply within 24–48 h · FOB Shenzhen

Why TOP800B

Four things the spec sheet hides

8K Output

HDMI 2.1 at 60Hz

7680×4320 @ 60Hz over HDMI 2.1, premium signage, surgical displays and camera walls without a separate GPU.

Redundancy

Dual 2.5G i226-V

Two Intel 2.5G ports for teaming or failover; single-LAN variant available where the second port isn’t needed.

Platform

Core Ultra 28W

Latest-generation onboard CPU with integrated graphics for inference-adjacent edge workloads, no socket, no cooler surprises.

I/O

Six COM + wireless

6× COM with RS232/485 select, LPT or 16-bit GPIO, PS/2, and M.2 E-Key plus B-Key 4G/5G with Micro-SIM.

Full specifications

Technical data

Per the TOP800B English specification sheet, R100. Values can be verified against the datasheet on request.

TOP800B technical specifications
CPU	Onboard Intel Core Ultra · Arrow Lake / Meteor Lake · 28W TDP · Ultra7 155H / Ultra7 225H / Ultra5 225H · UEFI BIOS
Memory	2× DDR5 SO-DIMM · 5600 MHz · up to 96 GB
Storage	2× SATA 3.0 (large 4-pin power) · 1× M.2 2280 M-Key (PCIe 4.0 x4 default)
Display	1× HDMI 2.1 (8K@60Hz) · 1× HDMI 2.0 (4K@60Hz) · 1× VGA or DP 1.4 selectable · 24-bit dual-channel LVDS (1920×1200) with optional eDP 4K@60Hz
Network	2× Intel i226-V 2.5G LAN (single-LAN / dual-LAN optional) · M.2 E-Key WiFi/BT · M.2 B-Key 4G/5G + Micro SIM
USB	2× USB 3.0 rear + LAN/2× USB port header · 1× 2× USB 3.0 header · 2× 2× USB 2.0 headers (extra USB 2.0 group on dual-LAN variant)
Expansion	1× PCIe 4.0 x4
Serial	6× COM · COM1/2 RS232/RS485 · COM3–6 RS232
Other I/O	LPT or 16-bit GPIO (selectable) · PS/2 · TPM 2.0 (optional) · watchdog 0–255 s
Power	DC 12–19V input · 90W and above
Environment	−20°C to +60°C operating · −40°C to +85°C storage
Software	Windows 10 · Windows 11 · Linux

Need a port count that is not listed? Ask the engineer who owns the datasheet.

Ask about TOP800B

Configuration

Ordering options

Options are configured at order time against the standard base board.

TOP800B ordering options
Option	Standard	Optional
CPU SKU	Core Ultra 5 225H (28W)	Core Ultra 7 225H · Core Ultra 7 155H
LAN	Dual Intel i226-V 2.5G	Single LAN (reduces USB 2.0 header group)
Video in	VGA	DP 1.4 (4K@60Hz native) · eDP (4K@60Hz) instead of LVDS
Panel out	LVDS dual-channel 24-bit, 1920×1200	eDP 4K@60Hz instead of LVDS
Utility port	LPT	16-bit GPIO
Security	TPM 2.0 off	TPM 2.0 module
