3.5-inch Wide · 155×117 MM · R110
AD600Z3AW Industrial Motherboard
Onboard Intel 12th/13th Gen U/P silicon at 28 W with DDR5 up to 64 GB, an AMT-managed i219LM plus 2.5G i226-V LAN pair, six COM, a CAN bus and DC 9–36V input, the AD600Z3AW carries the modern low-power platform onto the wide 155 × 117 mm floor plan, bundled with the Q-BOX-E10 chassis.
- CPU
- Onboard 12th/13th Gen -U/-P, 28W
- Memory
- 2× DDR5 SO-DIMM, 64GB
- Display
- HDMI 2.1 · MiniDP · Type-C DP · LVDS/eDP
- Network
- i219LM + i226V 2.5G, AMT
- Power
- DC 9–36V
- Temperature
- −20/+60°C operating
Sample MOQ 1 pc · reply within 24–48 h · FOB Shenzhen
Why AD600Z3AW
Beyond the footprint
The details below are the ones buyers check before a sample order.
Manageability
AMT on the i219LM
Out-of-band Intel AMT on LAN1 lets a central IT desk power-cycle, re-image and inspect a fleet of units without visiting the rack, built for fielded, far-flung hardware.
Serial Depth
Six COM plus CAN
6× COM with RS232/485 select rides alongside a dedicated CAN header, so legacy machinery and field buses attach without a card full of adapters.
Wide Power
DC 9–36V input
One board tolerates the 12V and 24V rails found in vehicles, plants and cabinets, no separate brick, fewer points of failure in the supply chain.
Display Mix
HDMI 2.1 + Type-C DP
HDMI 2.1, MiniDP and a Type-C with DP alternate mode cover modern monitors, while 24-bit LVDS or optional eDP drives an integrated panel directly.
Full specifications
Technical data
Per the AD600Z3AW English specification sheet, R110. Values can be verified against the datasheet on request.
| CPU | Onboard Intel 12th / 13th Gen -U / -P Series (optional -U / -P / -H Series) · 28W TDP · EFI BIOS |
|---|---|
| Memory | 2× DDR5 SO-DIMM · up to 64 GB |
| Storage | 1× M.2 M-Key 2280 (PCIe 4.0 x4) · 1× SATA 3.0 with 5V power |
| Display | 1× HDMI 2.1 · 1× MiniDP · Type-C (USB + DP) · 24-bit LVDS (LVDS / eDP selectable) |
| Network | LAN1 Intel i219LM · LAN2 Intel i226V 2.5G · AMT support · single-LAN / dual-LAN optional · M.2 E-Key WiFi/BT · M.2 B-Key 4G/5G + SIM |
| Serial | 6× COM (RS232/485 select) · 1× CAN header |
| USB | 3× USB 3.0 rear · Type-C · 2× USB 2.0 headers (LAN2 shares 2× USB 2.0, one-of-two selectable) |
| Other I/O | LPT · 8-bit GPIO · PS/2 · SPDIF · audio · SPEAK 1×4 · CPU Smart FAN + system fan · F_Panel · CMOS · AT / ATX · 1× Phoenix terminal |
| Security | TPM 2.0 (external module, optional) |
| Power | DC 9–36V input |
| Dimensions | 155 × 117 mm · approx. 160 g (excluding heatsink) · bundled with Q-BOX-E10 chassis |
| Environment | −20°C to +60°C operating · 0–90% RH non-condensing · −40°C to +85°C storage |
| Software | Windows 10 · Windows 11 · Linux |
Need a port count that is not listed? Ask the engineer who owns the datasheet.
Ask about AD600Z3AWConfiguration
Ordering options
Options are configured at order time against the standard base board.
| Option | Standard | Optional |
|---|---|---|
| CPU series | Intel 12th/13th Gen -U / -P, 28W | -H series |
| Network | Dual LAN (i219LM + i226V 2.5G, AMT) | Single-LAN |
| Panel out | 24-bit LVDS | eDP (LVDS / eDP selectable) |
| Security | TPM 2.0 off | External TPM 2.0 module |
| Bundle | Q-BOX-E10 chassis included | Board only |
Product photos
AD600Z3AW, every angle

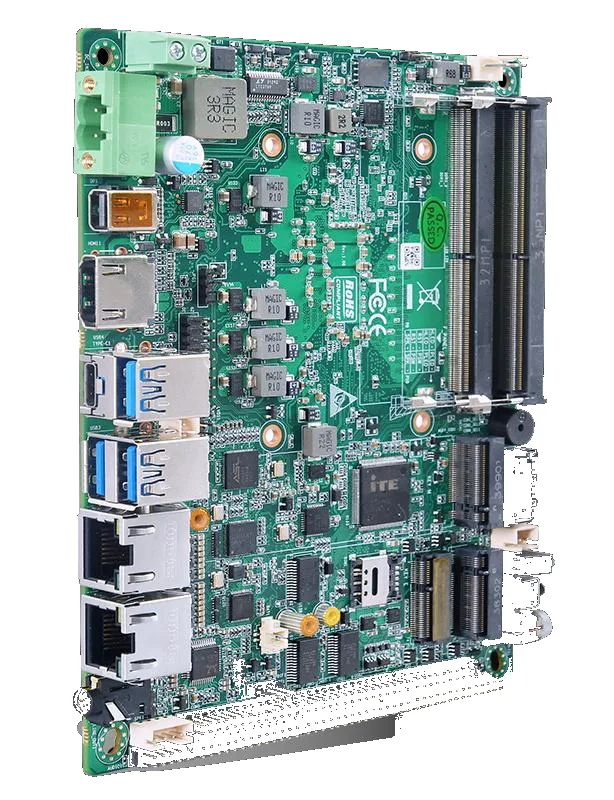

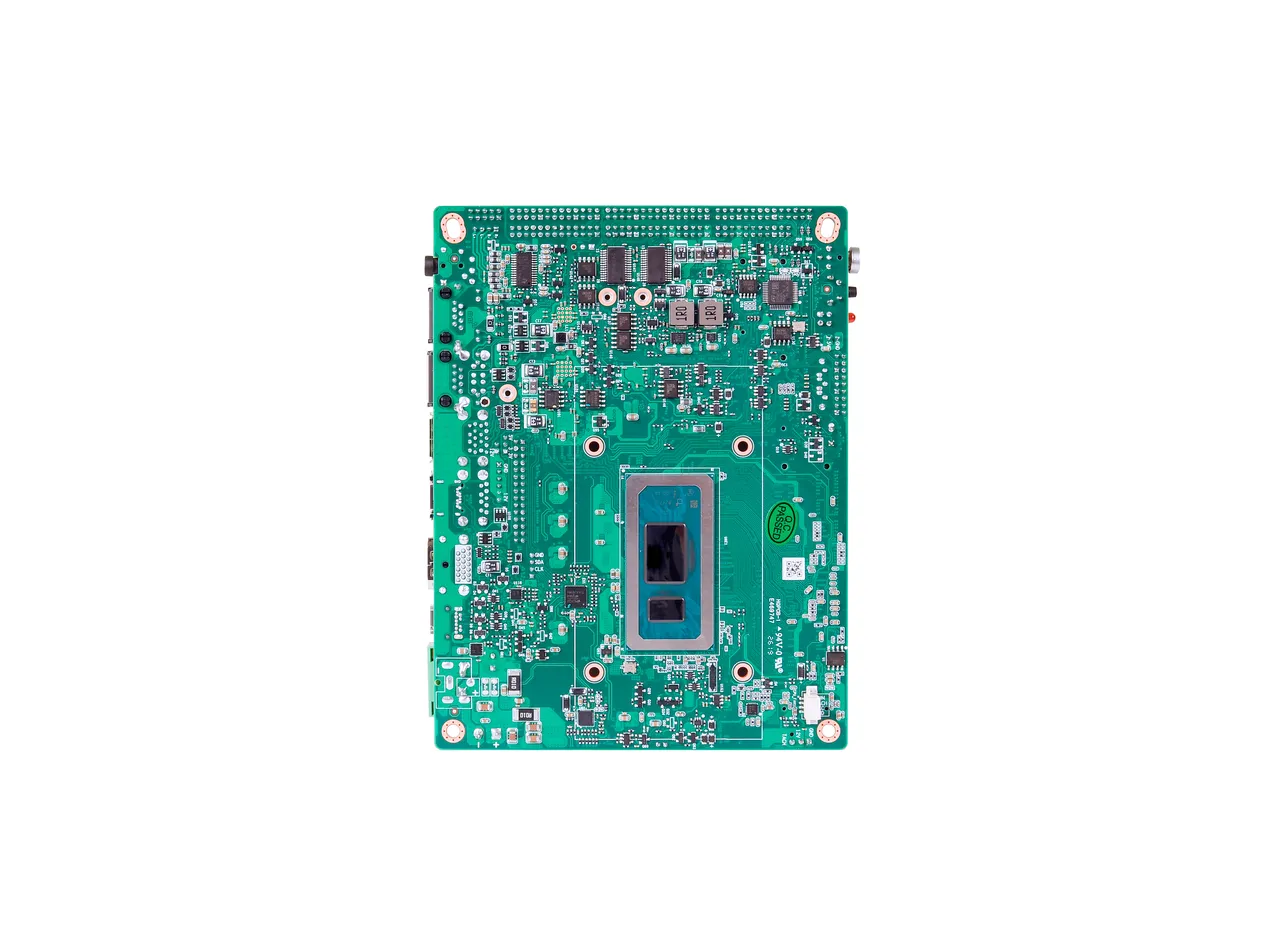

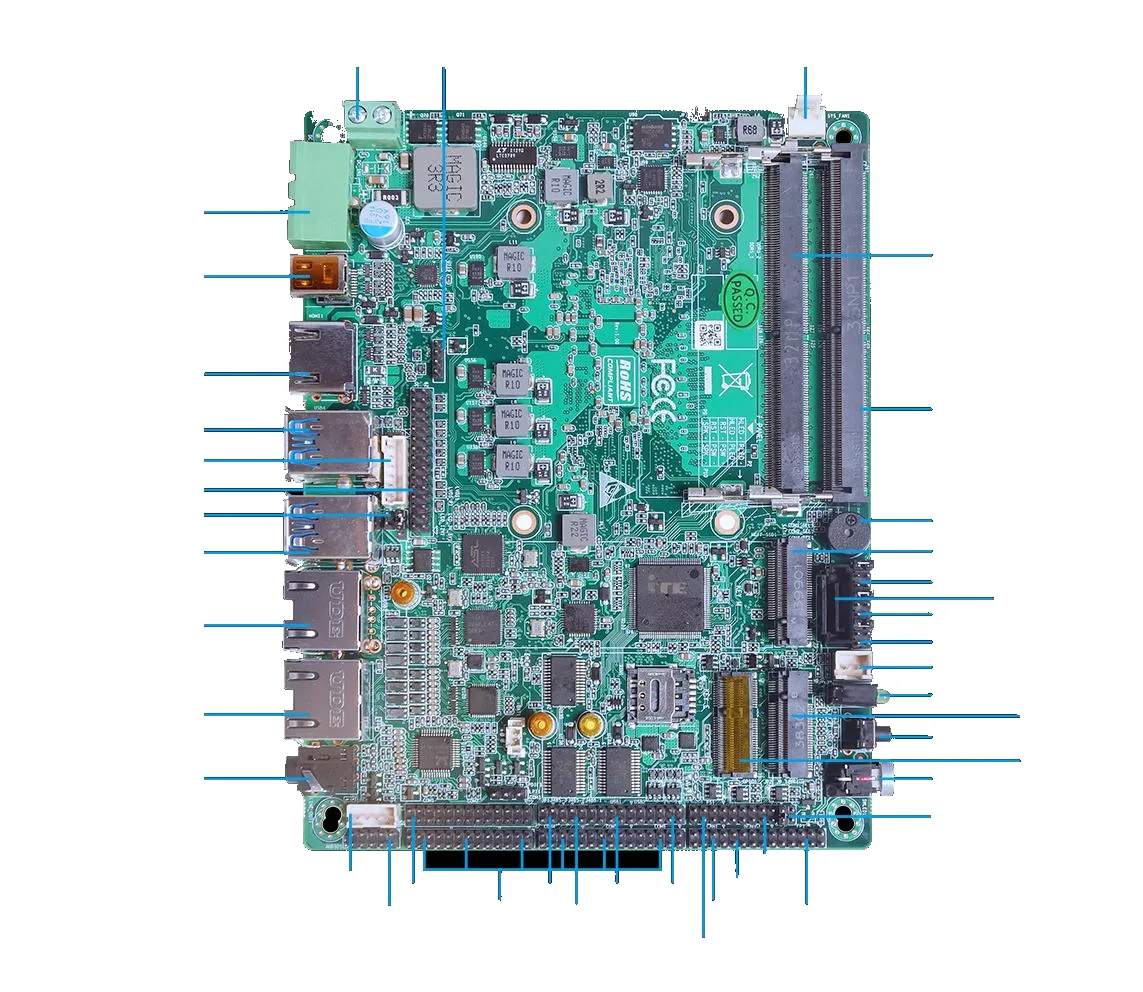

Board, I/O and mounting views from the current production sample.
Where It Fits
Vehicle cabins and way-side racks
The AD600Z3AW earns its slot where the board rides along, moving vehicles, exposed cabinets and plant floors with dirty power. Typical deployments:
DC 9–36V absorbs 12V/24V supply swings and cranking dips, while the CAN header links the board to vehicle buses and telematics.
4G/5G on the M.2 B-Key with SIM carries live telemetry, and AMT lets the depot manage every unit out-of-band.
six COM plus LPT and 8-bit GPIO reach legacy machines while the 28W U/P platform drives modern panels and local UI.
