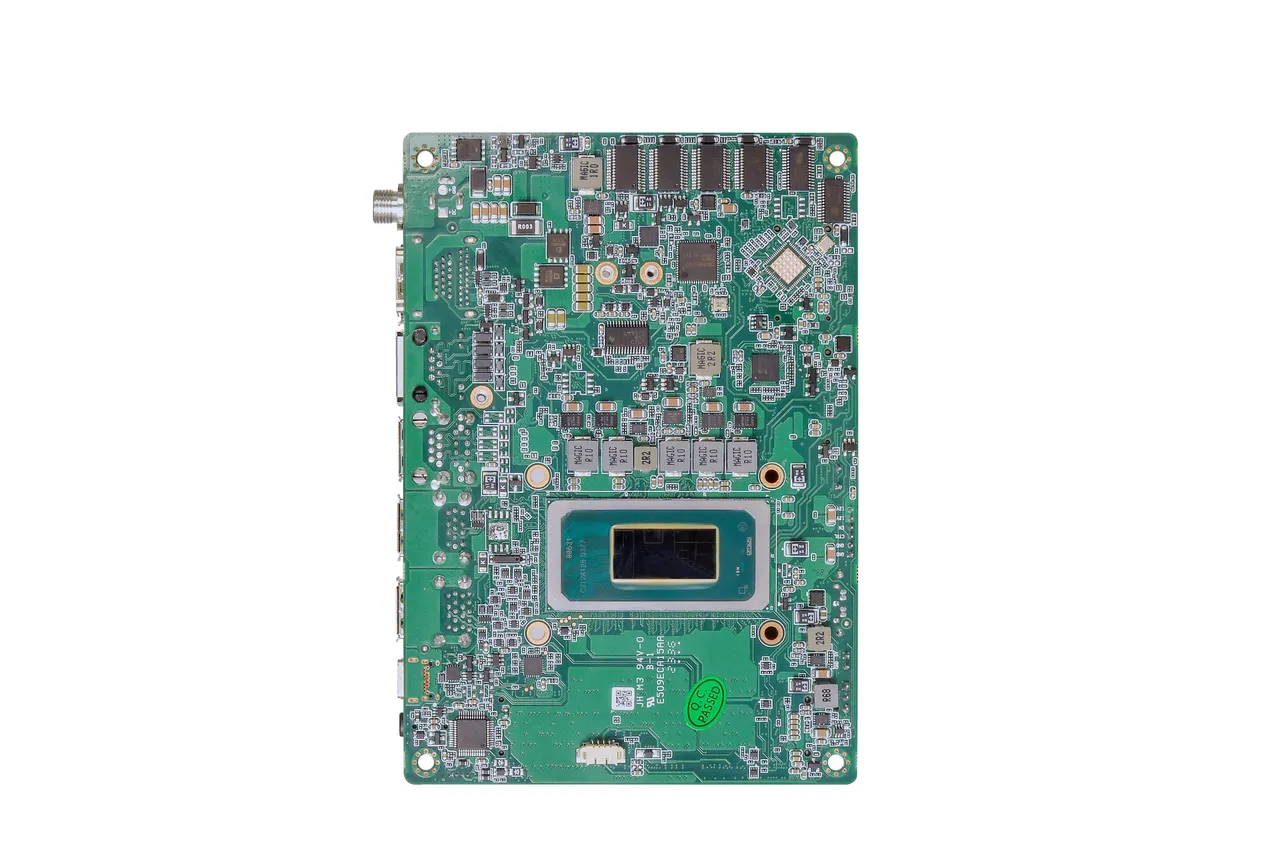

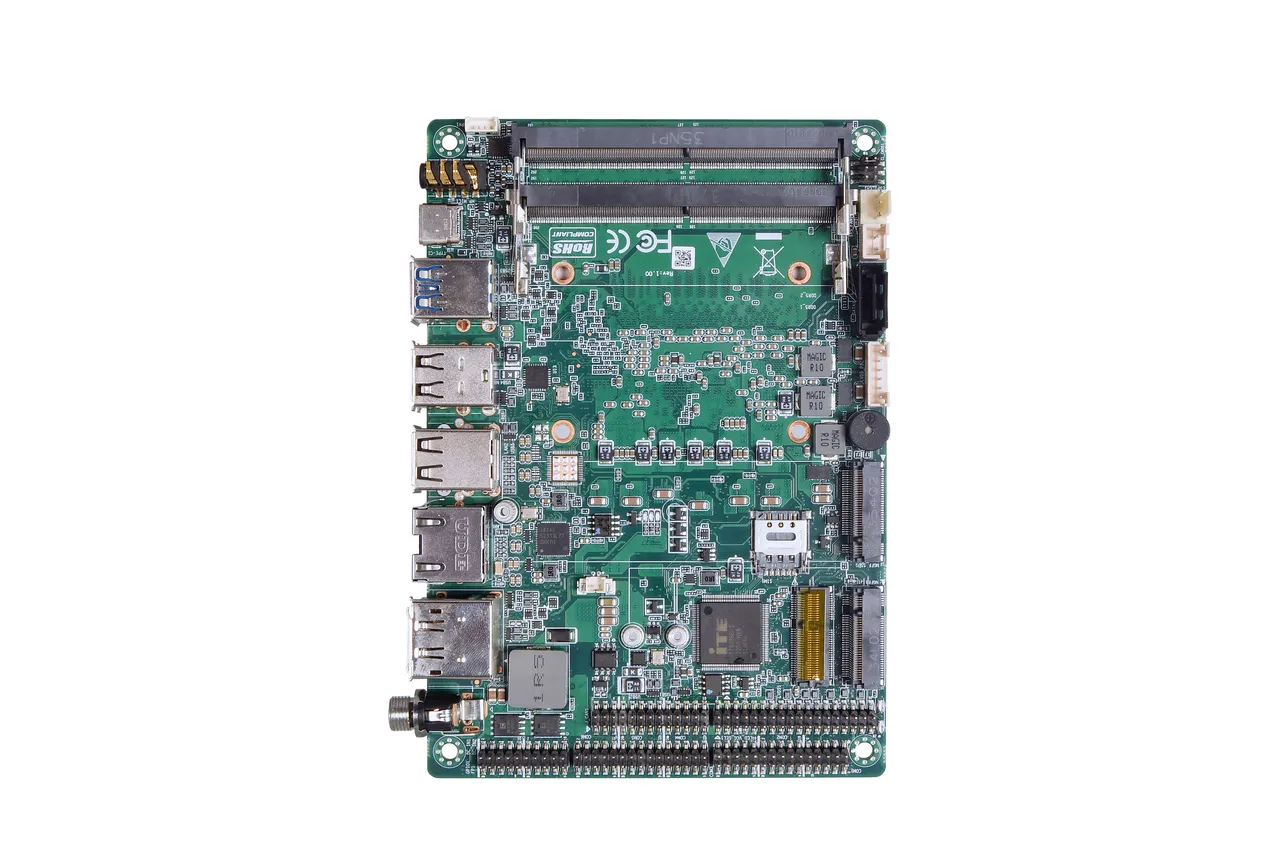

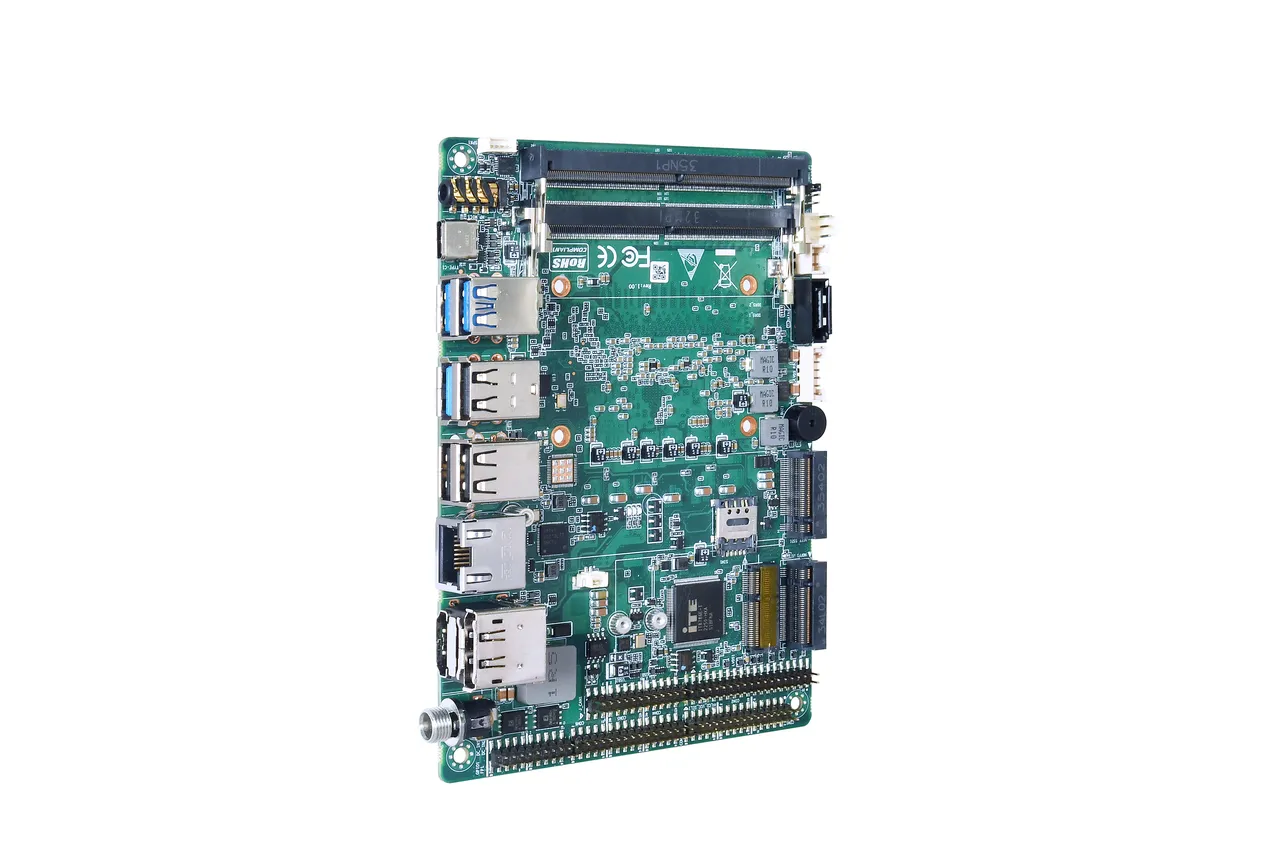

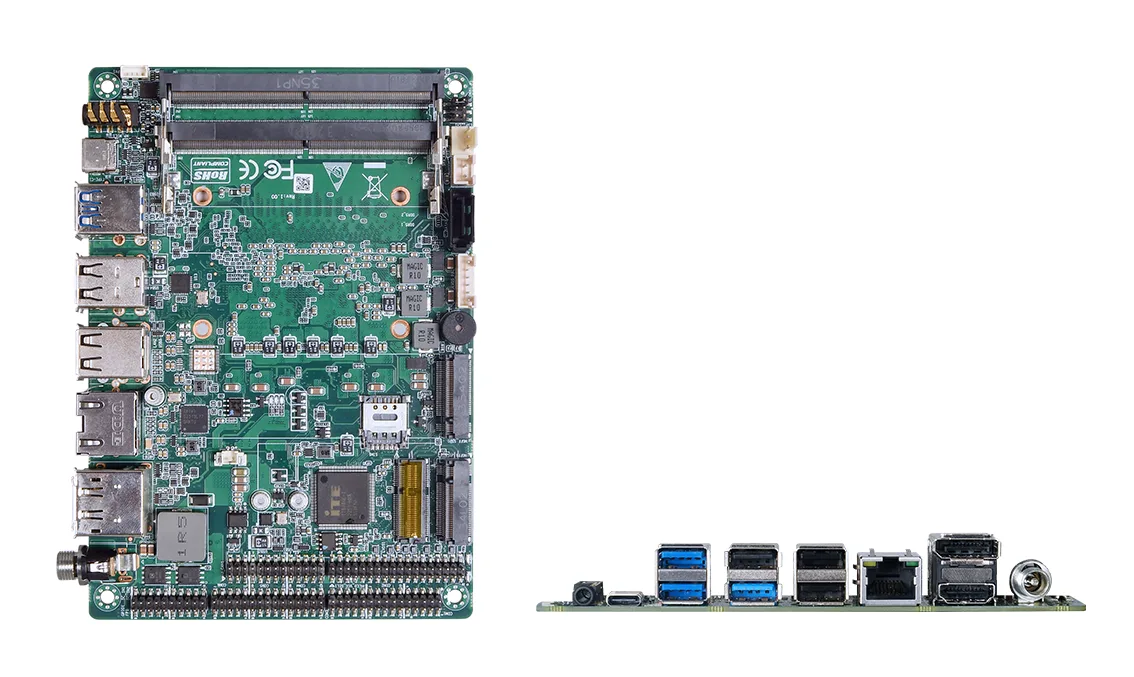

UT1003AW Industrial Motherboard

Onboard Core Ultra at 15 W or 28 W with 12 selectable SKUs, DP 2.1 plus HDMI 2.1, and an i226-LM controller with Intel AMT, the UT1003AW is the flagship of the 3.5-inch segment.

CPU: Onboard Core Ultra U/H · 15W/28W
Memory: 2× DDR5 SO-DIMM · 96GB
Display: HDMI 2.1 · DP 2.1 · Type-C 4K · LVDS/eDP
Network: 2× 2.5G i226-V + i226-LM · AMT
Power: DC 9–36V wide input
Temperature: −20/+60°C operating

Quote UT1003AW Full specifications

Sample MOQ 1 pc · reply within 24–48 h · FOB Shenzhen

Why UT1003AW

Four reasons to spec the UT1003AW

Management

AMT on the i226-LM

Intel AMT rides the second 2.5G controller, power-cycle, console and inventory control for unattended machines, out of band.

Platform

Core Ultra, 12 SKUs

From 125U at 15 W to 255H at 28 W, match performance to thermal budget without changing the board.

Display

DP 2.1 + HDMI 2.1

DP 2.1 and HDMI 2.1 out, Type-C at 4K, plus 24-bit LVDS or eDP for the panel, four display paths off one board.

Serial

Six COM, RS422 in BIOS

COM1/2 switch RS232/RS485/RS422 in BIOS; the rest RS232. CAN, GPIO and a SIM slot round out the machine interface.

Full specifications

Technical data

Per the UT1003AW English specification sheet, R100. Values can be verified against the datasheet on request.

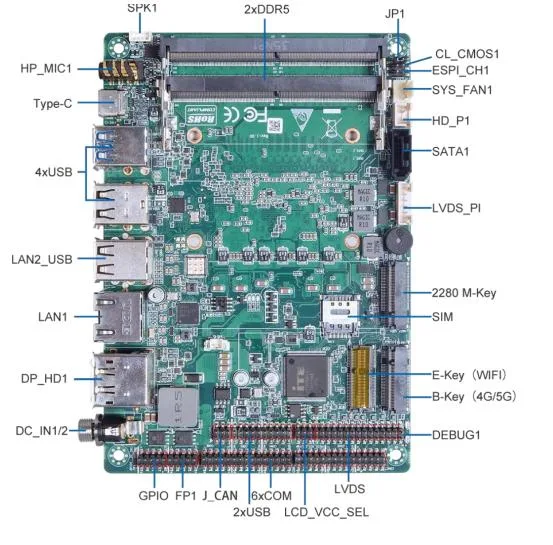

UT1003AW technical specifications
CPU	Onboard Intel Core Ultra-U/H series (U-15W / H-28W) · EFI BIOS · 12 SKUs: 135H / 125H / 125U / 165H / 165U / 155U / 155H / 185H / 225U / 255U / 225H / 255H
Memory	2× DDR5 SO-DIMM · up to 96 GB
Storage	1× M.2 M-Key 2280 (PCIe x4 NVMe) · 1× SATA 3.0 (7-pin, SATA power 5V 2-pin)
Display	1× HDMI 2.1 · 1× DP 2.1 · 1× Type-C (4K) · 24-bit LVDS (LVDS or eDP, one of two)
Network	2× RJ45 2.5G · Intel i226-V + Intel i226-LM · AMT supported · M.2 B-Key 4G/5G + SIM · M.2 E-Key WiFi
USB	3× USB 3.0 + 1× USB 2.0 (one port optional as 2× USB 2.0) · 2× 2×5-pin headers (4× USB 2.0)
Serial	6× COM · COM1/2 RS232/RS485/RS422 (BIOS, default RS232) · COM3–6 RS232
Expansion	1× M.2 B-Key (PCIe + USB 3.0, 4G/5G) · 1× SIM slot · 1× M.2 E-Key (PCIe + USB WiFi)
Other I/O	8-bit GPIO header · CAN 2×3-pin · SPK · F_Panel · CL_CMOS · AT/ATX · CPU smart fan + system fan
Security	TPM 2.0 chip optional (not fitted by default)
Power	DC 9–36V wide input
Dimensions	146 × 102 mm · 160 g without heatsink
Environment	−20°C to +60°C operating · −40°C to +85°C storage · 0–90% RH, non-condensing
Software	Windows 10 · Windows 11 · Linux

Need a port count that is not listed? Ask the engineer who owns the datasheet.

Ask about UT1003AW

Configuration

Ordering options

Options are configured at order time against the standard base board.

UT1003AW ordering options
Option	Standard	Optional
CPU SKU	135H · 125H · 125U · 165H · 165U · 155U · 155H · 185H · 225U · 255U · 225H · 255H
COM mode	COM1/2 RS232/RS485/RS422 selectable in BIOS (default RS232)
Panel output	24-bit LVDS or eDP (one of two)
Security	TPM 2.0 chip (not fitted by default)
