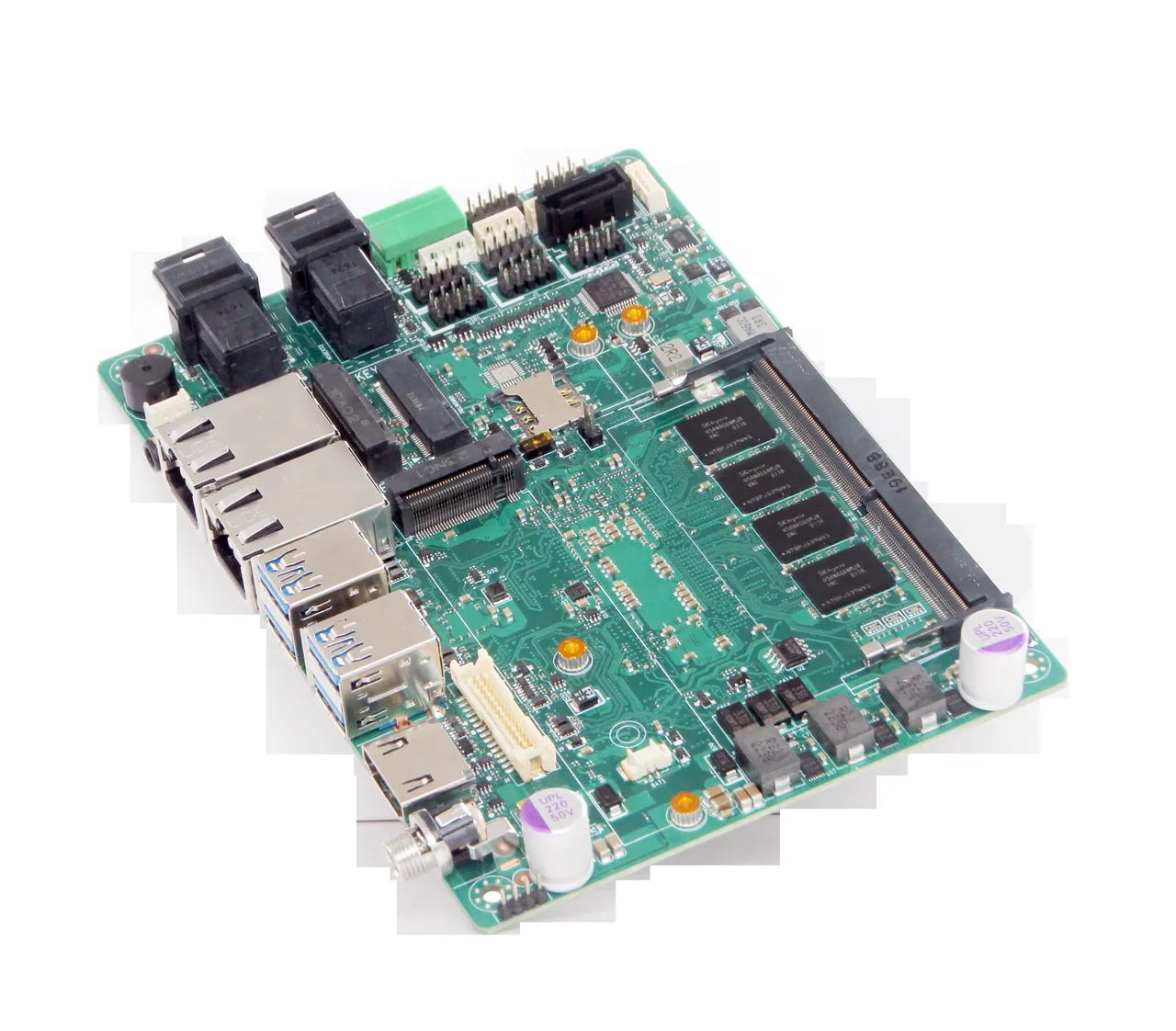

MSK-TL5003AW Industrial Motherboard

Onboard 11th Gen Tiger Lake-U, onboard memory plus a DDR4 SO-DIMM, dual 2.5G Intel LAN and two MSKEXT expansion ports, the MSK-TL5003AW is a fanless workhorse for factory robots and logistics lines.

CPU: Onboard Tiger Lake-U · 6305–i7-1165G7
Memory: Onboard 8/16GB + 1× DDR4 SO-DIMM 48GB
Display: HDMI 2.0 4K@60 · eDP
Network: 2× Intel 2.5G LAN
Power: DC 9–36V, 90W
Temperature: −20/+60°C operating

Quote MSK-TL5003AW Full specifications

Sample MOQ 1 pc · reply within 24–48 h · FOB Shenzhen

Why MSK-TL5003AW

The quiet strengths of a workhorse

Expansion

MSKEXT, two ports

Two MSKEXT interfaces expand to DP, USB 3.0/2.0, or M.2 E/B/M-Key modules, the I/O you need arrives without a board re-spin.

Memory

Onboard plus SO-DIMM

Up to 16 GB soldered plus one DDR4 SO-DIMM slot to 48 GB, mix reliability and density in the same 146×102 mm footprint.

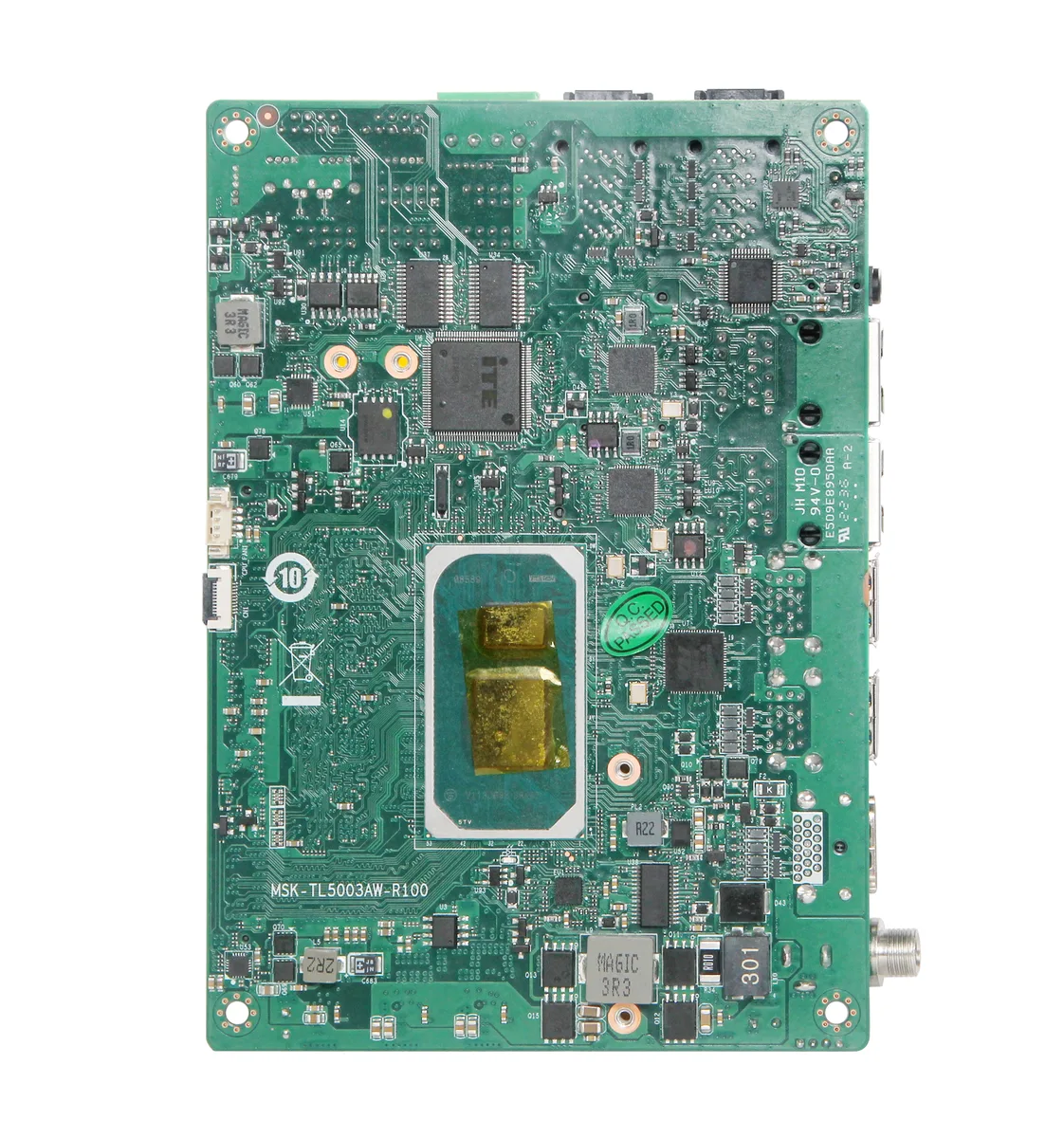

Platform

Tiger Lake-U onboard

Four 11th-gen SKUs from Celeron 6305 to i7-1165G7, selected at order, headroom for robot controllers and HMI, none of it socket-borne.

Field Power

12V 3A output

A dedicated 12 V/3 A output feeds small peripheral boards; the board itself runs on DC 9–36 V with 90 W headroom.

Full specifications

Technical data

Per the MSK-TL5003AW English specification sheet, R101. Values can be verified against the datasheet on request.

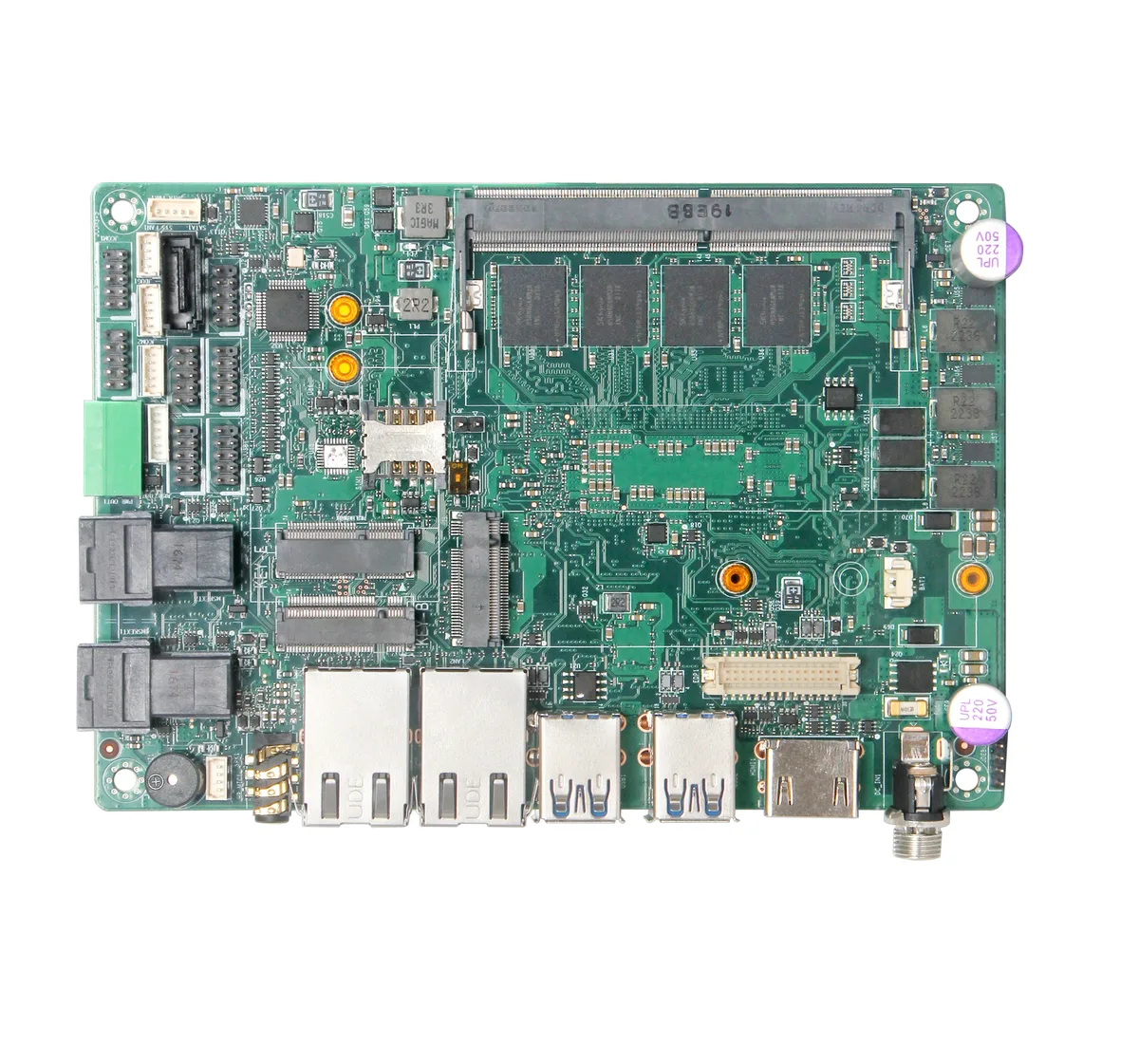

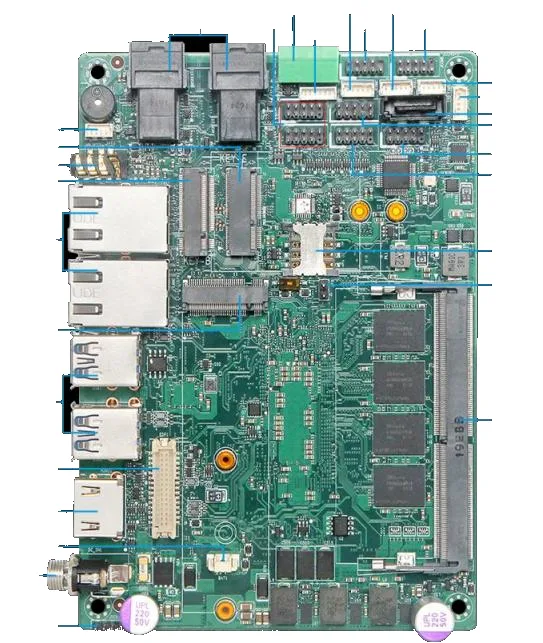

MSK-TL5003AW technical specifications
CPU	Onboard Intel 11th Gen Tiger Lake-U · Celeron 6305 / i3-1115G4 / i5-1135G7 / i7-1165G7 · EFI BIOS
Memory	Onboard memory chips up to 16 GB · 1× DDR4 SO-DIMM up to 48 GB
Storage	1× M.2 M-Key 2280 (NVMe PCIe 3.0 x4 default, SATA 3.0 optional) · 1× SATA 3.0
Display	1× HDMI 2.0 (4096×2160 @ 60 Hz) · eDP
Network	2× Intel 2.5G LAN · WiFi / 4G / 5G / Bluetooth expansion

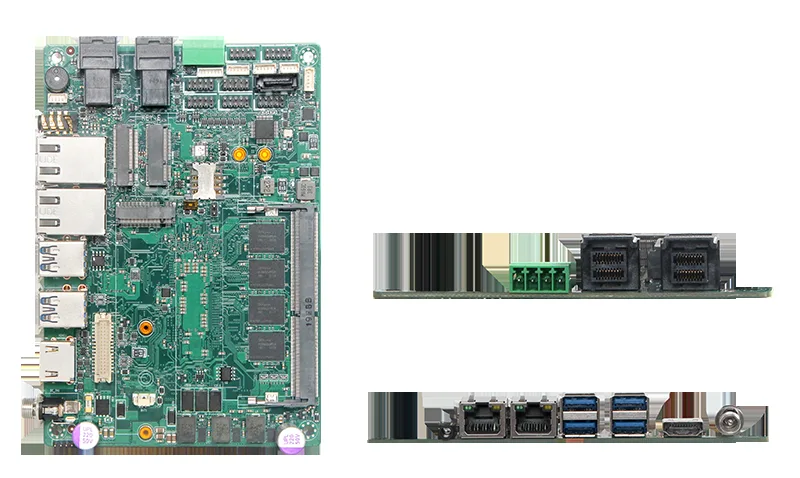

USB	4× USB 3.0 external · 2 groups of 4× USB 2.0 headers
Serial	5× COM headers · 1× CAN header
Expansion	2× MSKEXT interfaces (expandable to 1× DP / 1× USB 3.0 / 1× USB 2.0 / 1× E-Key / 1× B-Key / 1× M-Key)
Other I/O	8-bit GPIO header · power output 12 V / 3 A · 4-pin SYS fan
Security	TPM 2.0 optional (not fitted by default)
Power	DC 9–36V input · 90 W
Dimensions	146 × 102 mm · ~120 g without heatsink · fanless cooling
Environment	−20°C to +60°C operating · −40°C to +85°C storage · 0–90% RH, non-condensing
Software	Windows 10 · Windows 11 · Linux

Need a port count that is not listed? Ask the engineer who owns the datasheet.

Ask about MSK-TL5003AW

Configuration

Ordering options

Options are configured at order time against the standard base board.

MSK-TL5003AW ordering options
Option	Standard	Optional
CPU SKU	Celeron 6305 · i3-1115G4 · i5-1135G7 · i7-1165G7
Onboard memory	8 GB or 16 GB
MSKEXT mapping	1× DP · 1× USB 3.0 · 1× USB 2.0 · 1× E-Key · 1× B-Key · 1× M-Key
Security	TPM 2.0 (not fitted by default)
